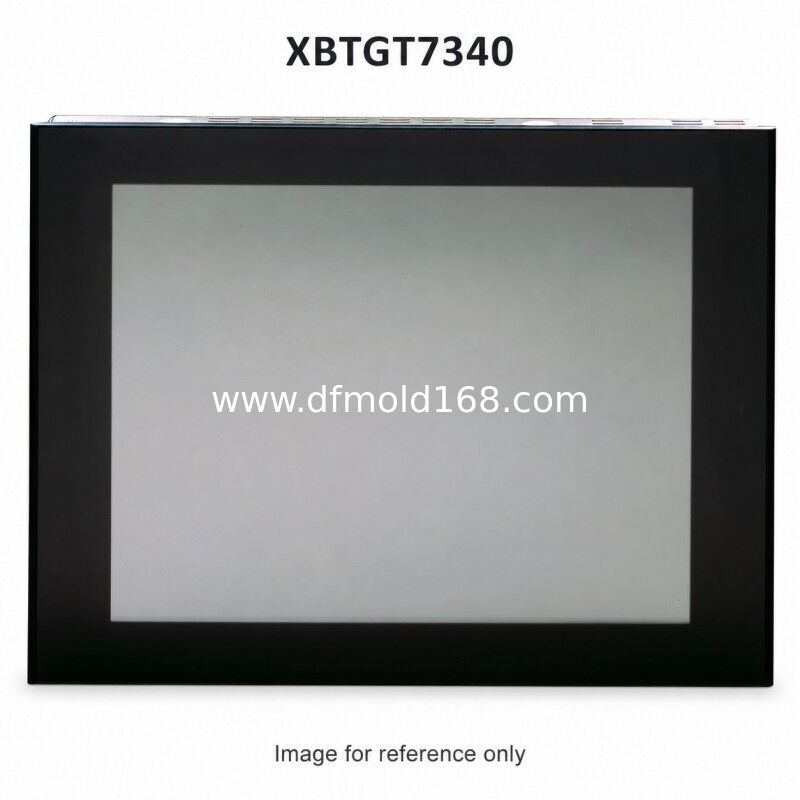

XBTGT7340 15in 1024x768 TFT Video Input HMI

Parameters

Product Description

XBTGT7340 is a 15-inch operator panel with a 1024 x 768 pixel color tft lcd display and a 24 VDC supply. It provides a configurable RS-232C/RS-422/RS-485 COM1 connection and a separate RS-485 COM2 connection. Ethernet is fitted for network communication with a supported controller driver. The video input is a distinguishing feature when the existing application includes a camera image. A configured application can show machine values and alarms and accept permitted operator settings. When buying a spare, compare the complete model and connector layout with the installed panel, preserve the project backup and check the display for readability and touch response.

Supply and Quotation

Request a quotation for XBTGT7340 with the quantity, destination and required arrival date. Send photographs of the installed front, rear connectors and model label when sourcing a spare. We will confirm the offered condition, hardware revision, included accessories, current availability and price validity in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the installed power supply, communications, cabinet opening and application. Preserve the project backup and check the engineering software and firmware versions. Have the machine integrator assess any project conversion, wiring changes or commissioning needed for an alternative reference.

FAQ

1. Which hardware revisions use LED backlighting?
   The manufacturer guide specifies LED backlighting for RL 09 and later, and CFL backlighting for RL 08 and earlier. Confirm the offered revision instead of assuming every 15-inch unit has the same backlight.
2. Does this reference include a video input?
   Yes. A video input is fitted. Confirm the source format, cable and configured project; it is not an HDMI monitor input.
3. What should be checked when changing the display size?
   This reference uses a 15-inch 1024 x 768 pixel display. Verify the cabinet opening, rear clearance and project resolution against the exact model drawing. Screen diagonal alone is insufficient.
4. How do I request a price for XBTGT7340?
   Send the full reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Current price and availability are confirmed for the specific offered unit.
5. Will my machine program already be installed?
   Do not assume the offered hardware contains your application. Confirm access to the project backup, passwords and required software before purchase. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
