HMIET6401 7 Inch Dual Serial Touch HMI 800x480

Parameters

Product Description

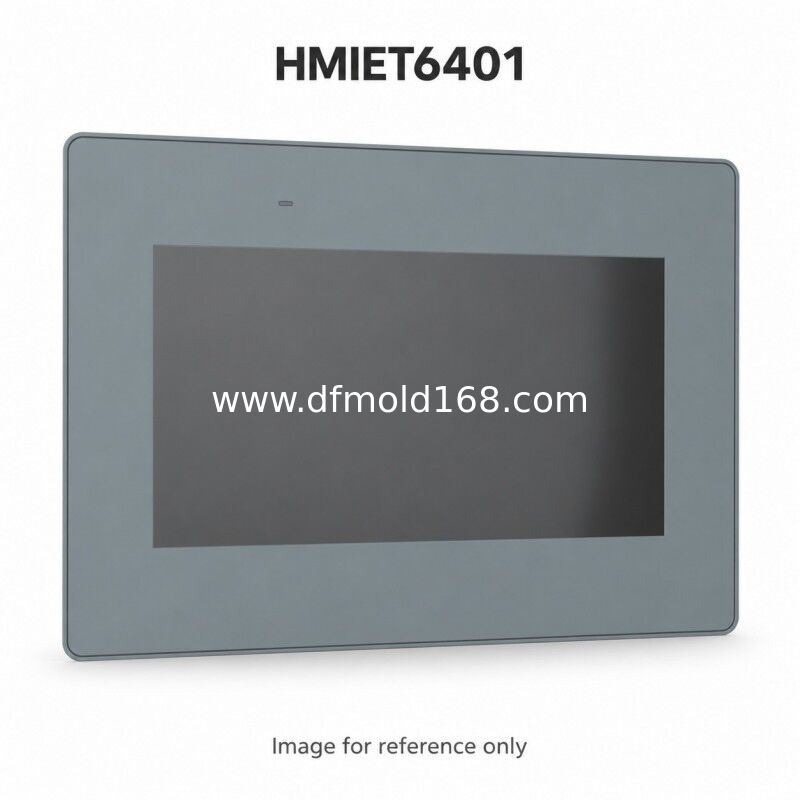

HMIET6401 is a 7-inch operator panel with a 800 x 480-pixel TFT display and resistive touch input. The 16-million-color screen supports clear separation of machine status, settings and process graphics within a configured application. Its two serial interfaces provide RS-232C and RS-422/485 connections for compatible controllers. This version has no Ethernet or USB Type A host, so it should be selected for installations that use serial communication and USB device transfer. When sourcing a replacement, compare the complete reference, installed project, cabinet opening and connection layout. The screen size alone does not establish interchangeability with another panel.

Supply and Quotation

Request a quotation for HMIET6401 with the quantity, destination and required arrival date. Send photographs of the installed front, rear connectors and model label when sourcing a spare. We will confirm the offered condition, hardware revision, included accessories, current availability and price validity in the quotation. Software licenses and machine programs are included only when expressly stated.

Compatibility

Match the full model to the installed power supply, communications, cabinet opening and application. Preserve the project backup and check the engineering software and firmware versions. Have the machine integrator assess any project conversion, wiring changes or commissioning needed for an alternative reference.

FAQ

1. Which controller connections are available?
   COM1 provides RS-232C and COM2 provides RS-422/485. There is no built-in Ethernet port. Confirm the controller protocol and wiring.
2. Can a USB memory stick connect directly?
   There is no Type A host port. The Micro-B device port is not a direct USB memory-stick connection.
3. What screen and power supply does this model use?
   It has a 7-inch TFT screen with 800 x 480 pixels and 16 million colors. Rated power input is 24 V DC, within a 19.2 to 28.8 V DC operating range.
4. How do I request a price for HMIET6401?
   Send the full reference, quantity, preferred condition and delivery destination. Include label photos and any deadline. Current price and availability are confirmed for the specific offered unit.
5. Will my machine program already be installed?
   Do not assume the offered hardware contains your application. Confirm access to the project backup, passwords and required software before purchase. Agree any transfer or commissioning work separately.
6. What should be confirmed before shipment?
   Request matching model-label and connector photos, the accessory list and an agreed inspection scope. Confirm packaging, dispatch timing, delivery terms and warranty in the quotation.
