Allen Bradley 1756-IF16 ControlLogix Analog Input Module Receives and Processes Current and Voltage Signals

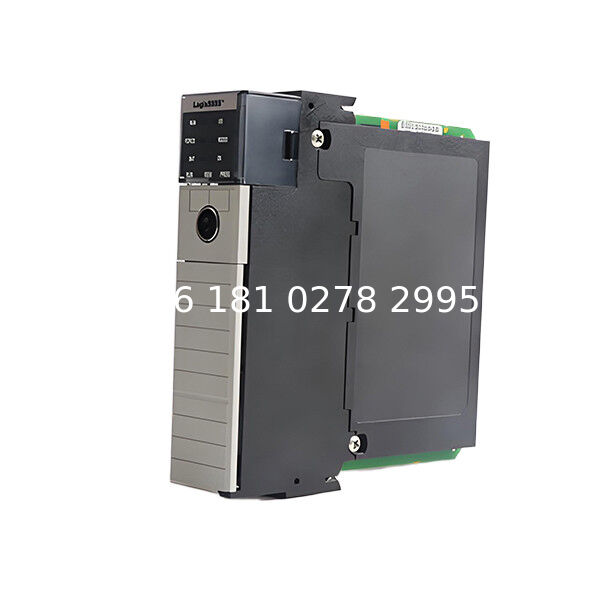

Allen Bradley's 1756-IF16 is a powerful ControlLogix analog input module designed specifically for receiving and processing current and voltage signals. The following are the detailed features and application scenarios of this module:

1, Signal reception capability

Signal type: The 1756-IF16 module can accept various current and voltage signals, including 10V, 0-10V, 0-5V, and 0-20 mA.
Signal wiring configuration: Supports three wiring configurations, namely single ended, differential, and high-speed differential distribution lines.

2, Wiring configuration and number of channels

Single ended wiring: the most sensitive to noise and needs to be used together with a common ground signal. Under this configuration, the module becomes a 16 channel analog input module.
Differential distribution line: improves noise sensitivity and is suitable for environments that require enhanced immunity. Under this configuration, the module is simplified to an 8-channel analog input module.
High speed differential distribution line: used for systems that require rapid updates of input data. Under this configuration, the module becomes a 4-channel analog input module.

3, Resolution and accuracy

Resolution: The resolution of the module varies depending on the input range and configuration. For example, in the input range of 10.25V, the resolution is 320V/count (15 bits+sign bipolar); When the input range is 0-10.25V, the resolution is 160V/count (16 bits), etc.
Accuracy: Calibration accuracy is better than 0.05% of the voltage input range and 0.15% of the current input range.

4, Scanning time and data format

Scanning time: The scanning time may vary depending on the wiring configuration. For example, the scanning time for a single ended configuration is 16-488 ms; The difference distribution line is 8-244 ms; The high-speed differential distribution line is 5-122 ms.
Data format: The converted data is stored in integer mode (left aligned, 2-s complement) IEEE 32-bit floating-point data format.

5, Application scenarios and precautions

Single ended wiring: suitable for situations where all input devices are connected to a common ground.
Differential distribution line: suitable for environments without common grounding or where there may be separate signal pairs, as well as situations where anti-interference needs to be improved. Note that channels in differential mode are not completely isolated from each other, and if multiple differential input signals have different voltage common references, they may affect each other. At this point, the input should be connected to different modules or replaced with isolated input modules instead of non isolated modules.
High speed mode difference distribution line: suitable for systems that require the fastest data updates. However, it should be noted that only one out of every four channels on the module can be used.

6, Power consumption and heat dissipation

Power consumption: The power consumption of the module is 2.3 watts, and the total power of the backplane is 2.33 watts.
Thermal dissipation: The thermal dissipation of voltage is 7.84 BTU/hour, and the thermal dissipation of current is 13.3 BTU/hour.

7, Other parameters

Maximum overvoltage protection: 30V DC (voltage) and 8V DC (current).
Input Range Limitations: The input current range is from 4 to 20 milliamps, the input voltage range is from -10 to 10 volts, and is limited to 100 volt amperes.

In summary, the Allen Bradley 1756-IF16 analog input module has become an excellent product in the field of industrial automation due to its powerful signal reception capability, flexible wiring configuration, high-precision resolution, and wide range of application scenarios.
