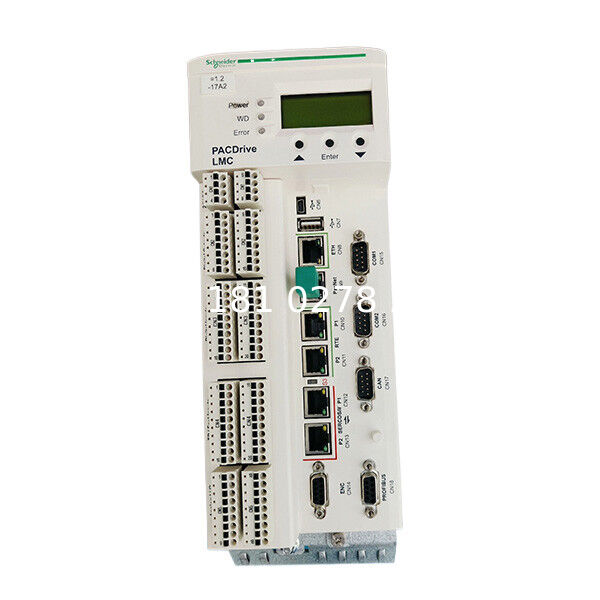

The Schneider Electric LMC402CAA10000 is a PacDrive 3 LMC402 motion controller used for multi-axis machine automation. It belongs to the LMC Pro / LMC Pro2 motion controller family and is designed for applications that require synchronized motion, logic control, machine coordination, and high-performance automation control in one controller platform.

This model is a 16-axis LMC402 motion controller and is supplied as an accessory kit / basic configuration. It uses a 24V DC supply voltage and has a power consumption of 36W. The controller provides 20 digital inputs, including interrupt and touch probe input functions, 16 digital outputs, 2 analog outputs, and support for up to 2 I/O expansion modules. It is designed for IP20 control cabinet installation.

The LMC402CAA10000 supports several industrial communication interfaces used in PacDrive 3 machine systems. These include Sercos for motion control, CANopen, Profibus DP, real-time Ethernet, PacNet, Ethernet, USB, RS232, RS422/RS485, and a master encoder port. These interfaces make it suitable for machines that need coordinated servo axes, distributed I/O, encoder feedback, HMI communication, and system-level control.

This controller is commonly used in packaging machinery, cartoning machines, filling machines, labeling machines, printing machinery, material handling systems, assembly automation, robotics-related production equipment, synchronized conveyor systems, and other multi-axis automation systems using Schneider Electric PacDrive 3 architecture.

For replacement applications, the complete model number LMC402CAA10000 must be checked carefully. Similar LMC controllers may differ by axis capacity, software license, firmware version, communication interface, hardware configuration, memory, expansion capability, and machine program compatibility. Please do not replace the controller only by appearance or by the LMC402 family name.

Before ordering, please confirm the original controller label, machine program backup, firmware version, SD/CF memory card requirement, Sercos system configuration, connected servo drives, I/O modules, fieldbus devices, HMI communication, encoder connection, and cabinet wiring. Clear photos of the controller label, cabinet wiring, communication ports, memory card, and machine alarm information can help confirm compatibility and reduce replacement risk.

Dengfeng supplies Schneider Electric PacDrive 3 motion controllers, LMC controllers, Lexium 62 servo drives, Lexium 62 ILM integrated servo motors, connection modules, power supply modules, PLC modules, HMI panels, cables, sensors, industrial control boards, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, housing condition, port condition, connector condition, memory card area, and packaging according to your request.

Key Features

• Schneider Electric LMC402CAA10000 PacDrive 3 motion controller
• LMC402 controller with 16-axis motion control capacity
• Part of the LMC Pro / LMC Pro2 controller family
• 24V DC rated supply voltage
• 36W power consumption
• 20 digital inputs and 16 digital outputs
• 2 analog outputs
• 4 interrupt inputs and 16 touch probe inputs
• Supports up to 2 I/O expansion modules
• 256kB NVRAM and 1GB RAM DDR3L memory
• Sercos motion bus for PacDrive 3 systems
• CANopen, Profibus DP, RT-Ethernet, PacNet, Ethernet, USB and serial interfaces
• IP20 control cabinet installation
• Suitable for machine repair, controller replacement, retrofit and spare parts supply

Typical Applications

The Schneider Electric LMC402CAA10000 motion controller can be used in:

• PacDrive 3 automation systems
• Multi-axis motion control systems
• Packaging machinery
• Cartoning and filling machines
• Labeling machines
• Printing machinery
• Synchronized conveyor systems
• Material handling equipment
• Assembly automation
• Robotic production equipment
• Servo drive coordination systems
• Machine retrofit projects
• Control cabinet replacement
• Factory maintenance spare parts

FAQ

Q1: What is Schneider Electric LMC402CAA10000?
A1: It is a PacDrive 3 LMC402 motion controller used for multi-axis machine automation and synchronized servo motion control.

Q2: Is LMC402CAA10000 a servo drive or servo motor?
A2: No. It is not a servo drive or servo motor. It is a motion controller / machine controller used to coordinate logic control, motion control, communication, and machine automation functions.

Q3: How many axes can LMC402CAA10000 control?
A3: The LMC402 controller is designed for 16-axis motion control.

Q4: What supply voltage does this controller use?
A4: It uses 24V DC supply voltage.

Q5: What is the power consumption of LMC402CAA10000?
A5: The power consumption is 36W.

Q6: What I/O does this controller provide?
A6: It provides 20 digital inputs, 16 digital outputs, and 2 analog outputs. It also supports interrupt input and touch probe input functions.

Q7: What communication interfaces are supported?
A7: The controller supports Sercos, CANopen, Profibus DP, real-time Ethernet, PacNet, Ethernet, USB, RS232, RS422/RS485, and a master encoder port, depending on the system configuration.

Q8: What protection rating does LMC402CAA10000 have?
A8: It has an IP20 protection rating and is intended for control cabinet installation.

Q9: Can LMC402CAA10000 replace another LMC402 controller?
A9: It can replace the same model when the hardware configuration, firmware, machine program, axis configuration, fieldbus settings, memory card, and connected devices are compatible.

Q10: Can this controller replace LMC300 or LMC600 controllers?
A10: It should not be replaced only by appearance or product family. LMC300, LMC400, LMC600, and LMC800 controllers may have different axis capacity, hardware interfaces, software configuration, and machine program requirements.

Q11: What should I check before ordering?
A11: Please check the original controller label, full model number, firmware version, program backup, memory card, Sercos configuration, connected servo drives, I/O modules, fieldbus devices, and machine wiring before ordering.

Q12: Can you help confirm compatibility?
A12: Yes. Please send photos of the original controller label, communication ports, cabinet wiring, connected drives, memory card area, and alarm information. We can help check whether LMC402CAA10000 matches your replacement requirement.
