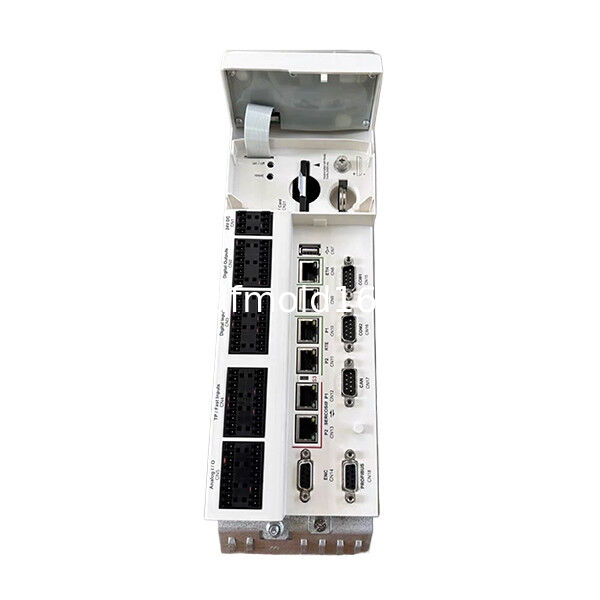

The PacDrive 3 LMC600CAA10000 is a high-axis-count motion controller for synchronized machine automation systems.
This model supports up to 99 motion axes and is intended for machinery that combines coordinated servo motion, distributed I/O, encoder feedback, production synchronization, and network communication within one controller platform.
The controller includes digital, interrupt, and touch-probe input channels for machine signals that require standard status monitoring, time-sensitive event handling, or registration-mark detection. It also provides digital and analog outputs for machine control functions.
Its integrated communication interfaces support Sercos, RT Ethernet, standard Ethernet, CANopen, Profibus DP, RS232, RS422, RS485, USB, and master encoder connection. These interfaces should be matched carefully with the original machine network and installed peripheral hardware.
This product is a PacDrive 3 motion controller for legacy machine systems. It should not be described as a servo drive, servo motor, frequency inverter, power supply module, HMI panel, or standalone remote I/O module.
Key Features
Motion controller for up to 99 axes
24 VDC operating supply
1 GB DDR3L RAM
256 kB NVRAM
Twenty digital inputs
Four interrupt inputs
Sixteen touch-probe inputs
Sixteen digital outputs
Two analog inputs
Two analog outputs
Sercos communication interfaces
RT Ethernet communication interfaces
CANopen communication port
Profibus DP communication port
RS232 and RS422 RS485 serial ports
USB Type A interface
Master encoder interface
Support for two I/O expansion modules
Typical Applications
Packaging machinery
Cartoning and case-packing machines
Printing and converting equipment
Labeling machines
Robotic handling systems
Assembly automation equipment
High-speed registration systems
Multi-axis production lines
Legacy PacDrive machine retrofit projects
Installation Notes
Confirm that the original controller model is LMC600CAA10000 before replacement.
Back up the existing controller program, motion settings, communication configuration, axis parameters, encoder settings, and network addresses before removal.
Check all connected interfaces before installation, including Sercos, RT Ethernet, CANopen, Profibus DP, serial communication, touch-probe wiring, encoder wiring, and I/O expansion modules.
This controller is intended for cabinet installation. Maintain proper grounding, shielding, ventilation, wiring separation, and the original electrical enclosure arrangement.
Because this is a legacy PacDrive 3 controller, verify software compatibility and existing machine project files before commissioning.
FAQ
Q
What type of product is LMC600CAA10000
A
It is a PacDrive 3 motion controller for synchronized multi-axis automation systems
Q
How many motion axes can it support
A
It supports up to 99 motion axes
Q
What power supply does it require
A
It operates from a 24 VDC power supply with current consumption below 1 A
Q
Does it include Sercos communication
A
Yes it includes two RJ45 interfaces for Sercos communication
Q
Does it support Profibus DP
A
Yes it includes one SUB-D 9 interface for Profibus DP communication
Q
How many digital outputs are available
A
It includes 16 digital outputs rated at 250 mA per output
Q
Is this product a servo drive
A
No it is a motion controller and requires separate compatible servo drives for motor control
