The Schneider Electric Altivar Process ATV930U22M3 Intelligent Drive for Sophisticated Fan Control

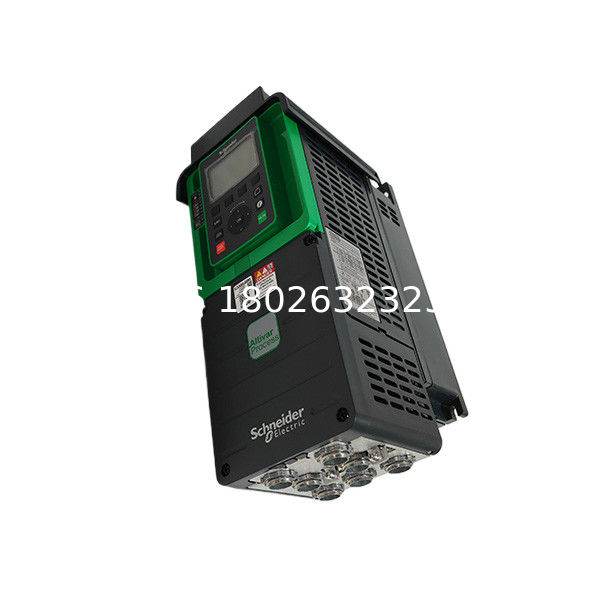

Schneider Electric ATV930U22M3 Variable Speed Drive

The Schneider Electric Altivar Process ATV930U22M3 represents a sophisticated solution within the premium segment of variable speed drives (VSDs), specifically engineered for demanding process applications requiring high performance, advanced control, and robust integration capabilities. As part of the renowned Altivar Process 900 series, this 2.2kW model operating on 200-240V single-phase or three-phase input power stands out for its intelligence, flexibility, and focus on optimizing complex industrial processes.

Core Identity and Target Applications:
The ATV930 series transcends basic motor control. It is designed as an intelligent drive system for critical applications where precision, reliability, and process optimization are paramount. The ATV930U22M3 (2.2kW / 3HP) is particularly well-suited for:

1. Complex Pumping Systems: Multi-pump control, pressure and flow regulation (PID), leak detection, dry run protection, advanced sequencing.

2. Sophisticated Fan Control: Building Management Systems (BMS), HVAC, industrial ventilation requiring precise airflow management and energy optimization.

3. Conveying and Material Handling: Speed synchronization, tension control (using built-in PID and dedicated functions), high-inertia load starting.

4. Mixers & Agitators: Torque control, speed regulation under variable load conditions, overload prevention.

5. Other Process-Intensive Machinery: Where precise speed/torque regulation, safety integration, and data exchange are critical.

Key Technical Specifications and Features (ATV930U22M3):

In-Depth Feature Exploration:

1. "Process Intelligence" Core: The ATV930's defining characteristic is its embedded intelligence tailored for process optimization. Beyond simple speed control, it incorporates algorithms specifically designed for pumps and fans. This includes advanced PID controllers (with multiple loops and setpoints), automatic adaptation to varying system characteristics, anti-jam functions to detect blockages, dry-run protection for pumps, and sophisticated energy-saving modes that dynamically adjust operation based on actual demand (e.g., minimizing pump pressure headroom). The multi-motor control capability allows one drive to sequentially start and stop up to 4 motors, ideal for pump alternation schemes.

2. Integrated Braking (Brake Chopper): The presence of the built-in brake chopper (indicated by the "M3" suffix) is crucial for applications involving:

   • Rapid deceleration (faster than the drive's natural regenerative capability allows).

   • Overhauling loads (where the load drives the motor, acting like a generator - e.g., downhill conveyors, cranes lowering loads).

   • High inertia loads.
     Without this feature or an external braking unit, the regenerative energy generated in these situations would cause the DC bus voltage to rise uncontrollably, tripping the drive on an overvoltage fault. The ATV930U22M3's chopper safely routes this excess energy to an externally connected braking resistor, where it is dissipated as heat. Selecting the correct resistor (Ohmic value and power rating) is essential for reliable operation.

3. Sensorless Vector Control (SVC): This advanced control technique allows the drive to:

   • Deliver very high starting torque at low speeds (e.g., 200% of motor rated torque at 0 Hz), essential for starting conveyors with heavy loads or mixers with high viscosity.

   • Maintain precise speed control (±0.2% of maximum speed) even as the load changes significantly, ensuring consistent process quality.

   • Provide excellent dynamic response to sudden load variations.
     Achieving this performance without requiring a costly and potentially fragile feedback encoder on the motor shaft is a major advantage, reducing complexity and maintenance.

4. Native Industrial Ethernet & EcoStruxure Compatibility: The embedded Ethernet ports (supporting Modbus TCP, Ethernet/IP, or PROFINET) are not an afterthought; they are fundamental to the drive's design philosophy. This enables:

   • Seamless Integration: Direct connection to PLCs, SCADA systems, and Distributed Control Systems (DCS) using standard industrial protocols.

   • Remote Access & Monitoring: Real-time access to drive parameters, status, alarms, and energy consumption data from anywhere on the network or via cloud platforms like Schneider's EcoStruxure Machine Advisor or Plant Advisor.

   • Predictive Maintenance: Monitoring key parameters (heat sink temp, operating hours, load profile, number of overloads) helps anticipate potential failures before they cause downtime.

   • Centralized Management: Simplified commissioning, configuration backup/restore, and fleet management across multiple drives.

5. Embedded Safety (STO - SIL3/PL e): The integrated Safe Torque Off function provides a safety-rated disconnect of the drive's power semiconductors. This ensures the motor cannot produce torque, even if a run command is present or a fault occurs within the drive's standard control circuitry. Meeting Safety Integrity Level 3 (SIL3) and Performance Level 'e' (PL e) according to IEC 61508 and ISO 13849-1 makes it suitable for high-risk applications, reducing the need for complex external safety relay circuits.

6. Robust Construction & Protection (IP21): While IP21 indicates protection against limited moisture (dripping water) and solid objects (finger-safe), it emphasizes the drive's industrial pedigree. The design prioritizes electrical safety, thermal management, and resilience against typical industrial environments like electrical rooms or machinery enclosures. Convection cooling ensures silent and reliable operation. The drive is built to withstand voltage fluctuations (±10%) and common electrical disturbances.

Conclusion:

The Schneider Electric Altivar Process ATV930U22M3 is far more than a simple 2.2kW motor controller. It is a powerful, intelligent drive system engineered for demanding process applications where precision control, energy efficiency, operational safety (STO), seamless integration via industrial Ethernet, and the ability to handle dynamic loads (enabled by its integrated brake chopper) are critical. Its application-specific intelligence for pumps and fans, combined with robust construction meeting IP21 standards, makes it an outstanding choice for engineers and system integrators seeking to optimize performance, reduce energy costs, enhance safety, and leverage data for improved operational insights in complex industrial and commercial settings. Its position within the Altivar Process 900 series signifies a commitment to tackling the challenges of modern, connected process automation.
