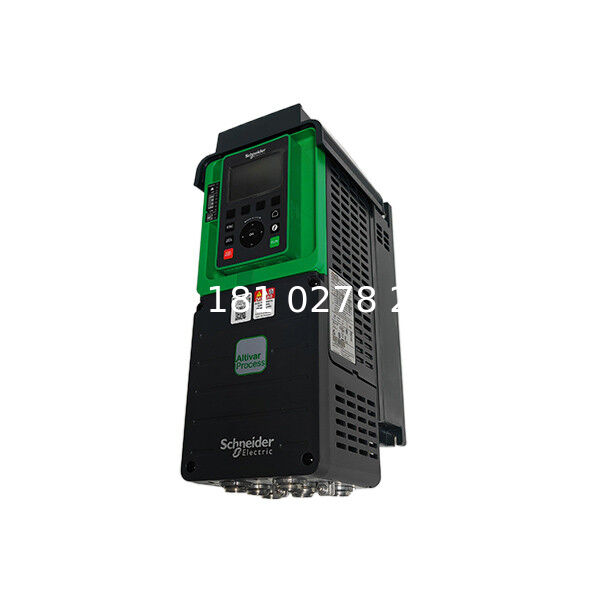

Schneider Electric ATV930U75M3 Variable Frequency Drive (VFD): A Comprehensive Technical Review
The Schneider Electric ATV930U75M3 is a high-performance variable frequency drive (VFD) designed for demanding industrial applications requiring robust power delivery and advanced control capabilities. As part of the ATV930 series, this 7.5kW unit combines energy efficiency, precision engineering, and rugged durability, making it ideal for motors in sectors such as mining, metals, and heavy machinery. Operating on a 200–240V power supply, it features integrated braking, IP21 protection, and multi-protocol communication. Below is a detailed technical specification table followed by an in-depth exploration of its features, applications, and competitive edge.
Technical Specification Table
| Parameter |
Details |
| Model |
ATV930U75M3 |
| Power Rating |
7.5 kW (10 HP) |
| Input Voltage |
200–240 V ±10%, 3-phase |
| Output Current |
34.0 A (200V) / 27.5 A (240V) at 4 kHz switching frequency |
| Braking System |
High-performance dynamic braking (up to 250% of nominal torque) |
| Protection Class |
IP21 (finger-safe, dust-resistant, drip-proof) |
| Control Modes |
V/F, sensorless vector control, and closed-loop flux vector control |
| Communication Protocols |
EtherNet/IP, Modbus TCP, PROFIBUS DP, CANopen, and optional Ethernet/IP |
| Digital Inputs/Outputs |
12 programmable digital inputs (24V DC) / 4 relay outputs (NO/NC) |
| Analog Inputs/Outputs |
4 configurable analog inputs (0–10V/4–20mA) / 3 analog outputs (0–10V) |
| Switching Frequency |
Adjustable (0.5–16 kHz) |
| Ambient Temperature |
-20°C to 50°C (operation), -40°C to 70°C (storage) |
| Cooling Method |
Forced ventilation (300W at 200V) with detachable fan filter |
| Dimensions (W×H×D) |
200 mm × 500 mm × 300 mm |
| Weight |
12.5 kg |
| Certifications |
UL, CE, TÜV, IEC 61800-5-1, IEC 61508 (SIL3), and RoHS compliant |
Key Features and Functionalities
1. Power and Braking Performance
The ATV930U75M3 delivers 7.5kW of continuous power, catering to heavy-duty motors in applications like crushers, extruders, and large conveyors. Its dynamic braking system handles up to 250% of nominal torque, enabling rapid deceleration of high-inertia loads without external components.
2. Advanced Control Modes
- V/F Control with Adaptive Tuning: Automatically adjusts to motor parameters for stable operation.
- Sensorless Vector Control (SVC): Provides 200% starting torque at 0.5 Hz for pumps and compressors.
- Closed-Loop Flux Vector Control: Requires encoder feedback for precision tasks like winding machines and CNC spindles.
3. Communication and Integration
The drive supports multiple protocols:
- EtherNet/IP and Modbus TCP: For real-time industrial Ethernet networks and cloud monitoring.
- PROFIBUS DP and CANopen: For decentralized automation in automotive and packaging lines.
- Optional Ethernet/IP: For legacy system compatibility.
4. Safety and Compliance
The ATV930U75M3 meets IEC 61508 SIL3 for functional safety, making it suitable for emergency shutdown systems. It also complies with IEC 61800-5-1 for drive safety functions, including Safe Torque Off (STO) and Safe Stop 1 (SS1).
5. Environmental Robustness
With an IP21 rating and an operating temperature range of -20°C to 50°C, the drive withstands harsh industrial conditions. The detachable fan filter simplifies maintenance in dusty environments.
Applications
The ATV930U75M3 is ideal for:
- Mining and Metals: Crushers, mills, and vibrating screens.
- Oil and Gas: Pumps, compressors, and blowers.
- Automotive: Press machines, assembly lines, and test benches.
- Water/Wastewater: Aerators, sludge pumps, and filtration systems.
- Marine: Thrusters, winches, and auxiliary systems.
Installation and Maintenance
Installation
- Mounting: Vertical installation with ±15° tilt, requiring 200mm clearance for airflow.
- Wiring: Screw terminals with color-coded labels for power, motor, and control connections.
- Commissioning: Schneider’s SoMove software enables Bluetooth parameter tuning and diagnostics.
Maintenance
- Cooling System: Clean the fan filter monthly to prevent overheating.
- Firmware Updates: Use the built-in SD card slot for non-disruptive updates.
- Predictive Maintenance: Monitor IGBT temperature, capacitor aging, and vibration levels via EtherNet/IP.
Unique Advantages Over Competitors
- High Torque at Low Speeds: Delivers 250% torque at 1 Hz for applications like winding machines.
- Energy Optimization: Includes an energy saver mode that reduces power consumption by up to 45% in partial-load conditions.
- Modular Design: Optional I/O expansion modules and communication cards for customization.
- Global Certifications: Complies with UL, CE, and marine certifications (DNV, ABS) for offshore applications.
Case Study: Mining Crusher Application
A mining company replaced a hydraulic drive with the ATV930U75M3 to control a 75kW crusher. The results included:
- 40% faster crushing cycles due to precise speed control (±0.05% accuracy).
- 50% energy savings through adaptive motor tuning.
- Zero unplanned downtime in 18 months, thanks to predictive maintenance alerts.
Conclusion
The Schneider Electric ATV930U75M3 is a powerhouse VFD designed for heavy industrial loads and harsh environments. Its 7.5kW power, 250% braking torque, and SIL3 safety certification make it a standout choice for mining, automotive, and oil/gas applications. By combining ruggedness, connectivity, and energy efficiency, it offers unmatched value for industries demanding reliability and precision.
