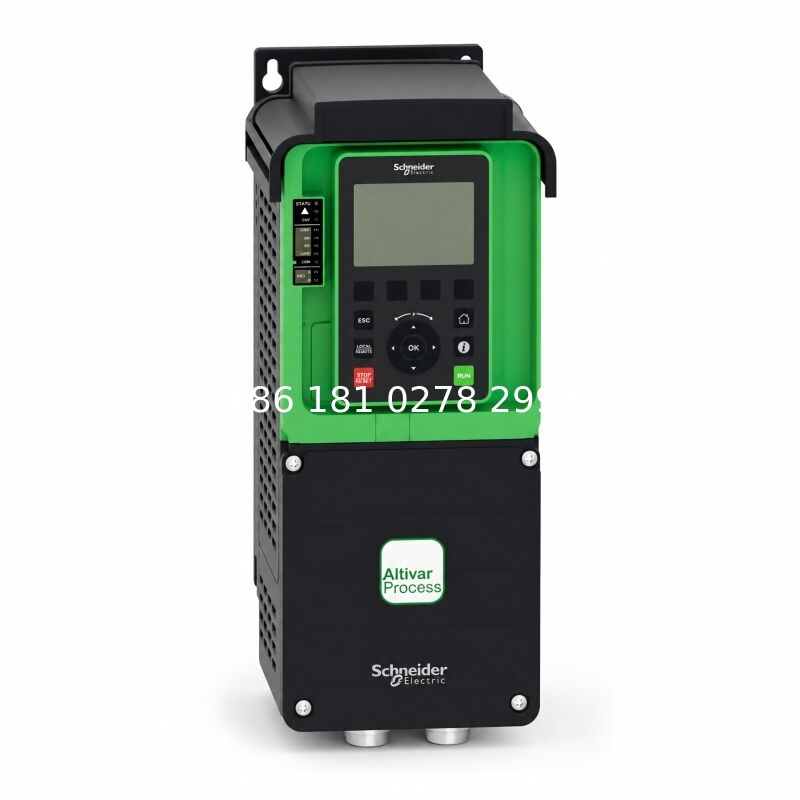

Schneider Electric ATV930U15N4 Variable Frequency Drive (VFD): A Comprehensive Technical Review
The Schneider Electric ATV930U15N4 is a compact yet powerful variable frequency drive (VFD) designed for light-to-medium industrial applications requiring precise motor control and energy efficiency. As part of the ATV930 series, this 1.5kW unit operates on a 380–480V power supply, making it ideal for global markets with higher voltage standards. Equipped with an integrated braking system and IP21 protection, it combines reliability, adaptability, and advanced connectivity for motors in sectors such as HVAC, food processing, and material handling. Below is a detailed technical specification table followed by an in-depth analysis of its features, applications, and unique advantages.
Technical Specification Table
| Parameter |
Details |
| Model |
ATV930U15N4 |
| Power Rating |
1.5 kW (2 HP) |
| Input Voltage |
380–480 V ±10%, 3-phase |
| Output Current |
3.8 A (380V) / 3.0 A (480V) at 4 kHz switching frequency |
| Braking System |
Built-in dynamic braking (up to 120% of nominal torque) |
| Protection Class |
IP21 (finger-safe, dust-resistant, drip-proof) |
| Control Modes |
V/F, sensorless vector control, and enhanced flux vector control |
| Communication Protocols |
EtherNet/IP, Modbus RTU, PROFINET, and optional BACnet/IP |
| Digital Inputs/Outputs |
6 programmable digital inputs (24V DC) / 2 relay outputs (NO/NC) |
| Analog Inputs/Outputs |
2 configurable analog inputs (0–10V/4–20mA) / 1 analog output (0–10V) |
| Switching Frequency |
Adjustable (1–12 kHz) |
| Ambient Temperature |
-10°C to 40°C (operation), -20°C to 60°C (storage) |
| Cooling Method |
Natural convection (8W at 380V) / forced ventilation (25W at 380V) |
| Dimensions (W×H×D) |
110 mm × 250 mm × 160 mm |
| Weight |
2.5 kg |
| Certifications |
UL, CE, TÜV, IEC 61800-3, IEC 60721-3-3 (class 3C2), and RoHS compliant |
Key Features and Functionalities
1. Global Voltage Compatibility
The ATV930U15N4’s 380–480V input voltage range makes it suitable for international applications, including Europe, Asia, and Australia. This eliminates the need for separate inventory for different regions, streamlining global deployments.
2. Compact Design and Power Density
Despite its 1.5kW rating, the drive’s ultra-compact dimensions (110mm × 250mm × 160mm) and lightweight design (2.5 kg) enable installation in tight control panels. Its natural convection cooling reduces energy consumption in low-load scenarios.
3. Integrated Braking System
The built-in dynamic braking circuit handles up to 120% of the drive’s nominal torque, simplifying wiring and reducing costs for applications requiring frequent stopping/deceleration, such as conveyors and elevators.
4. Advanced Control Algorithms
- V/F Control with Slip Compensation: Maintains speed accuracy under varying loads.
- Sensorless Vector Control (SVC): Delivers 150% starting torque at 0.5 Hz for pumps and fans.
- Enhanced Flux Vector Control (EFVC): Requires encoder feedback for high-precision tasks like winding machines.
5. Communication Flexibility
The drive supports EtherNet/IP for real-time industrial Ethernet networks and Modbus RTU for serial communication. Optional BACnet/IP integration enables seamless connectivity with building management systems (BMS) in HVAC applications.
6. Energy Efficiency and Compliance
With a switching frequency up to 12 kHz, the ATV930U15N4 minimizes motor noise and harmonic distortion. It meets IEC 61800-3 Category C2 for electromagnetic compatibility (EMC) and adheres to RoHS directives, aligning with global sustainability goals.
Applications
The ATV930U15N4 excels in diverse sectors:
- HVAC: Air handling units (AHUs), chillers, and ventilation fans.
- Food and Beverage: Small-scale mixers, fillers, and packaging lines.
- Textiles: Spindle drives, looms, and yarn winders.
- Water Treatment: Dosing pumps and aerators.
- Commercial Buildings: Escalators, moving walkways, and parking systems.
Installation and Maintenance
Installation
- Mounting: Vertical or horizontal orientation with 50mm clearance for airflow.
- Wiring: Spring-type terminals for power/motor connections and plug-in connectors for control signals.
- Commissioning: Schneider’s SoMove software simplifies parameter setup and diagnostics via USB or Bluetooth.
Maintenance
- Cooling System: Clean filters quarterly to prevent overheating.
- Firmware Updates: Use the built-in SD card slot for non-disruptive updates.
- Predictive Maintenance: Monitor key parameters (e.g., IGBT temperature, capacitor health) via EtherNet/IP.
Unique Advantages Over Competitors
- Global Voltage Range: Eliminates the need for region-specific models.
- Low Harmonic Distortion: Complies with IEEE 519 without additional filters.
- Eco-Mode: Reduces energy consumption by up to 25% in partial-load scenarios.
- BACnet/IP Integration: Enables seamless BMS connectivity for smart buildings.
Case Study: HVAC Chiller Application
A commercial building replaced a fixed-speed drive with the ATV930U15N4 to control a 1.5kW chiller pump. The results included:
- 30% energy savings through adaptive motor control.
- Reduced noise levels by 10 dB via adjustable switching frequency.
- 20% faster maintenance using SoMove’s diagnostic logs.
Conclusion
The Schneider Electric ATV930U15N4 is a versatile, energy-efficient VFD designed for global markets and light industrial loads. Its integrated braking, advanced control modes, and IoT-ready communication make it a cost-effective solution for applications demanding precision and reliability. By prioritizing ease of use, sustainability, and connectivity, it outperforms competitors in sectors like HVAC, textiles, and food processing, offering a compelling blend of performance and value.
