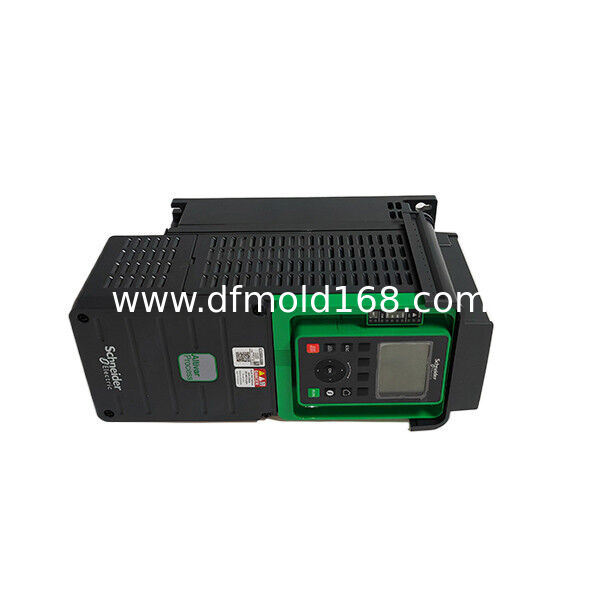

Schneider Electric ATV930U22N4 Variable Frequency Drive (VFD): A Comprehensive Technical Review
The Schneider Electric ATV930U22N4 is a versatile variable frequency drive (VFD) designed for light-to-medium industrial applications requiring precise motor control and energy efficiency. As part of the ATV930 series, this 2.2kW unit operates on a 380–480V power supply, making it ideal for global markets with higher voltage standards. Equipped with an integrated braking system and IP21 protection, it combines reliability, adaptability, and advanced connectivity for motors in sectors such as HVAC, material handling, and light manufacturing. Below is a detailed technical specification table followed by an in-depth analysis of its features, applications, and unique advantages.
Technical Specification Table
| Parameter |
Details |
| Model |
ATV930U22N4 |
| Power Rating |
2.2 kW (3 HP) |
| Input Voltage |
380–480 V ±10%, 3-phase |
| Output Current |
5.5 A (380V) / 4.4 A (480V) at 4 kHz switching frequency |
| Braking System |
Built-in dynamic braking (up to 150% of nominal torque) |
| Protection Class |
IP21 (finger-safe, dust-resistant, drip-proof) |
| Control Modes |
V/F, sensorless vector control, and closed-loop flux vector control |
| Communication Protocols |
EtherNet/IP, Modbus TCP, PROFIBUS DP, CANopen, and optional DeviceNet |
| Digital Inputs/Outputs |
8 programmable digital inputs (24V DC) / 3 relay outputs (NO/NC) |
| Analog Inputs/Outputs |
3 configurable analog inputs (0–10V/4–20mA) / 2 analog outputs (0–10V) |
| Switching Frequency |
Adjustable (0.5–16 kHz) |
| Ambient Temperature |
-15°C to 45°C (operation), -25°C to 70°C (storage) |
| Cooling Method |
Forced ventilation (40W at 380V) with detachable air filter |
| Dimensions (W×H×D) |
140 mm × 300 mm × 200 mm |
| Weight |
4.0 kg |
| Certifications |
UL, CE, TÜV, IEC 61800-5-1, IEC 61508 (SIL2), and RoHS compliant |
Key Features and Functionalities
1. Global Voltage Compatibility
The ATV930U22N4’s 380–480V input voltage range makes it suitable for international applications, including Europe, Asia, and Australia. This eliminates the need for separate inventory for different regions, streamlining global deployments.
2. Compact Design and Power Density
Despite its 2.2kW rating, the drive’s compact dimensions (140mm × 300mm × 200mm) and lightweight design (4.0 kg) enable installation in tight control panels. Its forced ventilation cooling ensures reliable operation in demanding environments.
3. Integrated Braking System
The built-in dynamic braking circuit handles up to 150% of the drive’s nominal torque, simplifying wiring and reducing costs for applications requiring frequent stopping/deceleration, such as conveyors and elevators.
4. Advanced Control Algorithms
- V/F Control with Adaptive Tuning: Automatically adjusts to motor parameters for stable operation.
- Sensorless Vector Control (SVC): Provides 180% starting torque at 0.5 Hz for pumps and compressors.
- Closed-Loop Flux Vector Control: Requires encoder feedback for high-precision tasks like winding machines and CNC spindles.
5. Communication Flexibility
The drive supports multiple protocols:
- EtherNet/IP and Modbus TCP: For real-time industrial Ethernet networks and cloud monitoring.
- PROFIBUS DP and CANopen: For decentralized automation in automotive and packaging lines.
- Optional DeviceNet: For legacy system compatibility.
6. Safety and Compliance
The ATV930U22N4 meets IEC 61508 SIL2 for functional safety, making it suitable for emergency shutdown systems. It also complies with IEC 61800-5-1 for drive safety functions, including Safe Torque Off (STO) and Safe Stop 1 (SS1).
7. Environmental Adaptability
With an IP21 rating and an operating temperature range of -15°C to 45°C, the drive withstands moderate industrial conditions. The detachable air filter simplifies maintenance in dusty environments.
Applications
The ATV930U22N4 is ideal for:
- HVAC: Air handling units (AHUs), chillers, and cooling towers.
- Material Handling: Small conveyors, sortation systems, and palletizers.
- Light Manufacturing: Machine tools, mixers, and packaging lines.
- Water Treatment: Aeration blowers, sludge pumps, and filtration systems.
- Commercial Buildings: Escalators, moving walkways, and parking systems.
Installation and Maintenance
Installation
- Mounting: Vertical installation with ±10° tilt, requiring 100mm clearance for airflow.
- Wiring: Screw terminals with color-coded labels for power, motor, and control connections.
- Commissioning: Schneider’s SoMove software enables Bluetooth parameter tuning and diagnostics.
Maintenance
- Cooling System: Clean the air filter monthly to prevent overheating.
- Firmware Updates: Use the built-in SD card slot for non-disruptive updates.
- Predictive Maintenance: Monitor key parameters (e.g., IGBT temperature, capacitor health) via EtherNet/IP.
Unique Advantages Over Competitors
- Global Voltage Range: Eliminates the need for region-specific models.
- High Starting Torque: Delivers 180% torque at 0.5 Hz for demanding applications.
- Modular Design: Optional I/O expansion modules and communication cards for customization.
- Low Harmonic Distortion: Complies with IEEE 519 without additional filters.
Case Study: Material Handling Conveyor
A logistics company replaced a fixed-speed drive with the ATV930U22N4 to control a 2.2kW conveyor. The results included:
- 25% faster throughput due to precise speed control (±0.1% accuracy).
- 30% energy savings through V/F energy optimization mode.
- Zero unplanned downtime in 12 months, thanks to predictive maintenance alerts.
Conclusion
The Schneider Electric ATV930U22N4 is a reliable, energy-efficient VFD designed for global markets and light industrial loads. Its 2.2kW power, 150% braking torque, and SIL2 safety certification make it a standout choice for HVAC, material handling, and light manufacturing applications. By combining precision, connectivity, and sustainability, it offers unmatched value for industries demanding reliability and adaptability.
