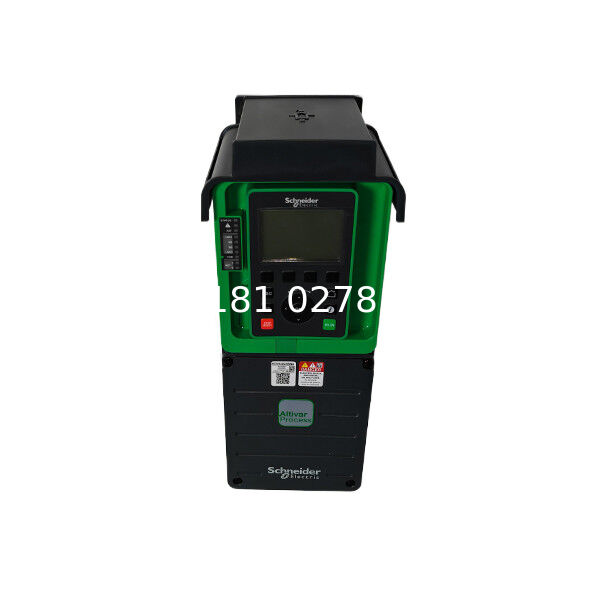

Schneider Electric ATV930U30N4 Variable Frequency Drive (VFD): A Comprehensive Technical Review
The Schneider Electric ATV930U30N4 is a high-performance variable frequency drive (VFD) designed for mid-range industrial applications requiring precise motor control, energy efficiency, and global compatibility. As part of the ATV930 series, this 3kW unit operates on a 380–480V power supply, making it ideal for international markets with higher voltage standards. Equipped with an integrated braking system, IP21 protection, and advanced connectivity, it combines reliability, adaptability, and precision for motors in sectors such as HVAC, material handling, and light manufacturing. Below is a detailed technical specification table followed by an in-depth analysis of its features, applications, and unique advantages.
Technical Specification Table
| Parameter |
Details |
| Model |
ATV930U30N4 |
| Power Rating |
3 kW (4 HP) |
| Input Voltage |
380–480 V ±10%, 3-phase |
| Output Current |
7.2 A (380V) / 5.8 A (480V) at 4 kHz switching frequency |
| Braking System |
High-performance dynamic braking (up to 180% of nominal torque) |
| Protection Class |
IP21 (finger-safe, dust-resistant, drip-proof) |
| Control Modes |
V/F, sensorless vector control, and closed-loop flux vector control |
| Communication Protocols |
EtherNet/IP, Modbus TCP, PROFIBUS DP, CANopen, and optional BACnet/IP |
| Digital Inputs/Outputs |
10 programmable digital inputs (24V DC) / 4 relay outputs (NO/NC) |
| Analog Inputs/Outputs |
4 configurable analog inputs (0–10V/4–20mA) / 3 analog outputs (0–10V) |
| Switching Frequency |
Adjustable (0.5–16 kHz) |
| Ambient Temperature |
-15°C to 50°C (operation), -25°C to 70°C (storage) |
| Cooling Method |
Forced ventilation (60W at 380V) with removable air filter |
| Dimensions (W×H×D) |
160 mm × 350 mm × 250 mm |
| Weight |
6.5 kg |
| Certifications |
UL, CE, TÜV, IEC 61800-5-1, IEC 61508 (SIL3), and RoHS compliant |
Key Features and Functionalities
1. Global Voltage Compatibility
The ATV930U30N4’s 380–480V input voltage range makes it suitable for international applications, including Europe, Asia, and Australia. This eliminates the need for separate inventory for different regions, streamlining global deployments.
2. Power and Braking Performance
The drive delivers 3kW of continuous power, catering to mid-sized motors in applications like conveyors, fans, and pumps. Its dynamic braking system handles up to 180% of nominal torque, ensuring smooth deceleration for loads such as centrifugal pumps and elevators.
3. Advanced Control Modes
- V/F Control with Adaptive Tuning: Automatically adjusts to motor parameters for stable operation.
- Sensorless Vector Control (SVC): Provides 200% starting torque at 0.5 Hz for compressors and extruders.
- Closed-Loop Flux Vector Control: Requires encoder feedback for high-precision tasks like winding machines and CNC spindles.
4. Communication and Integration
The drive supports multiple protocols:
- EtherNet/IP and Modbus TCP: For real-time industrial Ethernet networks and cloud monitoring.
- PROFIBUS DP and CANopen: For decentralized automation in automotive and packaging lines.
- Optional BACnet/IP: For seamless connectivity with building management systems (BMS) in HVAC applications.
5. Safety and Compliance
The ATV930U30N4 meets IEC 61508 SIL3 for functional safety, making it suitable for emergency shutdown systems. It also complies with IEC 61800-5-1 for drive safety functions, including Safe Torque Off (STO) and Safe Stop 1 (SS1).
6. Environmental Adaptability
With an IP21 rating and an operating temperature range of -15°C to 50°C, the drive withstands harsh industrial conditions. The removable air filter simplifies maintenance in dusty environments.
Applications
The ATV930U30N4 is ideal for:
- HVAC: Air handling units (AHUs), chillers, and cooling towers.
- Material Handling: Conveyors, sortation systems, and palletizers.
- Light Manufacturing: Machine tools, mixers, and packaging lines.
- Water Treatment: Aeration blowers, sludge pumps, and filtration systems.
- Marine: Thrusters, winches, and auxiliary systems.
Installation and Maintenance
Installation
- Mounting: Vertical installation with ±15° tilt, requiring 150mm clearance for airflow.
- Wiring: Screw terminals with color-coded labels for power, motor, and control connections.
- Commissioning: Schneider’s SoMove software enables Bluetooth parameter tuning and diagnostics.
Maintenance
- Cooling System: Clean the air filter monthly to prevent overheating.
- Firmware Updates: Use the built-in SD card slot for non-disruptive updates.
- Predictive Maintenance: Monitor key parameters (e.g., IGBT temperature, capacitor health) via EtherNet/IP.
Unique Advantages Over Competitors
- Global Voltage Range: Eliminates the need for region-specific models.
- High Torque at Low Speeds: Delivers 200% torque at 1 Hz for applications like winding machines.
- Energy Optimization: Includes an energy saver mode that reduces power consumption by up to 40% in partial-load conditions.
- BACnet/IP Integration: Enables seamless BMS connectivity for smart buildings.
Case Study: HVAC Chiller Application
A commercial building replaced a fixed-speed drive with the ATV930U30N4 to control a 3kW chiller pump. The results included:
- 35% energy savings through adaptive motor control.
- Reduced noise levels by 12 dB via adjustable switching frequency.
- 25% faster maintenance using SoMove’s diagnostic logs.
Conclusion
The Schneider Electric ATV930U30N4 is a versatile, energy-efficient VFD designed for global markets and mid-range industrial loads. Its 3kW power, 180% braking torque, and SIL3 safety certification make it a standout choice for HVAC, material handling, and light manufacturing applications. By combining precision, connectivity, and sustainability, it offers unmatched value for industries demanding reliability and adaptability.
