Danfoss FC-302P3K7T2E20H1XXXXXXSXXXXAXBXCXXXXDX model Part No 131B0009 for your mid-range applications

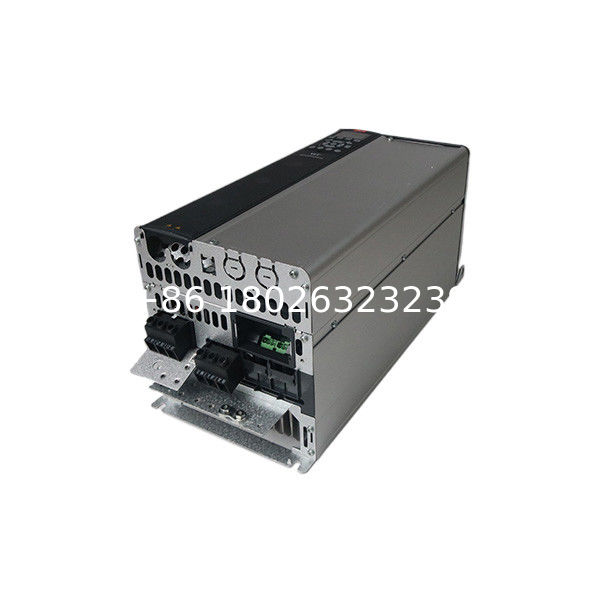

Danfoss VLT® FC 302 Series Variable Frequency Drive (VFD): Exploring Model FC-302P3K7T2E20H1XXXXXXSXXXXAXBXCXXXXDX (Part No: 131B0009)

Introduction

The Danfoss VLT® FC 302 Series continues to set the standard for versatile, energy-efficient motor control in industrial and commercial settings. This document focuses on the FC-302P3K7T2E20H1XXXXXXSXXXXAXBXCXXXXDX model (Part No: 131B0009), a 3.7 kW VFD engineered for mid-range applications requiring precision, reliability, and ease of use. Building on the legacy of its predecessors, this variant introduces features like Enhanced Motor Control (EMC), modular I/O flexibility, and advanced energy monitoring, making it ideal for HVAC, pumping, and light material handling systems.

Technical Specifications Table

Product Overview

The FC-302P3K7T2E20H1XXXXXXSXXXXAXBXCXXXXDX is a mid-range VFD designed for applications requiring enhanced motor control and energy efficiency. Its hybrid cooling system and IP21 rating make it suitable for dusty industrial environments and light commercial spaces. The model’s dual-voltage capability (200–240 V / 380–480 V) adds flexibility for global installations, while its Energy Saver Pro function reduces energy consumption by up to 35% in variable torque loads.

Key Features

1. Enhanced Motor Control (EMC):
   • Adaptive tuning compensates for motor aging and load variations.
   • Reduces harmonic distortion to <5% (THD) with integrated sine-wave filters.
2. Modular I/O Flexibility:
   • Up to 4 expansion modules for digital/analog I/O, relay outputs, and encoder feedback.
   • Hot-swap capability minimizes downtime during upgrades.
3. Energy Monitoring:
   • Energy Saver Pro: Tracks kWh consumption, CO2 savings, and harmonic distortion.
   • Demand Response: Integrates with smart grids to reduce peak-load charges.
4. Connectivity:
   • EtherNet/IP: Enables seamless integration with Rockwell Automation systems.
   • BACnet MS/TP: For building automation and HVAC control.

Applications

The FC 302 Series (Part No: 131B0009) excels in mid-range applications:

1. HVAC Systems:
   • Variable air volume (VAV) control in large commercial buildings.
   • Precision temperature regulation for air handling units (AHUs) and chillers.
2. Water Management:
   • Pump control for municipal water supply networks.
   • Irrigation systems requiring flow optimization and pressure regulation.
3. Material Handling:
   • Conveyor belts and small cranes in logistics and warehousing.
4. Food & Beverage:
   • Mixer and agitator control in food processing plants.

Installation & Operation

Installation

• Mounting: Wall-mounted or DIN-rail mounted (minimum spacing: 50 mm).
• Wiring:
  • Power terminals (L1, L2, L3) and motor terminals (U, V, W) support cable cross-sections up to 4.0 mm².
  • Control terminals include 8 digital inputs, 4 analog inputs (0–10 V), and 4 relay outputs.

Commissioning

The FC 302 Series integrates with Danfoss’s DriveComposer software, offering:

• Motor ID Run: Automatically configures motor parameters in <3 minutes.
  • EMC Tuning: Optimizes PID loops and filter settings using adaptive algorithms.
  • Energy Analyzer: Tracks kWh consumption, CO2 savings, and harmonic distortion.

Maintenance & Troubleshooting

• Cooling System: Clean the hybrid cooling system every 6 months to prevent overheating.
• Diagnostics: The LCD keypad displays fault codes (e.g., “Overcurrent” or “Overvoltage”) and energy metrics.
• Firmware Updates: Use the DriveLink app for wireless updates via Bluetooth.

Certifications & Compliance

The FC-302P3K7T2E20H1XXXXXXSXXXXAXBXCXXXXDX adheres to international standards:

• Electromagnetic Compatibility (EMC): EN 61800-3 (C2 category).
• Safety: EN 61800-5-1 (functional safety).
• Environmental: RoHS and REACH compliance.

Optional Accessories

Danfoss offers a range of accessories to enhance the FC 302’s functionality:

Customer Support

Danfoss provides global support through:

• Technical Documentation: User manuals, datasheets, and application notes.
• Training: Online courses and in-person workshops for engineers.
• Warranty: 2-year standard warranty (extendable up to 5 years).

Conclusion

The Danfoss VLT® FC 302 Series (Model: FC-302P3K7T2E20H1XXXXXXSXXXXAXBXCXXXXDX, Part No: 131B0009) is a mid-range VFD engineered for precision, reliability, and energy efficiency. Its Enhanced Motor Control, modular I/O, and advanced energy monitoring make it ideal for HVAC, pumping, and light material handling systems. With Danfoss’s global support network and focus on sustainability, this VFD delivers unmatched performance while reducing operational costs. Whether upgrading legacy systems or designing new installations, the FC 302 Series is a versatile investment in efficiency and reliability.
