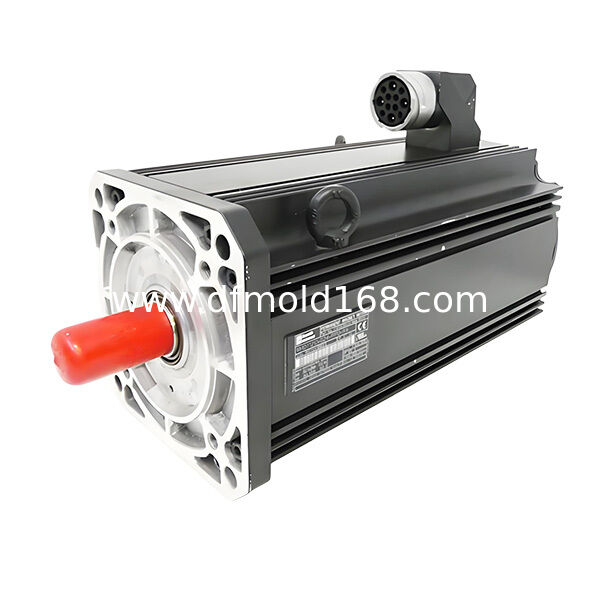

MHD112B-024-NP1-AN Synchronous Servo Motor 28Nm with Digital Encoder

The MHD112B-024-NP1-AN is a high-performance synchronous servo motor designed for industrial motion systems requiring high torque density, accurate positioning and reliable continuous operation.

With a 112 mm frame size and 28 Nm continuous torque capability, this motor provides strong output performance for demanding automation equipment. The digital servo feedback system enables precise closed-loop control, while the integrated holding brake supports secure load positioning during power-off conditions.

The liquid-cooled housing design improves thermal management in applications requiring extended duty cycles and stable performance.

Key Features

• 28 Nm continuous standstill torque
• 112 mm servo motor frame
• Digital servo feedback encoder
• Keyed shaft with sealing ring
• Integrated holding brake
• Liquid cooling design
• High torque density construction

Typical Applications

• CNC machine tools
• Robotics systems
• Packaging machinery
• Material handling equipment
• Precision automation systems

High Torque Servo Performance

The motor is designed for applications requiring:

• High positioning accuracy
• Stable torque output
• Continuous operation capability
• Reliable dynamic response

Advanced Feedback System

The integrated digital servo feedback provides:

• Accurate position detection
• Speed monitoring
• Closed-loop motion control
• Improved system synchronization

Cooling and Mechanical Design

The liquid-cooled housing helps maintain stable temperature performance in demanding applications.

The keyed shaft with sealing ring provides reliable mechanical connection for industrial motion systems.

MHD112B-024-NP1-AN vs MHD112D Series

MHD112B-024-NP1-AN

28 Nm torque class

Liquid cooling

Holding brake configuration

Suitable for higher duty applications

MHD112D Series

Different frame length and torque configuration

Suitable for other mechanical load requirements

Installation Notes

• Verify compatible servo amplifier
• Confirm cooling requirements
• Check encoder connection
• Verify shaft dimensions
• Confirm brake voltage
• Configure motor parameters before operation

FAQ

Q1: What type of motor is MHD112B-024-NP1-AN?

A1: It is a permanent magnet synchronous servo motor.

Q2: What is the continuous torque?

A2: The continuous standstill torque is 28 Nm.

Q3: Does it include a brake?

A3: Yes. This configuration includes a holding brake.

Q4: What feedback system is used?

A4: It uses digital servo feedback.

Q5: What cooling method does it use?

A5: It uses liquid cooling for improved thermal management.
