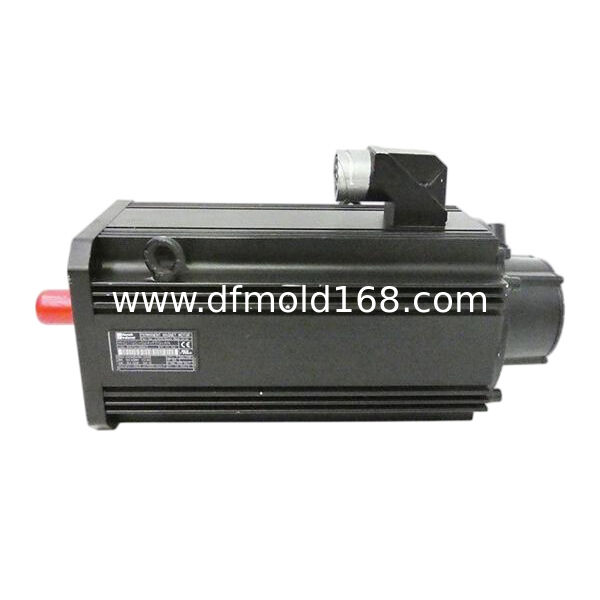

MHD112B-024-NP1-BN Synchronous Servo Motor 28Nm with Holding Brake

The MHD112B-024-NP1-BN is a high-torque synchronous servo motor designed for industrial motion systems requiring precise positioning, strong load holding capability and stable continuous operation.

With a 112 mm frame size and 28 Nm continuous standstill torque, this motor provides reliable torque output for demanding automation equipment.

The integrated 22 Nm holding brake allows secure axis positioning when the servo system is powered off, making it suitable for vertical axes and applications requiring load retention.

The HSF digital servo feedback system provides accurate speed and position control, while the liquid-cooled housing improves thermal stability during extended operation.

Key Features

• 28 Nm continuous standstill torque
• Integrated 22 Nm holding brake
• Digital servo feedback (HSF)
• Relative position detection
• Liquid cooling design
• Keyed shaft with shaft seal
• IP65 industrial protection

Typical Applications

• CNC machine tools
• Vertical positioning axes
• Robotics equipment
• Packaging machinery
• Industrial automation systems

Brake-Assisted Motion Control

The integrated holding brake provides mechanical load retention when motor power is removed.

Typical applications:

• Vertical lifting axes
• Gravity-loaded mechanisms
• Safety holding applications
• Machine positioning systems

Liquid Cooling Advantage

The liquid cooling structure helps maintain stable temperature performance under continuous load.

Benefits include:

• Improved heat dissipation
• Stable torque output
• Reduced thermal stress
• Extended operating capability

Feedback System Advantage

The HSF digital servo feedback system provides:

• Accurate position monitoring
• Stable speed regulation
• Reliable closed-loop control
• Improved synchronization performance

MHD112B-024-NP1-BN vs Other MHD112 Models

MHD112B-024-NP1-BN

28 Nm torque

22 Nm holding brake

Relative encoder feedback

Liquid cooling

MHD112D-027-PG0-AN

48 Nm torque

Multiturn absolute encoder

Higher torque application

MHD112D-027-PP0-BN

48 Nm torque class

Different frame length and configuration

Installation Notes

• Verify compatible servo amplifier
• Confirm brake voltage requirement
• Check encoder interface
• Verify cooling connections
• Confirm shaft dimensions
• Configure motor parameters before operation

FAQ

Q1: What type of motor is MHD112B-024-NP1-BN?

A1: It is a permanent magnet synchronous servo motor.

Q2: Does this motor include a brake?

A2: Yes. It includes a 22 Nm holding brake.

Q3: What feedback system is used?

A3: It uses HSF digital servo feedback with relative position detection.

Q4: What is the continuous torque?

A4: The continuous standstill torque is 28 Nm.

Q5: What cooling method is used?

A5: It uses liquid cooling.
