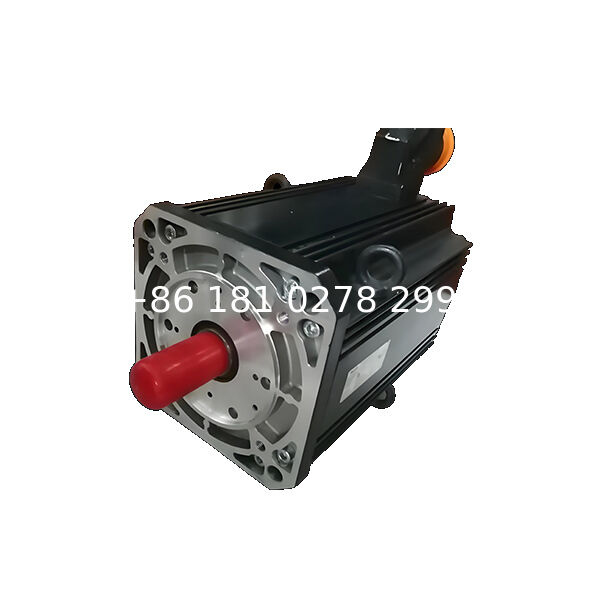

MHD112C-024-PP0-BN High Torque Servo Motor 38Nm with Absolute Encoder

The MHD112C-024-PP0-BN is a high-torque synchronous servo motor designed for precision motion systems requiring accurate positioning, stable torque output and long-term industrial operation.

With a 112C extended frame design and 38 Nm continuous standstill torque, this motor provides strong mechanical performance while maintaining precise servo control.

The integrated multiturn absolute encoder allows the motor position to be retained across multiple revolutions, reducing the need for repeated homing procedures after power interruption.

The liquid-cooled housing improves thermal stability for continuous-duty applications where consistent performance is required.

Key Features

• 38 Nm continuous standstill torque
• 112C extended frame design
• Multiturn absolute encoder feedback
• Liquid cooling housing
• Keyed shaft with sealing ring
• No holding brake configuration
• IP65 industrial protection

Typical Applications

• CNC machine tools
• Precision machining equipment
• Robotics systems
• High-load automation platforms
• Industrial positioning systems

Absolute Encoder Advantage

The PP0 feedback configuration provides:

• Absolute position detection
• Reduced machine referencing time
• Improved restart efficiency
• High positioning repeatability

High Torque C-Frame Design

Compared with shorter MHD112 configurations, the C-length design provides:

• Higher torque capability
• Better load handling
• Stable acceleration performance
• Suitable for continuous operation

Liquid Cooling Performance

The liquid cooling structure helps maintain stable motor temperature during demanding applications.

Benefits:

• Improved heat dissipation
• Stable torque output
• Reduced thermal stress
• Longer continuous operation capability

Configuration Difference

MHD112C-024-PP0-BN

Multiturn absolute encoder

Liquid cooling

No holding brake

MHD112C-024-NP0-BN

Relative position feedback

Different encoder configuration

No holding brake

MHD112B-024-NP1-BN

Shorter frame

Holding brake version

Installation Notes

• Verify compatible servo amplifier
• Confirm encoder interface
• Check liquid cooling connection
• Verify shaft dimensions
• Configure motor parameters before operation

FAQ

Q1: What type of motor is MHD112C-024-PP0-BN?

A1: It is a permanent magnet synchronous servo motor.

Q2: What is the continuous torque?

A2: The continuous standstill torque is 38 Nm.

Q3: Does it include a holding brake?

A3: No. This configuration does not include a brake.

Q4: What encoder does it use?

A4: It uses digital servo feedback with integrated multiturn absolute encoder.

Q5: What cooling method is used?

A5: It uses liquid cooling.
