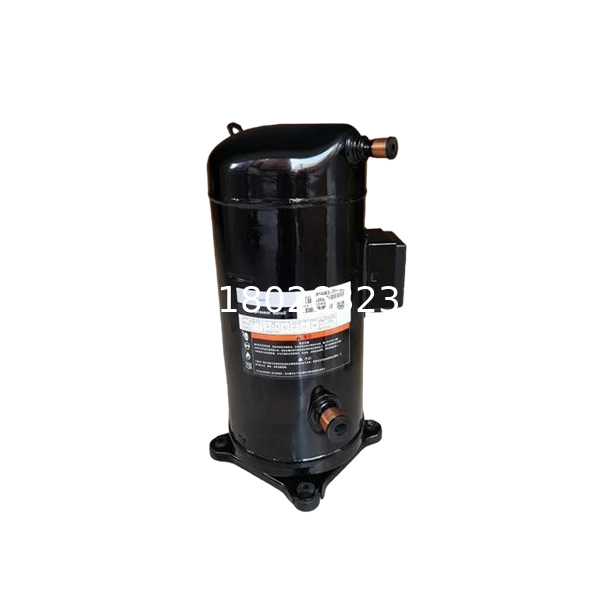

Copeland ZR61KCE-TF5-522 Scroll Compressor — In-Depth Product Overview
Introduction
The Copeland ZR61KCE-TF5-522 Scroll Compressor is a high-performance, energy-efficient solution designed to provide reliable and consistent cooling for a wide range of commercial and industrial applications. With its 5HP capacity, this compressor is ideal for use in HVAC systems, refrigeration units, and process cooling systems that demand both high capacity and energy savings. Copeland’s advanced scroll technology delivers superior reliability and performance, ensuring that businesses and facilities can operate efficiently while keeping energy costs low.
This product overview will explore the key features, technical specifications, and various applications of the ZR61KCE-TF5-522, while also highlighting the significant benefits this compressor offers. By the end of this article, you'll understand why this model is an excellent choice for businesses looking to optimize their cooling systems, reduce operating costs, and improve overall efficiency.
Key Features and Benefits
1. High-Efficiency Performance
The ZR61KCE-TF5-522 Scroll Compressor delivers 5HP (3.7 kW) of cooling power, making it an ideal choice for medium to large refrigeration systems, commercial HVAC applications, and industrial cooling solutions. The compressor is designed to optimize refrigerant flow, minimizing energy consumption while ensuring high cooling capacity. By enhancing energy efficiency, businesses can significantly reduce operating costs, making the ZR61KCE-TF5-522 a cost-effective solution for companies in the food industry, pharmaceuticals, and any business relying on refrigeration or cooling systems.
2. Quiet and Low-Vibration Operation
One of the standout features of the ZR61KCE-TF5-522 is its quiet operation. Thanks to Copeland’s scroll technology, the compressor operates with minimal noise and vibration compared to traditional piston compressors. This feature is particularly beneficial for noise-sensitive environments such as office buildings, supermarkets, and retail spaces. The reduced vibration also helps protect the integrity of the surrounding components, leading to longer system lifespan and reduced wear and tear.
3. Durability and Reliability
The ZR61KCE-TF5-522 is built for long-term reliability and durability. It is designed to withstand continuous-duty operation in demanding environments, making it suitable for applications that require 24/7 cooling. The high-quality construction ensures that it can handle varying loads and harsh conditions without compromising its performance. Businesses can rely on this compressor for uninterrupted operation, reducing the risk of downtime and costly repairs.
4. Low Maintenance
Designed with fewer moving parts than traditional compressors, the ZR61KCE-TF5-522 requires minimal maintenance. Its advanced scroll design reduces wear and tear, resulting in fewer service visits and lower maintenance costs. This not only saves businesses time and money but also increases the overall efficiency of the system. The ZR61KCE-TF5-522 offers simplicity in routine maintenance, allowing technicians to perform necessary checks quickly and easily.
5. Energy Efficiency and Cost Savings
Energy efficiency is a top priority for businesses seeking to optimize operational costs. The ZR61KCE-TF5-522 Scroll Compressor is engineered to reduce energy consumption while maintaining high performance. By minimizing the electrical consumption required for cooling, businesses can save significantly on energy bills. The combination of efficient design, reduced friction, and precise control over refrigerant flow ensures that the ZR61KCE-TF5-522 provides long-term savings for businesses looking to reduce their carbon footprint and improve sustainability.
6. Refrigerant Flexibility
The ZR61KCE-TF5-522 is compatible with a wide range of refrigerants, including R134A, R407C, and R404A. This flexibility makes it suitable for use in both older systems and modern installations that require environmentally friendly refrigerants. It also offers businesses the adaptability to future-proof their cooling systems as industry standards evolve and refrigerant regulations change.
7. Compact and Space-Saving Design
Despite its powerful 5HP motor, the ZR61KCE-TF5-522 compressor is compact and designed for easy installation in systems with limited space. Whether for commercial refrigeration, HVAC units, or process cooling systems, this compressor fits seamlessly into various applications without taking up excessive space. The space-saving design allows for easier installation and greater flexibility in system configuration.
Technical Specifications
Below is a detailed summary of the Copeland ZR61KCE-TF5-522 Scroll Compressor technical specifications:
Specification |
Details |
Manufacturer |
Copeland (Emerson) |
Product Type |
Scroll Compressor |
Model Number |
ZR61KCE-TF5-522 |
Compressor Type |
Scroll |
Motor Power |
5HP (3.7 kW) |
Cooling Capacity (kW) |
7.0 to 8.5 (depending on application) |
Power Input (kW) |
4.5 to 5.0 |
Operating Pressure |
Max. 30 bar |
Evaporating Temperature |
-10°C to +5°C |
Condenser Temperature |
40°C |
Refrigerant Compatibility |
R134A, R407C, R404A |
Motor Type |
3-phase induction motor |
Nominal Voltage |
400V ±10% |
Current (A) |
8.0 – 10.0 |
Sound Pressure (dB(A)) |
70 – 75 dB(A) |
Weight (kg) |
Approx. 65 kg |
Dimensions (L x W x H) |
500 x 500 x 670 mm |
Oil Charge (L) |
3.0 |
Suction and Discharge Size |
7/8 inch (suction), 7/8 inch (discharge) |
Applications
The Copeland ZR61KCE-TF5-522 is an ideal choice for a wide range of commercial, industrial, and HVAC applications that require reliable, high-efficiency cooling:
1. Commercial Refrigeration
-
In supermarkets, grocery stores, and cold storage facilities, the ZR61KCE-TF5-522 provides reliable cooling for display cases, walk-in freezers, and cold storage rooms. Its efficient performance ensures that perishable goods remain fresh and properly stored, while helping businesses reduce energy consumption.
2. Industrial Refrigeration
-
The ZR61KCE-TF5-522 is perfect for industrial refrigeration applications, such as food processing plants, chemical storage, and pharmaceutical storage. Its high cooling capacity ensures that temperature-sensitive materials and products are kept at optimal conditions, even in large-scale refrigeration systems.
3. HVAC Systems
-
The ZR61KCE-TF5-522 compressor is ideal for use in large commercial HVAC systems. Whether for office buildings, shopping malls, hotels, or other commercial spaces, the ZR61KCE-TF5-522 provides reliable cooling and heating while maintaining quiet operation and energy efficiency.
4. Process Cooling
-
The ZR61KCE-TF5-522 is used in industries such as automotive, electronics, and pharmaceuticals, where precise temperature control is essential for manufacturing and storage processes. Its ability to provide consistent and reliable cooling ensures that process conditions are maintained, preventing production delays or product quality issues.
Advantages and Benefits
The ZR61KCE-TF5-522 offers several key advantages:
-
Energy Efficiency: By reducing energy consumption while maintaining high cooling output, the ZR61KCE-TF5-522 helps businesses lower operational costs and improve sustainability.
-
Quiet Operation: The scroll design ensures that the compressor operates quietly, making it perfect for noise-sensitive environments.
-
Reliability: Built to last, this compressor delivers reliable performance in demanding environments, reducing the risk of breakdowns and ensuring continuous operation.
-
Low Maintenance: The fewer moving parts in the scroll design result in reduced wear and tear, leading to lower maintenance costs and extended service life.
-
Flexibility: The ability to work with a variety of refrigerants allows businesses to adapt to different refrigerant types, as well as future-proof their systems.
Maintenance and Serviceability
Routine maintenance is essential to ensure the ZR61KCE-TF5-522 operates at peak performance. Some key maintenance tasks include:
-
Refrigerant Levels: Regularly check refrigerant levels and ensure the compressor is properly charged to maintain optimal performance.
-
Oil Monitoring: Monitor oil levels and replace the oil periodically to prevent friction and ensure smooth operation.
-
System Checks: Monitor system pressures and temperatures to ensure the compressor operates within optimal conditions.
-
Routine Cleaning: Keep the compressor clean to ensure efficient airflow and prevent damage from dirt or debris.
Copeland’s extensive service network makes it easy for businesses to access replacement parts, technical support, and maintenance services.
Environmental Considerations
The ZR61KCE-TF5-522 is designed to meet environmental standards. It operates with low-GWP refrigerants, such as R134A, R407C, and R404A, helping businesses comply with global regulations aimed at reducing the environmental impact of cooling systems. Its energy-efficient operation also helps lower electricity consumption, contributing to a reduced carbon footprint.
Conclusion
The Copeland ZR61KCE-TF5-522 Scroll Compressor offers exceptional performance, energy efficiency, and reliability for a wide range of commercial, industrial, and HVAC applications. Its 5HP motor, low-maintenance design, and quiet operation make it an ideal solution for businesses looking to optimize their cooling systems while reducing operating costs.
Whether used for refrigeration, HVAC, or process cooling, the ZR61KCE-TF5-522 provides businesses with a dependable, energy-efficient solution that ensures long-term, efficient operation. With its versatile refrigerant compatibility and space-saving design, the ZR61KCE-TF5-522 is a valuable investment for any business seeking high-performance cooling systems.
