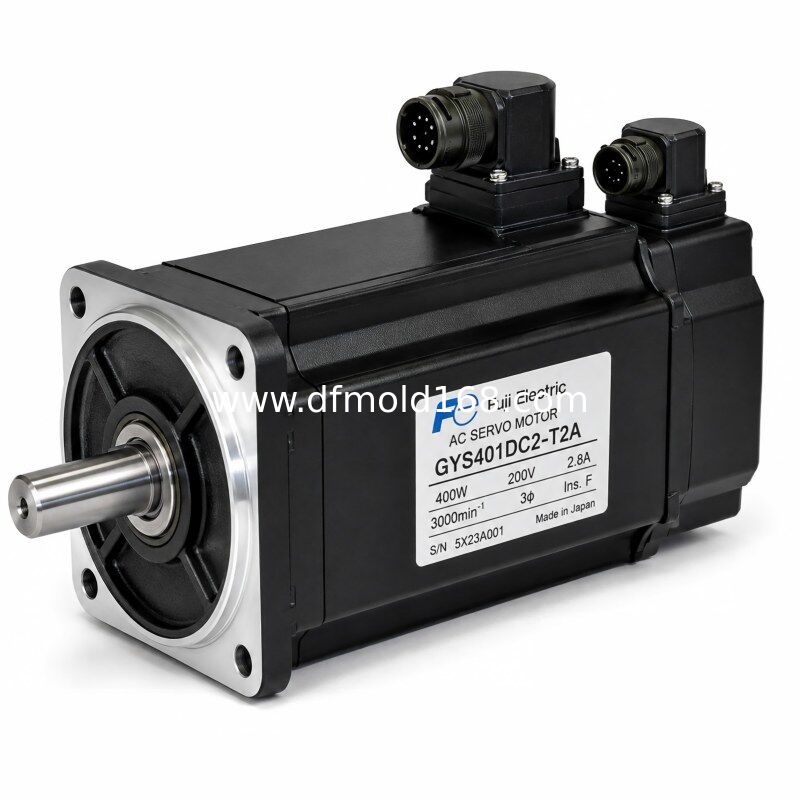

The GYS401DC2-T2A is a 400 W ultra-low inertia AC servo motor from the Fuji Electric FALDIC-W GYS Series, designed for high-speed positioning and frequent acceleration/deceleration applications.
Unlike general-purpose motors that focus mainly on continuous torque output, the GYS series is optimized for dynamic motion performance. Its low inertia rotor enables fast acceleration, rapid stopping and stable positioning during repeated machine cycles.
The integrated 17-bit incremental encoder provides high-resolution feedback for precise servo control, while the compact 400 W design delivers a balance of speed, torque and responsiveness.
The T2A configuration is a standard non-brake version, suitable for horizontal axes and compact automation mechanisms requiring reliable motion performance.
Key Features
- 400 W high-response servo motor
- Ultra-low inertia GYS design
- 17-bit incremental encoder
- 3000 r/min rated speed
- 6000 r/min maximum speed
- 1.27 N·m rated torque
- Approx. 3.8 N·m peak torque
- Compact FALDIC-W servo solution
Typical Applications
- Packaging machinery
- Robotics systems
- Precision transfer units
- CNC auxiliary axes
- High-speed indexing equipment
Ultra-Low Inertia Advantage
The main difference of GYS401DC2-T2A is its fast dynamic response.
The low inertia rotor helps achieve:
- Faster acceleration
- Faster deceleration
- Reduced positioning time
- Improved cycle efficiency
- Stable repeated motion
It is especially suitable for machines with frequent short-distance movements and rapid direction changes.
17-Bit Incremental Encoder Feedback
The built-in 17-bit incremental encoder provides accurate feedback for:
- Position control
- Speed regulation
- Servo loop adjustment
- Motion synchronization
Compared with lower-resolution feedback systems, it improves positioning stability in precision automation applications.
400W Performance Balance
Rated Output
400 W
Rated Torque
1.27 N·m
Maximum Torque
Approx. 3.8 N·m
The motor provides sufficient torque for medium-small automation axes while maintaining the fast-response characteristics of a low inertia design.
High-Speed Motion Capability
Rated Speed
3000 r/min
Maximum Speed
6000 r/min
The high-speed capability supports:
- Short cycle-time operation
- Rapid indexing
- Frequent acceleration/deceleration
Non-Brake Configuration
GYS401DC2-T2A does not include an integrated holding brake.
Recommended for:
- Horizontal motion axes
- Rotary positioning systems
- Conveyor mechanisms
- Applications without gravity load
For vertical axes requiring position holding after power-off, select the brake-equipped version.
GYS401DC2-T2A vs GYS401DC2-T2A-B
GYS401DC2-T2A
400 W
17-bit incremental encoder
No brake
GYS401DC2-T2A-B
400 W
17-bit incremental encoder
With holding brake
The brake version is designed for vertical axes and load-holding applications.
GYS401DC2-T2A vs GYS201DC2-T2A
GYS401DC2-T2A
400 W
1.27 N·m torque
GYS201DC2-T2A
200 W
Lower torque output
GYS401DC2-T2A is selected when higher acceleration capability and load capacity are required.
GYS401DC2-T2A vs GYS751DC2-T2A
GYS401DC2-T2A
400 W
Compact medium-power axis
GYS751DC2-T2A
750 W
Higher torque applications
Selection depends on required torque, inertia and acceleration profile.
Installation Notes
Before installation:
- Confirm compatible servo amplifier
- Verify encoder cable
- Check shaft coupling type
- Match load inertia
- Confirm brake requirement
- Complete servo tuning
- Test low-speed operation before full load
FAQ
Q1: What is the rated output of GYS401DC2-T2A?
A1: The rated output is 400 W.
Q2: What encoder does this motor use?
A2: It uses a 17-bit incremental encoder.
Q3: Does it include a brake?
A3: No. This model is the standard non-brake version.
Q4: What is the rated speed?
A4: The rated speed is 3000 r/min.
Q5: What makes the GYS series different?
A5: The ultra-low inertia rotor provides faster acceleration and shorter positioning cycles.
Q6: What is the rated torque?
A6: The rated torque is 1.27 N·m.
Q7: Is it suitable for high-speed automation?
A7: Yes. It is designed for repeated high-speed positioning and motion control.
Q8: Which amplifier is compatible?
A8: It is matched with the corresponding Fuji Electric FALDIC-W servo amplifier system.
