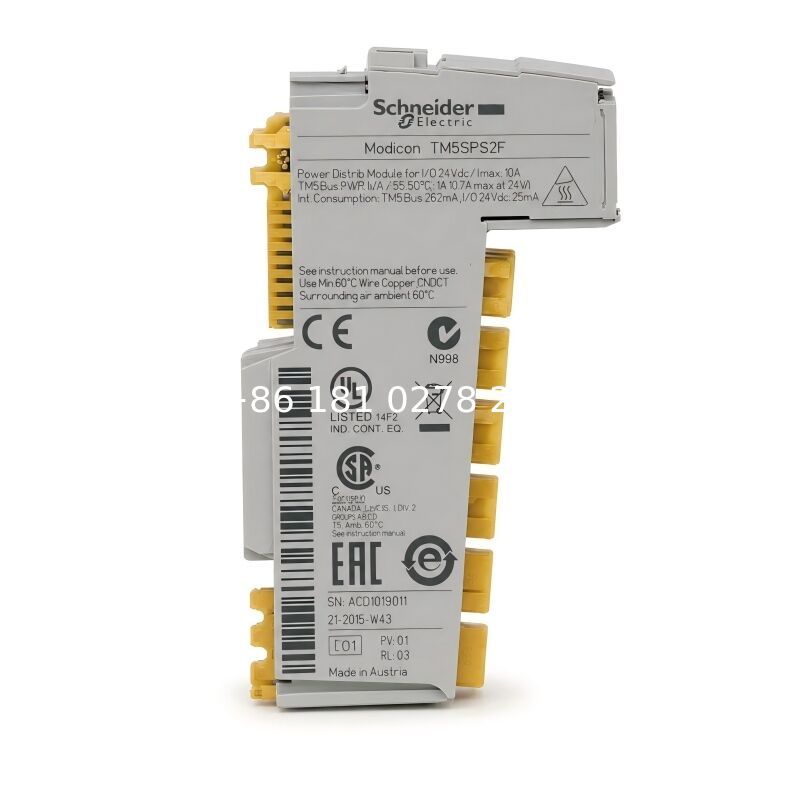

TM5SPS2F Modicon TM5 Power Distribution Module 24V DC 6.3A Fuse

The TM5SPS2F is a fused power distribution module for Modicon TM5 I/O stations.

It supplies both the 24 V DC I/O power segment and the internal TM5 power bus. Its integrated 6.3 A fuse provides local protection for the supplied power circuit.

This module is useful when a TM5 station requires additional bus power, a new I/O power segment and built-in fuse protection in one compact slice.

TM5SPS2F distributes an external 24 V DC supply. It does not convert AC power into 24 V DC and does not provide data communication.

Key Features

• Supplies TM5 power bus
• Supplies 24 V DC I/O segment
• Integrated 6.3 A fuse
• Starts a protected power segment
• Compact TM5 slice format
• IP20 installed component

Typical Applications

• Modular I/O expansion
• Packaging machinery
• Distributed control cabinets
• Machine load separation
• Protected I/O power renewal

Dual Power Distribution

TM5SPS2F supplies two parts of the TM5 station:

TM5 Power Bus

Provides power for the electronics of downstream TM5 modules.

24 V DC I/O Power Segment

Provides field-side power for compatible I/O modules and connected loads.

Integrated Fuse

The main difference between TM5SPS2F and TM5SPS2 is the built-in 6.3 A fuse.

The fuse helps protect the power-distribution circuit from excessive current.

A blown fuse indicates that the cause of the overload or short circuit must be corrected before the module is returned to operation.

Not a Communication Module

TM5SPS2F does not provide:

• Ethernet communication
• CANopen communication
• Sercos communication
• PLC processing
• Data conversion

Communication remains the function of the controller or TM5 bus interface.

TM5SPS2F vs TM5SPS2

TM5SPS2F

Supplies the TM5 bus and I/O power segment.

Includes a 6.3 A internal fuse.

TM5SPS2

Supplies the TM5 bus and I/O power segment.

Uses a different external protection arrangement.

TM5SPS2F vs TM5SPS1F

TM5SPS2F

Supplies both TM5 bus electronics and the I/O power segment.

TM5SPS1F

Supplies only the 24 V DC I/O power segment.

Select the module according to whether downstream TM5 bus power must also be renewed.

Installation Notes

Before installation:

• Disconnect the external 24 V DC supply
• Confirm the complete model number
• Check downstream load demand
• Verify the TM5 bus power budget
• Inspect the compatible base and terminal block
• Correct any short circuit before replacing a blown module
• Verify polarity before restoring power

Installation should be completed by qualified automation personnel.

FAQ

Q1: What is TM5SPS2F?

A1: It is a fused Modicon TM5 power distribution module for the TM5 bus and 24 V DC I/O power segment.

Q2: What fuse does it contain?

A2: It includes an internal 6.3 A fuse.

Q3: Does it supply the TM5 internal power bus?

A3: Yes. It supplies both the internal TM5 bus and the I/O power segment.

Q4: Is it a communication module?

A4: No. It only manages power distribution and protection.

Q5: Is it a standalone 24 V DC power supply?

A5: No. It requires an external regulated 24 V DC source.

Q6: What is the difference from TM5SPS2?

A6: TM5SPS2F includes an integrated 6.3 A fuse, while TM5SPS2 does not use the same internal fused configuration.
