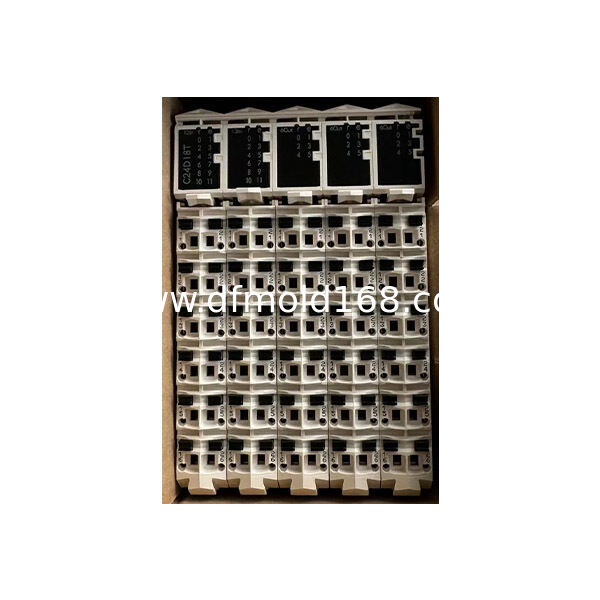

TM5C12D8T Modicon TM5 Compact I/O Block 12DI 8DO 24V DC

The TM5C12D8T is a compact Modicon TM5 digital I/O expansion block combining 12 digital inputs and 8 transistor outputs.

It contains three four-channel input sections and two four-channel output sections in one preassembled unit. The inputs receive 24 V DC sink signals, while the outputs switch compatible 24 V DC loads at up to 0.5 A per channel.

Its main advantage is balanced mixed I/O capacity. It is suited to smaller machine sections that require more sensor inputs than actuator outputs without installing five separate TM5 slices.

The complete block uses one TM5 bus address. Its internal electronic sections are integrated and cannot be replaced individually.

Key Features

• 20 total digital I/O points
• 12 sink digital inputs
• 8 source transistor outputs
• 0.5 A maximum per output
• Three input and two output sections
• One TM5 bus address
• Preassembled terminal blocks
• Compact mixed-I/O architecture

Typical Applications

• Small packaging machines
• Conveyor sections
• Assembly stations
• Sensor and valve groups
• Machine auxiliary control

Balanced 12DI and 8DO Configuration

The TM5C12D8T provides:

Input Section 1

4 Digital Inputs

Input Section 2

4 Digital Inputs

Input Section 3

4 Digital Inputs

Output Section 1

4 Digital Outputs

Output Section 2

4 Digital Outputs

This arrangement is useful when a machine section requires a moderate number of sensors and fewer actuator commands.

Digital Inputs

The twelve inputs are intended for compatible 24 V DC signals such as:

• Proximity sensors
• Limit switches
• Push buttons
• Relay contacts
• Machine status signals

The inputs use sink logic and draw approximately 3.75 mA per active channel.

Transistor Outputs

The eight outputs use 24 V DC source transistor technology.

Typical loads include:

• Interface relays
• Indicator lamps
• Small solenoid valves
• Contactor interface coils
• Pneumatic valve channels

Maximum Current per Output

0.5 A

Maximum Theoretical Total for Eight Outputs

4 A

Actual load design must also respect the module power and actuator-supply limits.

Compact Block vs Separate Modules

TM5C12D8T

Combines five internal I/O sections.

Uses one catalog reference.

Uses one TM5 bus address.

Terminal blocks are supplied assembled.

Internal electronic modules are not separately replaceable.

Separate TM5 Modules

Each module can be selected independently.

Individual slices can be replaced separately.

Provides more flexibility for future expansion.

TM5C12D8T is best suited to a known, fixed mixed-I/O requirement.

TM5C12D8T vs TM5C24D18T

TM5C12D8T

12 inputs and 8 outputs

20 total I/O points

Suitable for smaller machine sections

TM5C24D18T

24 inputs and 18 outputs

42 total I/O points

Suitable for larger centralized I/O groups

TM5C12D8T vs TM5SDM12DT

TM5C12D8T

12 inputs and 8 outputs

Preassembled compact I/O block

Five integrated internal sections

TM5SDM12DT

8 inputs and 4 outputs

Single mixed electronic module

Suitable for smaller individual expansion

No Hot-Swap Capability

TM5 compact I/O blocks must not be removed or inserted while the system is energized.

Disconnect the TM5 station and field supply before replacement.

The internal electronic modules are integrated into the compact block and cannot be replaced separately.

Installation Notes

Before installation:

• Disconnect the TM5 station supply
• Confirm the exact model number
• Record all input and output assignments
• Verify the 24 V DC supply
• Calculate actuator load current
• Confirm source and sink wiring
• Update the controller configuration
• Test each internal I/O section

FAQ

Q1: What is TM5C12D8T?

A1: It is a compact Modicon TM5 expansion block with 12 digital inputs and 8 transistor outputs.

Q2: How many total I/O points does it provide?

A2: It provides 20 digital I/O points.

Q3: What input type does it use?

A3: It uses 24 V DC sink digital inputs.

Q4: What output type does it use?

A4: It uses 24 V DC source transistor outputs.

Q5: What is the maximum output current?

A5: Each output supports up to 0.5 A.

Q6: Can the internal modules be replaced separately?

A6: No. The internal electronic sections are integrated into the compact block.

Q7: Does it support hot swapping?

A7: No. The system must be de-energized before removal or installation.

Q8: What distinguishes it from TM5C24D18T?

A8: TM5C12D8T provides 20 I/O points for smaller machine sections, while TM5C24D18T provides 42 points for larger centralized installations.
