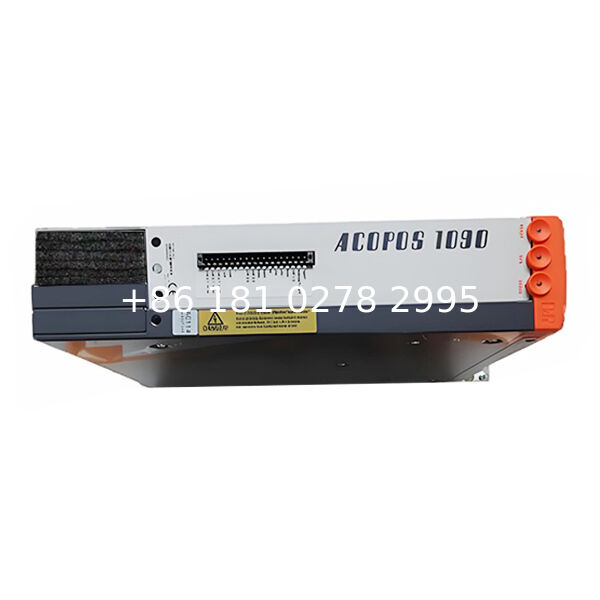

The B&R 8V1090.00-2 is an ACOPOS single-axis servo drive for industrial machinery using a three-phase 400 to 480 VAC supply.
This drive is rated at 4 kW with 8.8 A output current. It is suitable for servo-controlled axes such as rotary tables, transfer mechanisms, feeders, packaging-machine axes, printing equipment, and medium-size handling systems.
The unit includes an integrated line filter and braking resistor. This helps reduce the number of separate components required in compatible drive cabinet configurations.
The ACOPOS design uses plug-in modules for communication and motor-feedback functions. Before replacing an installed drive, verify the original plug-in modules because the encoder, resolver, fieldbus, and interface configuration depend on the fitted hardware.
The 8V1090.00-2 is a servo drive only. It should not be described as a PLC, servo motor, standalone motion controller, power supply module, inverter, or industrial computer.
Key Features
Single-axis ACOPOS servo drive
Three-phase 400 to 480 VAC supply
8.8 A rated output current
4 kW rated power
Integrated line filter
Integrated braking resistor
Electronic restart inhibit
Modular plug-in architecture
Plug-in electrical connections
Compatible with configured feedback modules
Suitable for cabinet-mounted motion systems
Typical Applications
Packaging machinery
Rotary indexing systems
Servo-driven transfer units
Assembly equipment
Printing and converting machines
Material handling mechanisms
Feeding systems
Industrial servo drive replacement projects
Installation Notes
Confirm the original model number, mains voltage, rated current, motor configuration, braking arrangement, and fitted plug-in modules before replacement.
Install the drive inside a properly grounded electrical cabinet.
Verify motor wiring, encoder or resolver wiring, braking resistor condition, shielding arrangement, machine parameters, and restart inhibit circuit before commissioning.
Do not move plug-in modules from another drive unless the original hardware configuration has been confirmed compatible.
FAQ
Q
Is 8V1090.00-2 a servo motor
A
No it is a single-axis AC servo drive
Q
What mains voltage does this model use
A
It operates from three-phase 400 to 480 VAC supply
Q
What is the rated power
A
The rated power is 4 kW
Q
What is the rated output current
A
The rated output current is 8.8 A
Q
Does this drive include a braking resistor
A
Yes it includes an integrated braking resistor
Q
Are the communication and encoder interfaces fixed
A
No these functions depend on the installed plug-in modules
