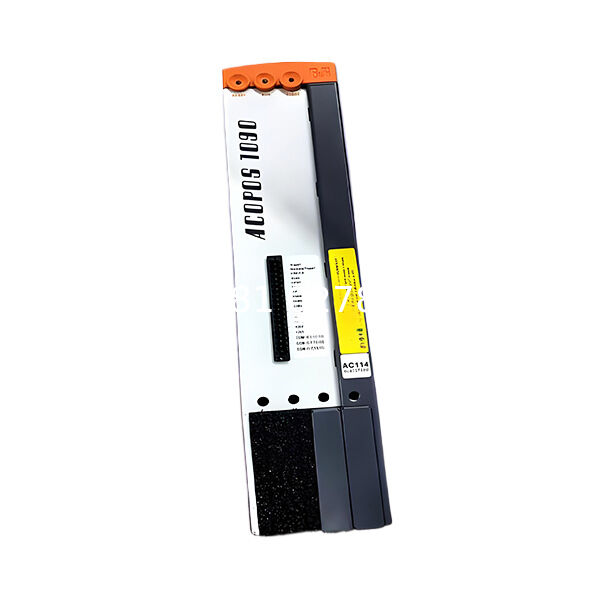

The B&R 8V1090.001-2 is an ACOPOS 1090 servo drive module used for industrial motion control and servo axis applications. It is designed to control servo motors in machine automation systems that require stable speed response, accurate positioning, reliable torque control, and compact cabinet-mounted drive performance.

This model supports 3-phase 400-480V AC input and provides 8.8A output current with 4kW rated power. The 8V1090.001-2 is the coated version, offering additional board protection compared with the standard non-coated version. It also includes an integrated line filter, integrated braking resistor, plug-in connector design, and electronic safe restart interlock.

The 8V1090.001-2 can be used in packaging machinery, printing equipment, material handling systems, conveyor systems, CNC auxiliary axes, robotic motion axes, textile machinery, inspection equipment, and automated production lines. It is also suitable for servo drive replacement, ACOPOS drive cabinet repair, production line maintenance, retrofit projects, and spare parts inventory.

For replacement applications, the complete model number 8V1090.001-2 should be checked carefully. Similar ACOPOS 1090 drive modules may have different coated or non-coated board versions, current ratings, voltage classes, plug-in module requirements, communication options, feedback modules, braking configuration, and safety function configuration. Before ordering, please confirm the original drive label, motor model, control system, plug-in module, input voltage, cabinet layout, and wiring condition.

Dengfeng supplies B&R ACOPOS servo drives, ACOPOSmulti modules, ACOPOS P3 drives, 8LS servo motors, motor cables, encoder cables, PLC modules, industrial PCs, power panels, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, connector condition, housing appearance, cooling area, and packaging according to your request.

Key Features

• B&R 8V1090.001-2 ACOPOS 1090 servo drive module
• 3-phase 400-480V AC input
• 8.8A output current
• 4kW rated power
• Coated board version for additional protection
• Integrated line filter
• Integrated braking resistor
• Electronic safe restart interlock
• Plug-in connector design for cabinet wiring
• Suitable for servo motor control and motion axis drive systems
• Useful for repair, replacement, retrofit, and spare parts supply

Typical Applications

The B&R 8V1090.001-2 ACOPOS servo drive can be used in:

• Servo axis control systems
• Packaging machinery
• Printing machinery
• Conveyor and material handling systems
• CNC auxiliary axes
• Robotic motion axes
• Textile machinery
• Automated inspection equipment
• Production line drive cabinets
• Servo drive replacement and spare parts maintenance

FAQ

Q1: What is B&R 8V1090.001-2?
A1: It is an ACOPOS 1090 servo drive module used for industrial motion control and servo motor axis control.

Q2: What is the rated power of this drive?
A2: The rated power is 4kW.

Q3: What is the output current of 8V1090.001-2?
A3: The output current is 8.8A.

Q4: What input voltage does this model support?
A4: It supports 3-phase 400-480V AC input.

Q5: What is the difference between 8V1090.001-2 and 8V1090.00-2?
A5: 8V1090.001-2 is the coated version, while 8V1090.00-2 is the standard non-coated version.

Q6: Does this drive include a line filter?
A6: Yes. It includes an integrated line filter.

Q7: Does this model include a braking resistor?
A7: Yes. It includes an integrated braking resistor.

Q8: What does electronic safe restart interlock mean?
A8: It is a safety-related function designed to help prevent unintended restart when the drive is integrated correctly into the machine safety system.

Q9: Can this drive be used as a replacement part?
A9: Yes. It can be used for ACOPOS servo drive replacement, but the complete model number, motor model, plug-in modules, voltage class, and system configuration must be confirmed before ordering.

Q10: What should I check before purchasing?
A10: Please check the original drive label, motor model, plug-in module type, input voltage, wiring layout, control system, and cabinet installation space.

Q11: Can you help confirm compatibility?
A11: Yes. Please send photos of the original drive label, cabinet installation position, connected motor label, and plug-in module information.
