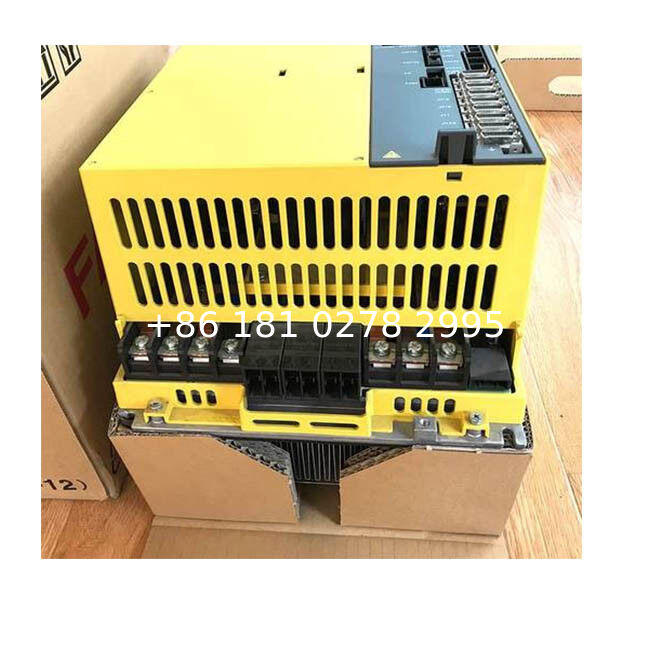

FANUC A06B-6320-H364 Servo Spindle Amplifier 80/80/80-18-B for CNC Machine Tools

The FANUC A06B-6320-H364 is a Beta i-B Series integrated servo and spindle amplifier module for CNC machine-tool drive systems.

Its amplifier designation is Beta i SVSP 80/80/80-18-B. The module combines three servo amplifier channels and one spindle amplifier section in a single cabinet-mounted drive unit. This integrated architecture reduces the number of separate drive modules required inside a compatible CNC electrical cabinet.

The three servo channels are identified by the 80/80/80 designation, while the spindle section is identified by the 18 designation. The exact connected motor combination must be confirmed from the original machine documentation and amplifier configuration before replacement.

The module operates from a three-phase 200 to 240 VAC supply at 50 or 60 Hz. Available nameplate data identifies a rated input current of 82 A at 200 VAC.

The A06B-6320-H364 is used to control compatible FANUC servo axes and an AC spindle motor within the same CNC drive architecture. It is not a synchronous servo motor, standalone PLC, I/O module, POWERLINK device, or general-purpose frequency inverter.

Key Features

Beta i-B integrated drive architecture

Three servo amplifier channels

Integrated spindle amplifier section

80/80/80 servo-channel configuration

18 spindle-amplifier configuration

Three-phase 200 to 240 VAC input

50/60 Hz supply frequency

82 A rated input at 200 VAC

Combined servo and spindle control

Compatible with FANUC CNC systems

Integrated alarm diagnostics

Forced-air cooling

Cabinet-mounted drive module

Typical Applications

CNC machining centers

CNC milling machines

CNC turning centers

CNC drilling and tapping machines

Industrial machine tools

Servo-axis and spindle-drive systems

FANUC CNC maintenance projects

Beta i-B amplifier replacement

Machine-tool control cabinet repair

Installation Notes

Confirm that the original amplifier model is A06B-6320-H364 before replacement.

Check the complete nameplate, including the Beta i SVSP 80/80/80-18-B designation, input-voltage class, motor models, servo-axis assignments, spindle motor, feedback cables, and CNC parameters.

Do not use A06B-6320-H223 as a direct substitute without engineering confirmation. It is a different Beta i SVSP amplifier configuration.

Before removing the original unit, record the cable positions and back up applicable CNC and drive parameters.

Verify the following before commissioning:

Main power wiring

Servo motor connections

Spindle motor connection

Feedback cable assignment

Cooling fans

Grounding and shielding

CNC communication wiring

Alarm status

Axis movement and spindle rotation

FAQ

Q

What type of product is A06B-6320-H364

A

It is a Beta i-B integrated servo and spindle amplifier module for FANUC CNC systems

Q

What is the amplifier designation

A

The amplifier designation is Beta i SVSP 80/80/80-18-B

Q

How many servo channels are included

A

The module includes three servo amplifier channels

Q

Does it also control a spindle motor

A

Yes it includes an integrated spindle amplifier section

Q

What input voltage does it require

A

It uses a three-phase 200 to 240 VAC supply at 50 or 60 Hz

Q

Is A06B-6320-H364 a servo motor

A

No it is an amplifier module used to control compatible servo and spindle motors

Q

Is A06B-6320-H223 the same product

A

No A06B-6320-H223 is a different Beta i SVSP amplifier configuration and should have a separate product page
