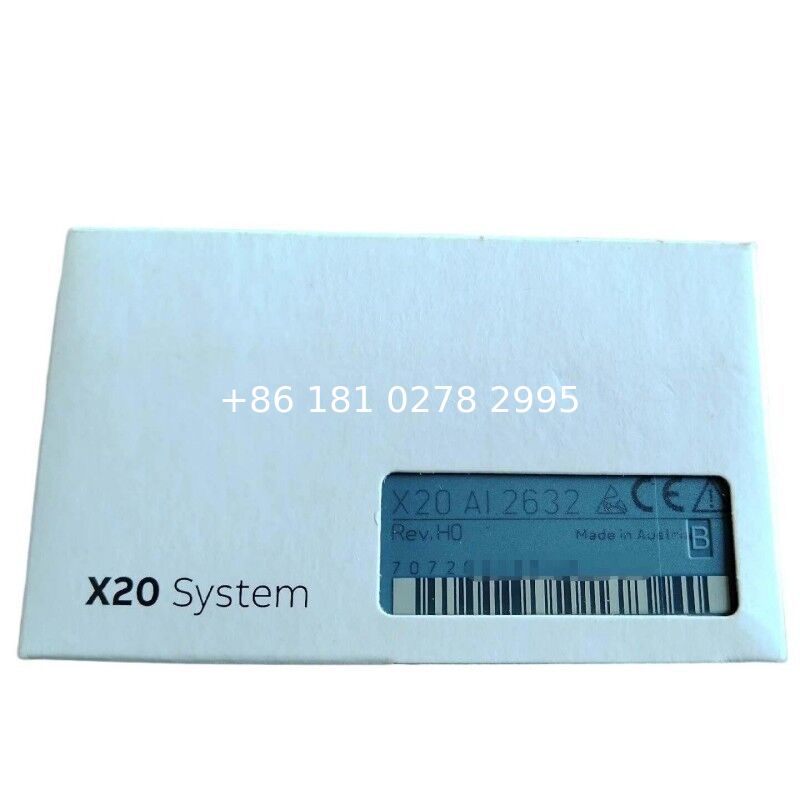

B&R X20AI2632 2 Channel 16 Bit Analog Input Module ±10V 0-20mA

The B&R X20AI2632 is a two-channel analog input module for X20 automation systems. It is designed to acquire voltage or current signals from transmitters, sensors, measurement devices, and process instruments connected to a compatible X20 controller.

Each input can be wired for either ±10 V voltage signals or 0 to 20 mA current signals. The module uses 16-bit conversion and simultaneous channel conversion, helping both analog channels be sampled within the same conversion process.

With a 50 μs conversion time for all inputs, the X20AI2632 is suitable for machinery that requires fast analog signal acquisition without using the oversampling functions found on X20AI2636.

This module is suitable for pressure, flow, tension, speed-reference, and process-monitoring signals in packaging machines, assembly systems, test equipment, and production lines.

This product is an analog input module only. It should not be described as a safety module, servo drive, POWERLINK driver, PLC controller, power supply, or motion controller.

Key Features

Two analog input channels

±10 V voltage input support

0 to 20 mA current input support

16-bit converter resolution

Simultaneous input conversion

50 μs conversion time for all inputs

Differential analog inputs

20 MΩ voltage input impedance

Third-order 10 kHz low-pass filter

±12 V common-mode range

Channel-to-bus electrical isolation

Compact X20 I/O module format

Typical Applications

Pressure transmitter monitoring

Flow signal acquisition

Process measurement systems

Tension monitoring equipment

Analog speed-reference signals

Packaging machinery

Assembly equipment

Industrial test systems

X20 automation system expansion

Installation Notes

Install the X20AI2632 on a compatible X20 bus module and use the correct terminal block for the required analog wiring.

Select voltage or current wiring according to the connected device. Confirm whether the external signal is ±10 V or 0 to 20 mA before connection.

Use shielded cable where required and route analog wiring separately from motor, inverter, and switching-power cables.

The module requires one X20BM11 bus module and one X20TB06 or X20TB12 terminal block, ordered separately.

FAQ

Q

Is X20AI2632 a PLC controller

A

No it is a two-channel analog input module for the X20 automation system

Q

How many analog inputs does it have

A

It has two analog input channels

Q

What input signals are supported

A

It supports ±10 V voltage signals or 0 to 20 mA current signals

Q

What is the converter resolution

A

It uses 16-bit digital conversion

Q

Does it support simultaneous conversion

A

Yes both input channels are converted simultaneously

Q

Are the terminal block and bus module included

A

No the X20BM11 bus module and X20TB06 or X20TB12 terminal block must be ordered separately
