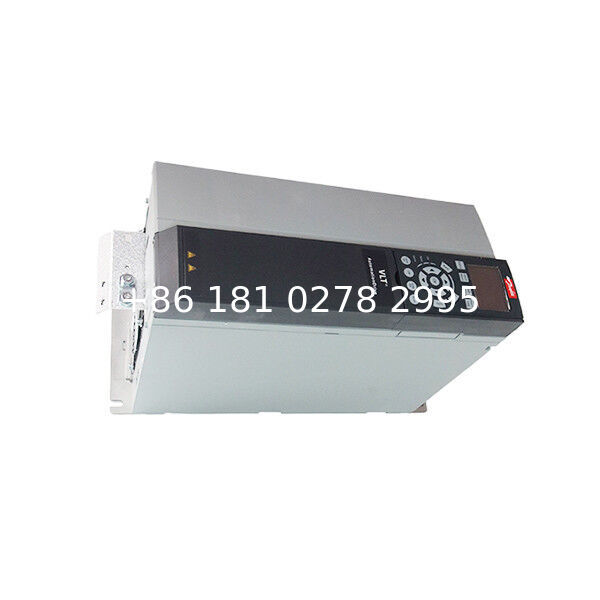

The Danfoss 131B0152 is a VLT AutomationDrive FC-302 frequency converter with the full model number FC-302P7K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX. It is designed for industrial motor speed control applications that require stable operation, flexible motor control, and reliable performance in automated production equipment.

This FC-302 model is rated at 7.5kW / 10HP and supports three phase 380-500V AC mains input. It uses an IP20 / chassis enclosure, RFI filter, graphical local control panel, coated PCB, standard cable entries, and A3 frame size. This configuration is supplied without a brake chopper, without mains option, and without A option, B option, C1 option, or D option.

The VLT AutomationDrive FC-302 series is widely used in industrial automation systems where motor speed, torque control, process stability, and machine uptime are important. This 7.5kW model can be used in conveyors, pumps, fans, mixers, packaging machinery, textile equipment, material handling systems, production line equipment, and general machine control applications.

For replacement applications, the complete model code must be checked carefully. FC-302 drives may look similar from the outside, but they can differ by power rating, voltage class, enclosure, RFI filter, brake chopper option, local control panel, PCB coating, fieldbus card, I/O option, software option, frame size, and terminal configuration. The full model FC-302P7K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX and order code 131B0152 should be confirmed before ordering.

This model code shows no A option and no B option, so it should not be described as a PROFIBUS, PROFINET, EtherNet/IP, or special fieldbus version unless an actual option card is installed and verified by photo. If the old drive has a communication card or I/O card installed, the option card model should be checked separately before replacement.

Before ordering, please check the drive nameplate, order code, full model number, motor power, mains voltage, option card labels, control terminal wiring, power terminal wiring, parameter backup, and machine application. Clear photos of the old drive label, option card, keypad, terminal area, and control cabinet can help confirm compatibility and reduce replacement risk.

Dengfeng supplies Danfoss VLT AutomationDrive FC-302 frequency converters, FC-301 drives, FC-102 drives, soft starters, control panels, option cards, power modules, PLC modules, servo drives, motors, sensors, cables, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, housing condition, terminal condition, keypad condition, fan condition, and packaging according to your request.

Key Features

• Danfoss 131B0152 VLT AutomationDrive FC-302 frequency converter
• Full model number FC-302P7K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX
• 7.5kW / 10HP power rating
• Three phase 380-500V AC mains input
• IP20 / chassis enclosure
• RFI filter configuration
• Graphical local control panel
• Coated PCB
• No brake chopper
• Standard cable entries
• A3 frame size
• No A option, no B option, no C1 option, no D option
• Suitable for motor speed control, machine repair, retrofit, and spare parts supply

Typical Applications

The Danfoss 131B0152 FC-302 frequency converter can be used in:

• Industrial motor speed control systems
• Packaging machinery
• Conveyor systems
• Material handling equipment
• Pumps and fans
• Mixers and agitators
• Textile machinery
• Printing machinery
• Production line automation
• Machine retrofit projects
• Control cabinet replacement
• Factory maintenance spare parts

FAQ

Q1: What is Danfoss 131B0152?
A1: Danfoss 131B0152 is a VLT AutomationDrive FC-302 frequency converter with the full model number FC-302P7K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX.

Q2: What is the power rating of FC-302P7K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX?
A2: This model is rated at 7.5kW / 10HP.

Q3: What input voltage does this FC-302 drive support?
A3: It supports three phase 380-500V AC mains input.

Q4: What enclosure type does this model use?
A4: It uses an IP20 / chassis enclosure, suitable for control cabinet installation.

Q5: Does Danfoss 131B0152 include a brake chopper?
A5: No. This configuration is supplied without a brake chopper. Please check the braking requirement before using it in high-inertia or frequent braking applications.

Q6: Does this drive include a graphical local control panel?
A6: Yes. This model includes a graphical local control panel.

Q7: Is the PCB coated?
A7: Yes. The model code indicates coated PCB.

Q8: Does this model include PROFIBUS, PROFINET, or EtherNet/IP?
A8: No. According to the model code, this configuration has no A option and no B option. It should not be described as a fieldbus version unless an option card is physically installed and confirmed.

Q9: What frame size is this FC-302 model?
A9: The frame size is A3.

Q10: Can this drive replace another FC-302 model?
A10: It can replace the same model when the power rating, voltage class, enclosure, brake option, filter, option cards, software, frame size, and machine parameter settings match.

Q11: What should I check before ordering?
A11: Please check the drive nameplate, order code, full model number, motor power, mains voltage, option card labels, wiring terminals, parameter backup, and machine application before ordering.

Q12: Can you help confirm compatibility?
A12: Yes. Please send photos of the old drive nameplate, option card label, control terminals, power terminals, keypad display, and machine cabinet layout. We can help check whether Danfoss 131B0152 matches your replacement requirement.
