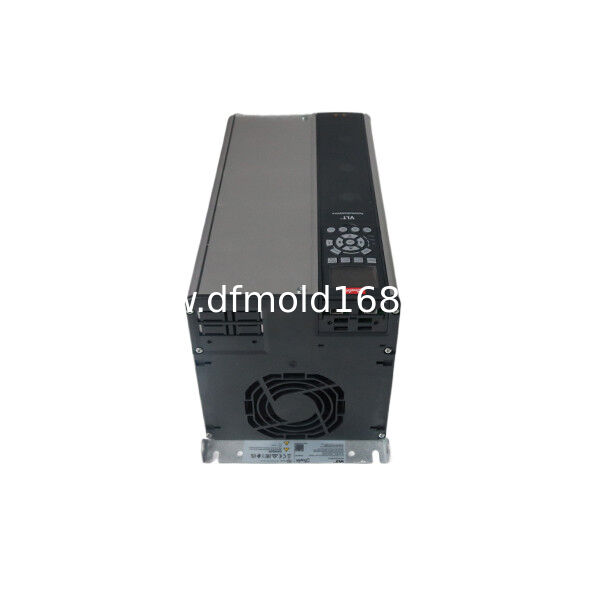

The Danfoss 131B0007 is a VLT AutomationDrive FC 302 variable frequency drive for three-phase 200 to 240 VAC motor-control systems.
This exact configuration is rated at 2.2 kW and uses an IP20 chassis enclosure in A2 frame size. It is designed for installation inside a correctly grounded electrical cabinet where an AC motor requires adjustable speed, acceleration, deceleration, and operating-frequency control.
The H1 RFI filter configuration is included for electromagnetic compatibility requirements. This unit does not include a local control panel, so commissioning and parameter access should follow the original machine arrangement, such as an external control interface, installed option hardware, or the existing programming setup.
This version does not include a brake chopper. The original machine braking method must be checked before replacement, especially on high-inertia loads, rapid deceleration systems, lifting equipment, and applications with frequent stopping cycles.
This product is a variable frequency drive. It should not be described as a servo drive, PLC controller, standalone motion controller, power supply module, or brake unit.
Key Features
2.2 kW variable frequency drive
Three-phase 200 to 240 VAC input
IP20 chassis enclosure
A2 frame size
H1 RFI Class A1 and B C1 filter
10.6 A continuous output current
17 A intermittent output current
No brake chopper
No local control panel
No MCO motion-control option
Standard cable-entry arrangement
Cabinet-mounted drive design
Typical Applications
Conveyor systems
Pumps and fans
Packaging machinery
Mixing equipment
Material handling systems
Processing machinery
Speed-controlled AC motors
Industrial machine retrofit projects
Installation Notes
Confirm the exact part number, full type code, input-voltage class, motor rating, frame size, installed control options, and saved parameters before replacement.
This unit operates from a three-phase 200 to 240 VAC supply. Do not replace it with a 380 to 500 VAC FC 302 version without confirming the machine supply voltage and motor data.
This configuration does not include a local control panel. Retain the original commissioning method and verify how parameters are accessed before startup.
This model does not include a brake chopper. Check the original braking arrangement and motor-load conditions before commissioning.
FAQ
Q
Is 131B0007 a servo drive
A
No it is a VLT AutomationDrive FC 302 variable frequency drive
Q
What motor power is this model rated for
A
The rated motor power is 2.2 kW
Q
What input voltage does this drive require
A
It requires a three-phase 200 to 240 VAC supply
Q
Does this model include a brake chopper
A
No this configuration does not include a brake chopper
Q
Does this unit include a local control panel
A
No this version is supplied without a local control panel
Q
Does it include an MCO motion-control option
A
No this configuration has no MCO option installed
