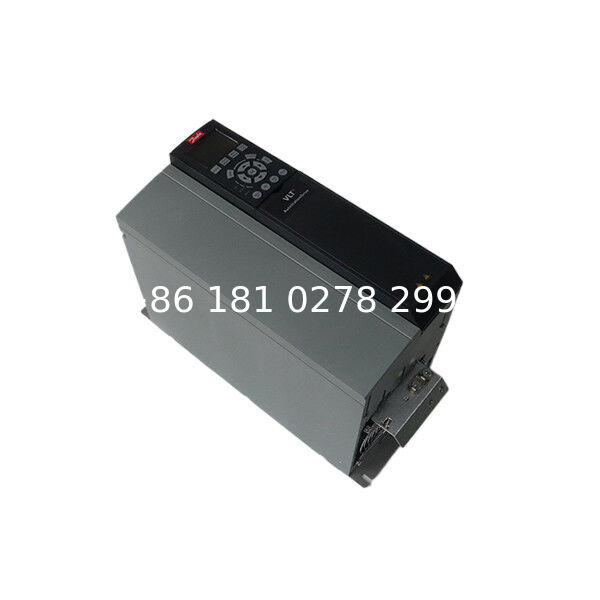

The Danfoss 131B9589 is a VLT AutomationDrive FC 302 variable frequency drive designed for precise speed and torque control in demanding industrial motor applications. Its complete model designation is FC-302P11KT5E20H2BGXXXXSXXXXAXBXCXXXXD0.
This drive provides an 11 kW or 15 HP heavy-duty rating and operates from a three-phase 380–500 V AC power supply. Under normal-overload operating conditions, the platform can support a higher power rating depending on the application and motor load profile.
The FC 302 uses an IP20 chassis enclosure and B3 frame, making it suitable for installation inside a protected electrical cabinet. Proper cabinet ventilation, grounding, cable routing and environmental protection must be provided during installation.
A built-in brake chopper is included in this configuration. This feature allows a correctly selected external braking resistor to dissipate regenerative energy during rapid deceleration, frequent stopping or high-inertia operation.
The drive is also equipped with a graphical local control panel. The panel gives technicians direct access to operating data, parameter settings, alarm history and commissioning functions.
A distinctive feature of order code 131B9589 is the MCB 107 24 V DC backup option. This option can maintain the control electronics and communication-related control functions from an external 24 V DC supply when the main AC power is unavailable.
The complete model code confirms that this drive does not include a factory-installed A-option fieldbus card. It should therefore not be advertised as including PROFIBUS DP, PROFINET, EtherNet/IP or another optional industrial communication protocol unless an additional module has been installed separately.
The printed circuit boards in this configuration are not coated. Installation in humid, dusty, chemically aggressive or contaminated environments requires a suitable protected cabinet.
The Danfoss 131B9589 is suitable for new automation projects, machine upgrades and replacement of an existing FC 302 with the same order code. The full model string should always be checked because different FC 302 units can have substantial differences in braking, communication, safety, coating and backup-power options.
Key Features
11 kW heavy-duty VLT AutomationDrive FC 302
15 HP rated motor output
Three-phase 380–500 V AC input
15 kW normal-overload power capability
Integrated brake chopper
MCB 107 external 24 V DC backup option
Graphical local control panel
IP20 chassis enclosure
B3 frame size
H2 RFI filter
Advanced motor speed regulation
Accurate torque control
Suitable for compatible asynchronous motors
Supports compatible permanent magnet motors
No factory-installed fieldbus option
Typical Applications
Industrial conveyor systems
Packaging production lines
Material handling machinery
Cranes and hoisting equipment
Industrial pumps
Ventilation fans
Mixing and processing machines
Textile production equipment
Printing machinery
Automated assembly lines
Machine-tool auxiliary systems
Warehouse automation
Food-processing equipment
Industrial production machinery
High-inertia motor applications
Heavy-Duty and Normal-Overload Ratings
The FC 302 platform can be rated differently according to the required overload capability.
Heavy-Duty Rating
11 kW
This rating is intended for applications requiring higher short-term overload torque.
Normal-Overload Rating
15 kW
This rating may be applied to variable-torque or lower-overload applications when permitted by the motor and application design.
The correct rating should be selected according to:
Motor current
Required starting torque
Acceleration time
Load characteristics
Overload duration
Ambient temperature
Switching frequency
Do not select the drive using only the higher normal-overload power value.
Brake Chopper Function
The built-in brake chopper allows the drive to work with a compatible external braking resistor.
This is useful for applications involving:
Rapid motor deceleration
Frequent starting and stopping
High-inertia rotating equipment
Fast conveyor stopping
Reversing machinery
Vertical loads
Regenerative operating cycles
The braking resistor must be selected according to Danfoss requirements. Important selection factors include minimum resistance, peak braking power, average braking power and duty cycle.
The braking resistor is normally supplied separately unless specifically included in the sales agreement.
MCB 107 24 V DC Backup
The D0 configuration includes an MCB 107 24 V DC backup option.
This option allows an external 24 V DC supply to maintain selected drive control functions when the main AC supply is disconnected.
Typical benefits may include:
Maintaining control electronics power
Keeping control signals available
Supporting diagnostic access
Retaining selected communication functions
Reducing control-system restart delays
Supporting planned mains shutdown procedures
The external 24 V DC supply must be wired and protected according to the applicable Danfoss documentation.
Graphical Local Control Panel
The included graphical LCP provides access to drive status and configuration.
Typical panel functions include:
Parameter navigation
Operating status display
Output frequency monitoring
Motor current monitoring
Alarm and warning review
Local start and stop control
Speed reference adjustment
Parameter copying
Commissioning assistance
Troubleshooting support
Communication Configuration
The complete type code specifies no factory-installed A-option fieldbus card.
The standard 131B9589 configuration should not be listed as including:
PROFIBUS DP
PROFINET
EtherNet/IP
DeviceNet
CANopen
Modbus TCP
A compatible communication card may be installed separately. Any optional communication module should be verified by inspecting the physical drive and checking the module part number.
Environmental Notice
The printed circuit boards are not coated.
The drive should be installed in a clean, dry and adequately ventilated electrical cabinet. Additional enclosure protection may be necessary in environments containing:
High humidity
Conductive dust
Oil mist
Coolant spray
Chemical vapors
Corrosive gases
Metal particles
For harsh environments, a coated-PCB FC 302 configuration may be more suitable.
Compatibility Notice
The correct replacement identification is:
Order Code
131B9589
Full Model
FC-302P11KT5E20H2BGXXXXSXXXXAXBXCXXXXD0
Do not select a replacement using only the FC 302 series name or 11 kW power rating.
Different FC 302 configurations may vary in:
Input voltage
Power rating
Enclosure type
Frame size
Brake chopper
RFI filter
Control panel
PCB coating
Fieldbus option
Safety option
Additional I/O
24 V backup module
Software configuration
The complete model code should match the original drive whenever possible.
Installation Guidelines
Confirm the three-phase 380–500 V AC mains supply.
Install the drive inside a suitable protected cabinet.
Maintain the specified ventilation clearance.
Use correctly rated input and motor cables.
Connect protective grounding before applying power.
Separate motor cables from control wiring.
Use shielded motor cable where EMC compliance is required.
Enter the correct motor nameplate data.
Select the correct heavy-duty or normal-overload rating.
Set suitable acceleration and deceleration times.
Select the braking resistor according to the required duty.
Wire the 24 V DC backup supply correctly.
Check motor rotation before full operation.
Allow the DC-link capacitors to discharge before servicing.
Installation should be performed by qualified electrical personnel.
FAQ
Q1: What is the heavy-duty power rating of Danfoss 131B9589?
A1: The heavy-duty rating is 11 kW or approximately 15 HP.
Q2: Can this drive operate a 15 kW motor?
A2: The official configuration lists a 15 kW normal-overload rating. Suitability depends on the motor current, load type, overload requirement and operating conditions.
Q3: What is the complete model number?
A3: The full model designation is FC-302P11KT5E20H2BGXXXXSXXXXAXBXCXXXXD0.
Q4: What input voltage does the drive require?
A4: It operates from a three-phase 380–500 V AC power supply.
Q5: Does this model include a brake chopper?
A5: Yes. An integrated brake chopper is included.
Q6: Is a braking resistor included?
A6: The braking resistor is normally a separately selected component unless explicitly included in the quotation.
Q7: Does the drive include a graphical control panel?
A7: Yes. This configuration includes a graphical local control panel.
Q8: Does 131B9589 include PROFIBUS DP?
A8: No. The standard configuration has no factory-installed A-option communication card.
Q9: What does the D0 option mean?
A9: The D0 option identifies an MCB 107 24 V DC backup module.
Q10: Are the printed circuit boards coated?
A10: No. This configuration uses uncoated printed circuit boards.
Q11: What is the enclosure rating?
A11: It uses an IP20 chassis enclosure intended for installation inside a protected electrical cabinet.
Q12: Can another 11 kW FC 302 directly replace this model?
A12: Not automatically. The brake chopper, panel, frame size, RFI filter, 24 V backup and other options must also be compared.
