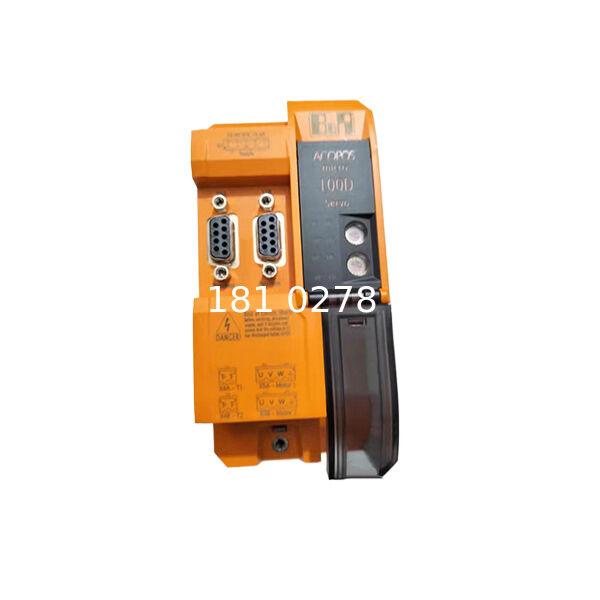

The B&R 80SD100XD.C033-01 is an ACOPOSmicro 100D stepper motor module designed for compact and precise stepper motor control in industrial automation systems. It is used for controlling two 2-phase bipolar stepper motors with full bridge output stages, making it suitable for machines that require reliable positioning, indexing, feeding, and synchronized motion.

This module supports 256 microsteps per step, helping improve motion smoothness and positioning resolution in stepper axis applications. It uses the X2X Link interface and supports a 24-64V DC ±25% power supply. The 80SD100XD.C033-01 provides 2 motor connections and 10A continuous current, allowing it to control two stepper axes in a compact ACOPOSmicro system.

The model configuration includes 2x 5V SSI absolute encoder inputs, 2 digital inputs rated 24V DC sink, and 1 digital output rated 24V DC 1A. The digital inputs can be used as trigger inputs for machine timing and motion control functions. The module also includes motor holding brake connection, enable input, automatic motor identification, and independent settings for holding current, boost current, and continuous current.

The B&R 80SD100XD.C033-01 is commonly used in packaging machinery, feeder systems, conveyor equipment, textile machinery, labeling machines, printing equipment, pick-and-place units, indexing mechanisms, material handling systems, and compact machine automation. It is especially useful where two stepper motor axes need to be controlled from one compact module.

For replacement applications, the complete model number 80SD100XD.C033-01 must be checked carefully. Similar ACOPOSmicro stepper modules may have different encoder input types, motor connection quantities, heat sink designs, analog input options, digital I/O configuration, and system requirements. Please do not replace the module only by appearance or by the 80SD100XD family name.

Before ordering, please confirm the old module label, X2X Link system configuration, power supply voltage, motor type, encoder type, terminal block type, wiring layout, brake wiring, and machine axis function. Terminal blocks are ordered separately, so please check whether the existing terminals can be reused or whether new terminals are required for your installation.

Dengfeng supplies B&R ACOPOSmicro stepper motor modules, ACOPOS servo drives, X20 I/O modules, X67 modules, Power Panel units, industrial PCs, servo motors, stepper motors, cables, terminal blocks, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, housing condition, connector condition, terminal area, and packaging according to your request.

Key Features

• B&R 80SD100XD.C033-01 ACOPOSmicro stepper motor module
• 100D stepper motor module for compact motion control
• Controls 2 stepper motors
• Suitable for 2-phase bipolar stepper motors
• Full bridge motor output design
• 256 microsteps per step
• X2X Link interface
• 2x 5V SSI absolute encoder inputs
• 24-64V DC ±25% power supply
• 2 motor connections
• 10A continuous current
• 2 digital inputs, 24V DC, sink
• 1 digital output, 24V DC, 1A
• Motor holding brake connection
• Enable input and automatic motor identification
• Terminal blocks must be ordered separately

Typical Applications

The B&R 80SD100XD.C033-01 ACOPOSmicro stepper motor module can be used in:

• ACOPOSmicro motion control systems
• Stepper motor positioning axes
• Packaging machinery
• Feeder and indexing systems
• Conveyor equipment
• Labeling machines
• Printing machinery
• Textile machinery
• Pick-and-place equipment
• Material handling systems
• Compact machine automation
• Production line maintenance
• Machine retrofit and spare parts replacement

FAQ

Q1: What is B&R 80SD100XD.C033-01?
A1: B&R 80SD100XD.C033-01 is an ACOPOSmicro stepper motor module used for controlling two stepper motor axes in industrial automation systems.

Q2: Is 80SD100XD.C033-01 a servo drive?
A2: It should be described as a stepper motor module or stepper drive module, not as a standard servo drive. It is part of the B&R ACOPOSmicro motion control range.

Q3: How many motors can this module control?
A3: It can control 2 stepper motors.

Q4: What type of stepper motors does it support?
A4: It supports 2-phase bipolar stepper motors with full bridge control.

Q5: What is the microstep resolution of 80SD100XD.C033-01?
A5: It supports 256 microsteps per step.

Q6: What encoder inputs does this module have?
A6: This model has 2x 5V SSI absolute encoder inputs.

Q7: What power supply does this module require?
A7: It requires a 24-64V DC ±25% power supply.

Q8: What is the continuous current rating?
A8: The continuous current rating is 10A.

Q9: Does 80SD100XD.C033-01 have digital inputs and outputs?
A9: Yes. It has 2 digital inputs rated 24V DC sink, which can be used as trigger inputs, and 1 digital output rated 24V DC 1A.

Q10: Does this module support a motor holding brake?
A10: Yes. It includes a motor holding brake connection. Please check the motor brake wiring and terminal configuration before replacement.

Q11: Are terminal blocks included with 80SD100XD.C033-01?
A11: The official product description states that terminal blocks must be ordered separately. Please check whether your existing terminal blocks can be reused.

Q12: Can 80SD100XD.C033-01 replace other 80SD100XD modules?
A12: It can replace the same model when the encoder type, I/O configuration, motor connections, power supply, terminal blocks, and machine configuration match. Similar models such as C011, C044, C0XX, or W versions may have different specifications.

Q13: What should I check before ordering?
A13: Please check the original module label, X2X Link configuration, motor type, encoder type, power supply, terminal block type, brake wiring, and machine axis function before ordering.

Q14: Can you help confirm compatibility?
A14: Yes. Please send photos of the old module label, terminal area, cabinet wiring, motor label, encoder connection, and machine installation position. We can help check whether 80SD100XD.C033-01 matches your replacement requirement.
