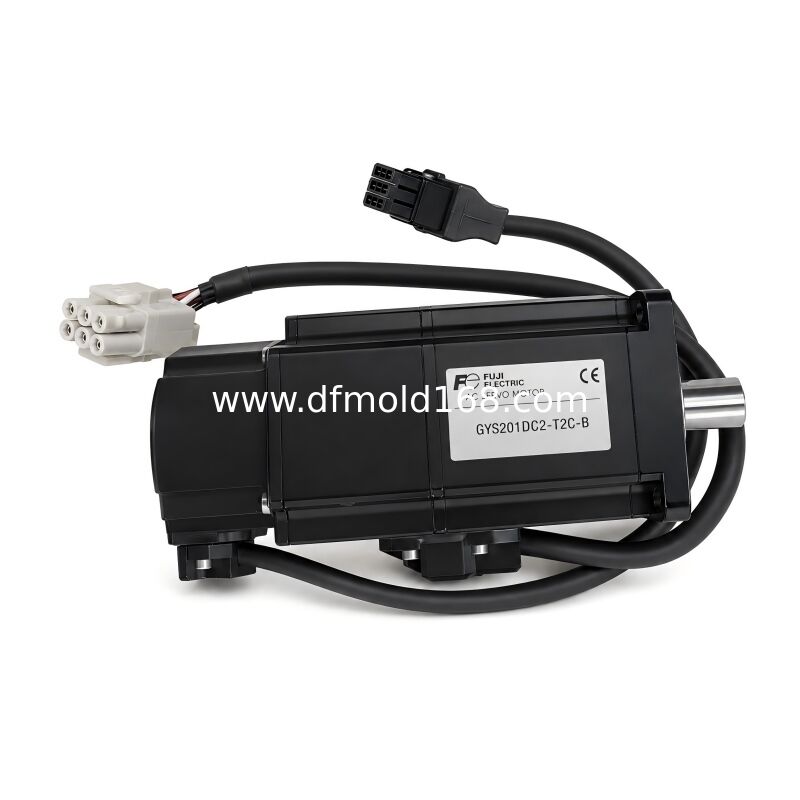

Fuji Electric GYS201DC2-T2C-B 200W Servo Motor 3000RPM with Brake

The Fuji Electric GYS201DC2-T2C-B is a 200 W ultra-low-inertia servo motor designed for compact positioning and indexing axes.

It provides a rated speed of 3000 rpm, rated torque of 0.637 N·m and maximum torque of approximately 1.91 N·m. The low-inertia rotor supports rapid acceleration and deceleration in high-cycle machinery.

This T2C-B configuration includes a 17-bit incremental encoder, keyed shaft with tapped center hole and an integrated holding brake.

Key Features

• 200 W rated output
• 3000 rpm rated speed
• 5000 rpm maximum speed
• 0.637 N·m rated torque
• 17-bit incremental encoder
• Ultra-low-inertia rotor
• Keyed and tapped shaft
• Integrated holding brake

Typical Applications

• Packaging machinery
• Labeling equipment
• Small indexing tables
• Conveyor positioning
• Automated assembly systems

Brake Configuration

The holding brake is intended to hold the motor shaft when servo power is removed.

It should not be used as the primary dynamic braking device for repeatedly stopping a moving load.

Shaft Configuration

The T2C configuration specifies:

• No shaft oil seal
• Straight keyed shaft
• Tapped center hole

Confirm shaft dimensions and coupling compatibility before replacement.

Model Difference

GYS201DC2-T2C-B

Keyed and tapped shaft

Holding brake included

GYS201DC2-T2C

Keyed and tapped shaft

Without holding brake

GYS201DC2-T2A-B

Straight keyed shaft

Holding brake included

Installation Notes

• Confirm the complete model number
• Verify the compatible servo amplifier
• Check encoder and motor cable types
• Confirm brake supply requirements
• Match shaft and coupling dimensions
• Back up the existing drive parameters
• Test brake release before operation

FAQ

Q1: What is the rated output?

A1: The motor is rated at 200 W.

Q2: What is the rated speed?

A2: Its rated speed is 3000 rpm.

Q3: Does it include a brake?

A3: Yes. The final “-B” indicates a holding-brake version.

Q4: What encoder does it use?

A4: It uses a 17-bit incremental encoder.

Q5: What shaft type is included?

A5: It has a keyed shaft with a tapped center hole and no oil seal.
