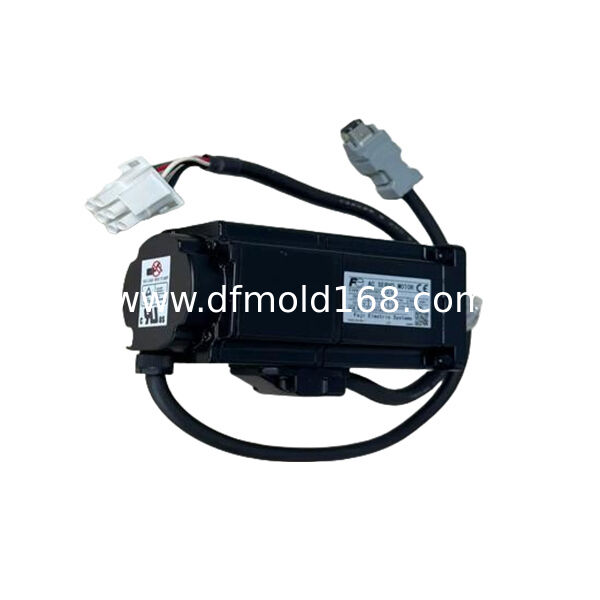

Fuji Electric GYS201DC1-SA 200W Servo Motor 3000RPM Absolute Encoder

The Fuji Electric GYS201DC1-SA is a 200 W ultra-low-inertia servo motor designed for fast positioning and frequent acceleration cycles.

It provides 0.637 N·m rated torque at 3000 rpm and supports speeds up to 5000 rpm. The 16-bit ABS/INC encoder can operate as incremental feedback or support an absolute position system when used with a compatible amplifier and battery.

The SA configuration includes a straight keyed shaft without an oil seal and does not include a holding brake.

Key Features

• 200 W rated output
• 3000 rpm rated speed
• 5000 rpm maximum speed
• 0.637 N·m rated torque
• 16-bit ABS/INC feedback
• Ultra-low-inertia rotor
• Straight keyed shaft
• No holding brake

Typical Applications

• Packaging machines
• Labeling equipment
• Conveyor positioning
• Small indexing axes
• Automated assembly systems

Encoder Configuration

The 16-bit ABS/INC encoder supports precise speed and position feedback.

Absolute position operation requires a compatible servo amplifier, correct battery configuration and matching motor feedback cable.

Model Configuration

GYS201DC1-SA

200 W

16-bit ABS/INC encoder

Keyed shaft

Without oil seal

Without brake

GYS201DC1-SA-B

Same motor and encoder configuration

Holding brake included

Installation Notes

• Confirm the complete model number
• Verify amplifier compatibility
• Check motor and encoder cables
• Match the keyed shaft and coupling
• Confirm that no holding brake is required
• Back up existing amplifier parameters
• Test rotation direction before operation

FAQ

Q1: What is the rated output?

A1: The motor is rated at 200 W.

Q2: What is the rated torque?

A2: Its rated torque is 0.637 N·m.

Q3: What is the maximum speed?

A3: It supports speeds up to 5000 rpm.

Q4: Does it include a holding brake?

A4: No. The brake-equipped version is GYS201DC1-SA-B.

Q5: What shaft configuration is supplied?

A5: It has a straight keyed shaft without an oil seal.
