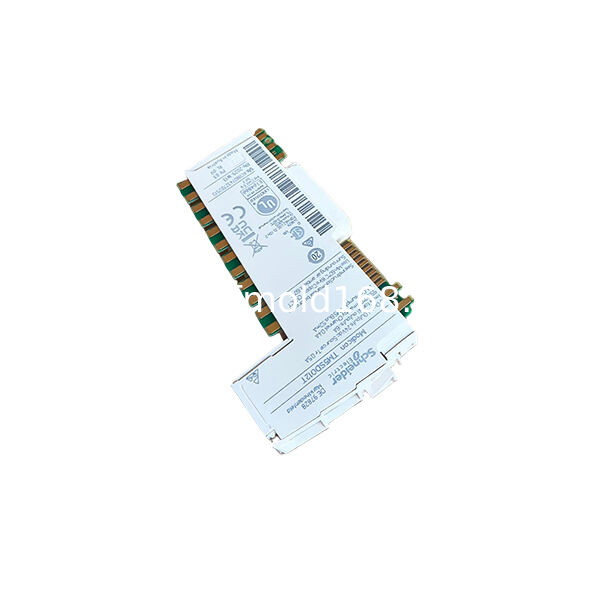

In modern automated systems, ensuring the reliable operation of output devices is as critical as monitoring sensor inputs. Unexpected failures of actuators like solenoid valves, indicators, or small relays can halt production, and diagnosing the root cause—be it a wiring fault, a failed coil, or a PLC command issue—can consume valuable time. The Schneider Electric Modicon TM5SDO4T discrete output module is engineered to transform output control from a simple command function into a diagnostically intelligent process. This module provides four independent 24V DC transistor output channels, each featuring a sophisticated 3-wire connection scheme. This design enables not only precise switching but also continuous, per-channel monitoring of the load circuit's health, delivering a new level of visibility and maintenance readiness to the control engineer.
The TM5SDO4T is specifically designed for applications where output reliability is paramount and rapid fault isolation is essential. Its 3-wire architecture (separate paths for power supply, output signal, and diagnostic feedback) allows the module to differentiate between a commanded OFF state and a fault condition, such as a wire break, a short circuit, or an open load. This capability is invaluable for critical control points—for example, a valve that must confirm it has de-energized for a safety sequence, or an indicator lamp that must be verified as functional. By providing immediate, channel-specific diagnostic data to the controller, this module shifts maintenance from a reactive, troubleshooting-heavy activity to a proactive, targeted response, significantly reducing Mean Time To Repair (MTTR).
Technical Specifications and Diagnostic Focus:
The operational intelligence of the TM5SDO4T lies in its integrated diagnostic circuitry. Unlike standard output modules that merely switch power, this module actively monitors the state of the connected load loop. If a commanded ON state does not result in the expected current flow (indicating an open circuit), or if a commanded OFF state sees unexpected current (indicating a short), the module flags the specific channel. This granular fault data is communicated directly to the TM5 controller, enabling the creation of detailed alarm messages that precisely identify the problem, such as "Valve V103 - Open Circuit Fault."
This module represents a strategic choice for enhancing system resilience. While high-density output modules like the TM5SDO12T optimize space for non-critical loads, the TM5SDO4T is deployed for those essential output points where failure cannot go unnoticed. It complements diagnostic input modules like the TM5SDI4D, creating a fully diagnosable I/O loop for critical machine functions. This targeted application of diagnostic I/O optimizes overall system cost while maximizing reliability where it matters most.
In summary, the Modicon TM5SDO4T is a pivotal component for building transparent and maintainable control systems. It elevates the role of a digital output from a simple executor to an intelligent, reporting node in the network. By delivering precise switching coupled with immediate fault detection, this module empowers engineers to design systems with higher availability, safer operations, and significantly streamlined maintenance workflows, directly contributing to enhanced overall equipment effectiveness (OEE).
