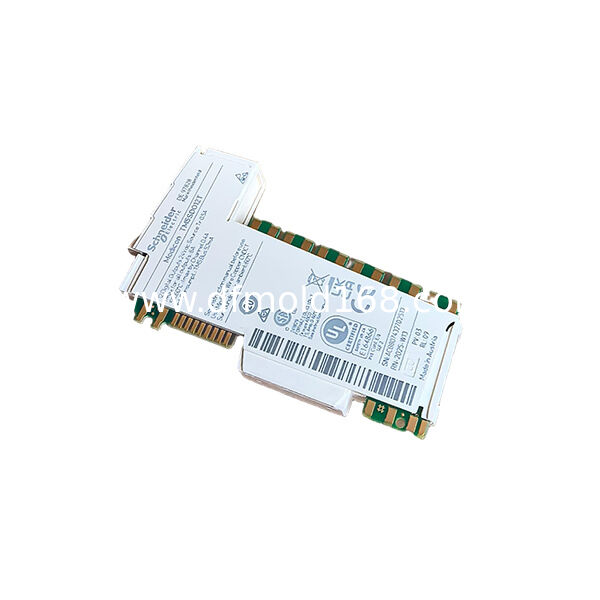

The Schneider Electric TM5SDO6T is a Modicon TM5 discrete output module designed for reliable 24 V DC transistor output control in modular automation systems.
Unlike relay output modules, the TM5SDO6T uses transistor switching technology, making it suitable for fast-response industrial devices such as solenoid valves, indicators, actuators and machine control components.
The module provides six source transistor output channels with a maximum current of 0.5 A per channel. It supports a total output current of up to 3 A and includes protection functions against short circuits and overload conditions.
Designed for the Modicon TM5 distributed I/O platform, the TM5SDO6T can be integrated with M258 controllers and LMC058 motion controllers for flexible machine automation architectures.
Its compact slice-based design helps reduce cabinet space while allowing machine builders to expand digital output capacity according to application requirements.
For replacement projects, confirm the complete TM5 configuration, including bus base and terminal block type, because TM5 electronic modules are designed to operate as part of a complete modular system.
Key Features
Original Modicon TM5 output module
6 digital transistor outputs
24 V DC source output design
0.5 A output current per channel
3 A maximum total output current
Short-circuit protection
Overload protection
Compact slice I/O architecture
DIN rail installation
Compatible with M258 and LMC058 controllers
Designed for machine automation systems
Typical Applications
Packaging machinery
Assembly equipment
Conveyor systems
Material handling machines
Valve control systems
Industrial actuators
Machine auxiliary control
OEM automation equipment
Production line control
Motion-control applications
Fast Transistor Output Control
The TM5SDO6T uses transistor output technology instead of mechanical relay contacts.
Advantages include:
Faster switching response
Longer service life
Suitable for repetitive switching
Lower mechanical wear
Better compatibility with high-cycle automation equipment
Typical controlled devices include:
Solenoid valves
Indicator lamps
Contactors through interfaces
Small actuators
Machine control components
Output Protection Function
The module includes protection features designed to improve system reliability.
Protection functions include:
Short-circuit protection
Overload protection
Thermal protection
Reverse polarity protection
When an output fault occurs, the controller system can identify abnormal conditions and support faster troubleshooting.
TM5 Modular I/O Integration
The TM5SDO6T works as part of the Modicon TM5 slice-based I/O architecture.
A typical configuration includes:
TM5 Bus Base
TM5 Electronic Module
TM5 Terminal Block
Compatible components should be selected according to the complete TM5 hardware configuration.
Replacement Identification
Correct Model
TM5SDO6T
Module Type
6-channel transistor output module
Output Voltage
24 V DC
Output Current
0.5 A per channel
Compatible Controllers
M258 / LMC058
Before replacement, confirm:
Module reference
Bus base type
Terminal block model
Controller compatibility
Installation Guidelines
Switch off system power before installation.
Confirm TM5 module compatibility.
Install the correct bus base.
Connect the appropriate terminal block.
Verify 24 V DC power supply.
Check output wiring polarity.
Confirm controller recognition.
Test each output channel.
Commission the machine after verification.
FAQ
Q1: What is TM5SDO6T?
A1: It is a Modicon TM5 six-channel transistor output module for 24 V DC industrial automation systems.
Q2: How many outputs does it have?
A2: It provides six digital transistor output channels.
Q3: What is the output current?
A3: Each output channel supports up to 0.5 A.
Q4: Is it a relay output module?
A4: No. It uses transistor source output technology.
Q5: Which controllers are compatible?
A5: It is commonly used with Modicon M258 and LMC058 controllers.
Q6: Does it support fast switching?
A6: Yes. Transistor outputs are suitable for repetitive high-cycle switching applications.
Q7: What protection functions are included?
A7: It provides short-circuit and overload protection.
Q8: Is it a standalone module?
A8: No. It must be installed as part of a complete Modicon TM5 modular I/O system.
Q9: What devices can it control?
A9: It can control compatible 24 V DC field devices such as valves, indicators and actuators.
Q10: Can it replace other TM5 output modules?
A10: Not always. Output type, channel count and voltage configuration must match.
