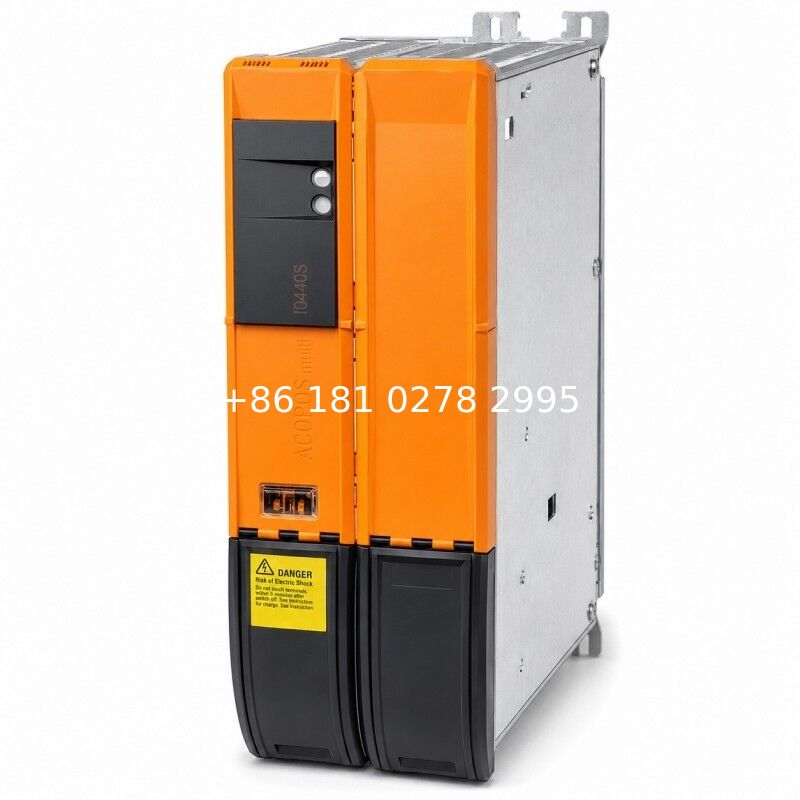

The B&R 8BVI0440HWS0.000-1 ACOPOSmulti Servo Drive Module is a high-power single-axis inverter module designed for advanced industrial automation systems requiring maximum servo performance, high torque output, and precise motion control.

Unlike ACOPOSmulti power supply modules, the 8BVI0440HWS0.000-1 does not generate the DC bus voltage. It receives energy from the ACOPOSmulti DC bus and converts it into controlled motor output for one connected servo motor.

With a 44A continuous current capability and 32.5kW continuous power capacity, this module is designed for the most demanding servo applications, including large mechanical axes, high inertia loads, and machines requiring rapid acceleration and deceleration performance.

The single-axis architecture provides a dedicated high-performance servo channel, allowing independent parameter configuration, commissioning, and optimization for each machine axis. This design is ideal for systems where individual axis performance is more important than maximum cabinet density.

Compared with the 8BVI0330HWS0.000-1, the 8BVI0440HWS0.000-1 provides a higher current class and power capability, making it suitable for larger servo motors and heavier mechanical loads.

Compared with the 8BVI0440HWD0.000-1 dual-axis version, the HWS model provides one dedicated servo channel. This allows more flexible axis expansion and independent tuning for large automation systems.

The integrated Safe Pulse Disabling (STO) function supports safety-oriented machine designs by preventing unintended torque generation during safety stop conditions. The module also supports motor brake connection and temperature sensor monitoring for complete servo motor integration.

The ACOPOSmulti modular architecture allows this inverter module to be combined with ACOPOSmulti power supply modules, mounting plates, controllers, and servo motors to create scalable high-performance automation platforms.

This product is a servo drive module only. It requires an ACOPOSmulti power supply module, mounting plate, controller, and compatible servo motor system.

Key Features

B&R ACOPOSmulti servo drive module

Single-axis high-power inverter design

44A continuous motor current capability

110A peak current capability

32.5kW continuous power capacity

750VDC DC bus architecture

Dedicated servo axis control

Integrated Safe Pulse Disabling (STO)

Functional safety support

Motor brake connection

Motor temperature monitoring

Two ACOPOSmulti plug-in module slots

Wall-mounted modular installation

High torque servo motor support

Compatible with B&R ACOPOSmulti systems

Typical Applications

Heavy-duty packaging machinery

Large robotic systems

High-load assembly equipment

Printing and converting machines

Industrial processing equipment

Material handling systems

Large positioning platforms

Precision manufacturing equipment

High-performance automation lines

Servo retrofit projects

Installation Notes

Before installation, verify:

Product model:

8BVI0440HWS0.000-1

Confirm:

ACOPOSmulti power supply capacity

DC bus voltage compatibility

Servo motor current requirement

Encoder feedback type

Motor brake wiring

Temperature sensor connection

Safety circuit configuration

Required components:

• ACOPOSmulti Power Supply Module
• ACOPOSmulti Mounting Plate
• Motion Controller
• Compatible Servo Motor

Before commissioning:

Check DC bus voltage

Configure motor parameters

Verify encoder feedback

Test STO safety function

Check brake operation

Perform axis movement test

Confirm servo response

FAQ

Q

What is B&R 8BVI0440HWS0.000-1?

A

It is the highest power-class ACOPOSmulti single-axis servo drive module designed for demanding industrial motion applications.

Q

Is 8BVI0440HWS0.000-1 a power supply module?

A

No. It is a servo inverter module that converts ACOPOSmulti DC bus power into controlled motor output.

Q

How many axes can it control?

A

It controls one independent servo axis.

Q

What is the current rating?

A

The module provides a 44A continuous motor current class.

Q

What is the power capability?

A

The module supports 32.5kW continuous power consumption capability.

Q

What is the difference between 8BVI0440HWS0.000-1 and 8BVI0330HWS0.000-1?

A

The 8BVI0440HWS0.000-1 provides a higher current rating and power capacity, making it suitable for larger motors and heavier mechanical loads.

Q

What is the difference between 8BVI0440HWS0.000-1 and 8BVI0440HWD0.000-1?

A

The HWS version is a single-axis servo drive module, while the HWD version provides two-axis servo control.

Q

Does it support safety functions?

A

Yes. It supports Functional Safety and Safe Pulse Disabling (STO).

Q

Can it operate independently?

A

No. It requires an ACOPOSmulti power supply system, mounting components, controller, and compatible servo motor.
