B&R X20DO6322 6-Channel 0.5A OSP Digital Output Module

Name: B&R X20DO6322 6-Channel 0.5A OSP Digital Output Module
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20DO6322
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20DO6322

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: Carton packaging

Delivery Time: 3-7 working days

Payment Terms: D/A, D/P, T/T, Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Module Type:	Digital Output Module
Number Of Outputs:	6	Output Circuit:	Source, Current-sourcing FET
Nominal Voltage:	24 VDC	Nominal Output Current:	0.5 A Per Channel
Total Nominal Current:	3 A	Connection Type:	1-wire Or 2-wire Connections
Switching Delay:	Less Than 300 µs	Maximum Switching Frequency:	500 Hz With Resistive Load
OSP Function:	Configurable Predefined Output Pattern	Output Protection:	Thermal Shutdown For Overload Or Short Circuit
Electrical Isolation:	Channels Isolated From Bus	Power Consumption:	0.18 W Bus; 0.71 W Internal I/O
Required Terminal Block:	X20TB06 For 1-wire Or X20TB12 For 2-wire Connections	Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical	Protection Rating:	IP20

Product Family:	X20 System
Module Type:	Digital Output Module
Number Of Outputs:	6
Output Circuit:	Source, Current-sourcing FET
Nominal Voltage:	24 VDC
Nominal Output Current:	0.5 A Per Channel
Total Nominal Current:	3 A
Connection Type:	1-wire Or 2-wire Connections
Switching Delay:	Less Than 300 µs
Maximum Switching Frequency:	500 Hz With Resistive Load
OSP Function:	Configurable Predefined Output Pattern
Output Protection:	Thermal Shutdown For Overload Or Short Circuit
Electrical Isolation:	Channels Isolated From Bus
Power Consumption:	0.18 W Bus; 0.71 W Internal I/O
Required Terminal Block:	X20TB06 For 1-wire Or X20TB12 For 2-wire Connections
Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20

Description

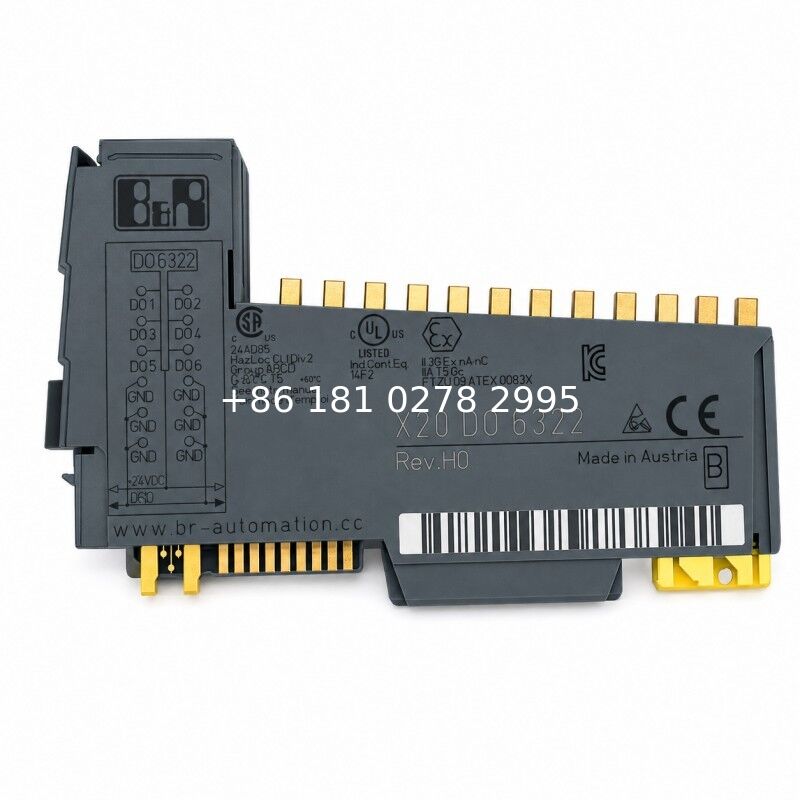

B&R X20DO6322 6-Channel 0.5A OSP Digital Output Module

The B&R X20DO6322 combines six 0.5 A source outputs with flexible 1-wire or 2-wire connection options. A 6-pin terminal block supports compact 1-wire wiring, while the 12-pin terminal block provides GND contacts for 2-wire actuator connections.

Its distinguishing function is OSP mode. A predefined digital output pattern can be applied if communication between the module and controller is interrupted, making this model suitable for machines that require a defined output state after a communication loss.

Key Features

Six protected 24 VDC outputs
0.5 A current per channel
1-wire or 2-wire connection options
GND contacts for actuator wiring
Configurable OSP output pattern
Output and supply diagnostics

Typical Applications

Defined-state machine actuators
Valve and relay control
Packaging equipment
Process skids
Distributed I/O stations

FAQ

Q: What does OSP mode do?

A: OSP mode applies a user-defined output pattern when communication between the module and master is interrupted.

Q: Which terminal block should be used?

A: X20TB06 supports continuous 1-wire wiring. X20TB12 is used when 2-wire connections with GND contacts are required.

Q: How does X20DO6322 differ from X20DO9322?

A: X20DO6322 has six outputs and flexible 1- or 2-wire connections with OSP mode. X20DO9322 has twelve outputs and uses 1-wire connections.
