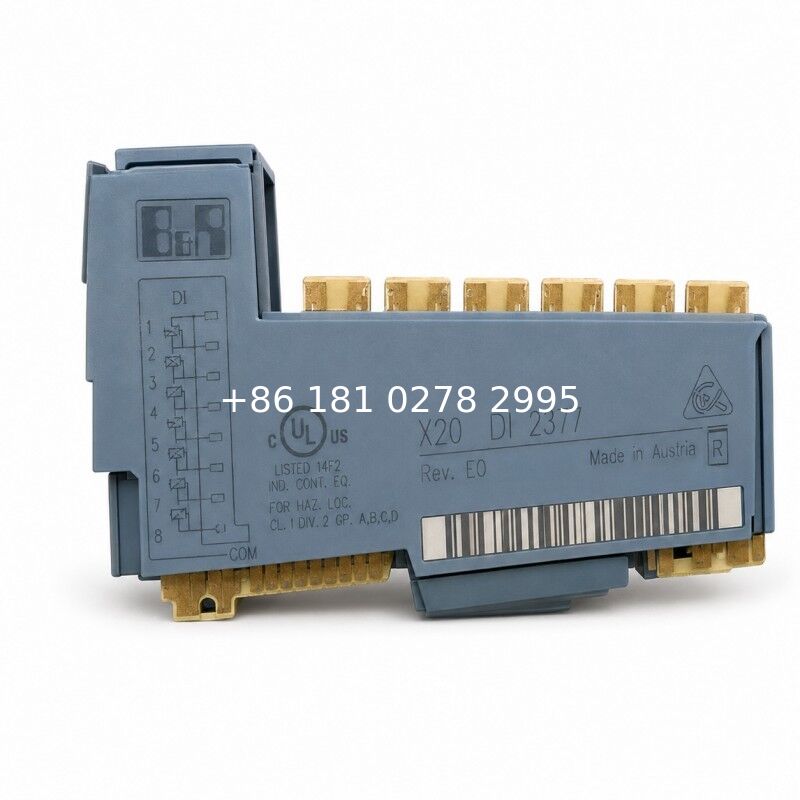

B&R X20DI2377 2-Channel 50kHz Counter Input Module

Name: B&R X20DI2377 2-Channel 50kHz Counter Input Module
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20DI2377
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20DI2377

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: Carton packaging

Delivery Time: 3-7 working days

Payment Terms: D/A, D/P, T/T, Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Module Type:	Digital Input And Counter Module
Number Of Inputs:	2	Nominal Input Voltage:	24 VDC
Input Circuit:	Sink	Connection Type:	3-wire Connections
Hardware Input Filter:	Maximum 10 µs	Software Input Filter:	0 To 25 Ms, Configurable In 0.2 Ms Increments
Event Counters:	2	Maximum Counter Frequency:	50 KHz
Counter Size:	16-bit	Gate Measurement:	One Channel At A Time
Sensor Supply:	24 VDC And GND Connections	Sensor Supply Current:	Maximum Combined Current 0.5 A
Power Consumption:	0.15 W Bus; 0.82 W Internal I/O	Required Terminal Block:	X20TB06 Or X20TB12, Ordered Separately
Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately	Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20

Product Family:	X20 System
Module Type:	Digital Input And Counter Module
Number Of Inputs:	2
Nominal Input Voltage:	24 VDC
Input Circuit:	Sink
Connection Type:	3-wire Connections
Hardware Input Filter:	Maximum 10 µs
Software Input Filter:	0 To 25 Ms, Configurable In 0.2 Ms Increments
Event Counters:	2
Maximum Counter Frequency:	50 KHz
Counter Size:	16-bit
Gate Measurement:	One Channel At A Time
Sensor Supply:	24 VDC And GND Connections
Sensor Supply Current:	Maximum Combined Current 0.5 A
Power Consumption:	0.15 W Bus; 0.82 W Internal I/O
Required Terminal Block:	X20TB06 Or X20TB12, Ordered Separately
Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20

Description

B&R X20DI2377 2-Channel 50kHz Counter Input Module

The B&R X20DI2377 is designed for applications where two digital signals must be counted directly by the I/O module. Both 24 VDC sink inputs can operate as 50 kHz event counters, reducing dependence on the PLC task cycle for pulse acquisition.

A gate-time measurement function is also available on one selected channel. Compared with the twelve-channel X20DI9371, this module has lower input density but provides dedicated counter hardware, faster input filtering and integrated sensor-supply connections.

Key Features

Two 24 VDC sink inputs
Two 50 kHz event counters
16-bit cyclic counter values
Gate-time measurement on one channel
3-wire sensor connections
Short-circuit-protected sensor supply

Typical Applications

Product counting
Speed and frequency measurement
Flowmeter pulse acquisition
Encoder pulse monitoring
Machine cycle counting

FAQ

Q: Can both inputs operate as event counters?

A: Yes. Both inputs can be configured as 50 kHz event counters.

Q: Can both channels perform gate measurement simultaneously?

A: No. Gate-time measurement is available on only one selected channel at a time.

Q: Does the module supply connected sensors?

A: It provides 24 VDC and GND sensor connections with a maximum combined sensor-supply current of 0.5 A.

Tags:

Please send us your request and we will reply to you as soon as possible.

Send
