B&R X20DI9372 12-Channel 24VDC Source Digital Input Module

Name: B&R X20DI9372 12-Channel 24VDC Source Digital Input Module
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20DI9372
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20DI9372

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: Carton packaging

Delivery Time: 3-7 working days

Payment Terms: D/A, D/P, T/T, Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Module Type:	Digital Input Module
Number Of Inputs:	12	Nominal Input Voltage:	24V DC
Input Circuit:	Source	Connection Type:	1-wire Connections
Input Characteristics:	EN 61131-2 Type 1	Input Current:	Typically 3.75 MA At 24 VDC
Hardware Input Filter:	Maximum 100 µs	Software Input Filter:	0 To 25 Ms, Configurable In 0.2 Ms Increments
Minimum Cycle Time:	100 µs Without Filtering; 150 µs With Filtering	Switching Threshold:	Low Below 5 VDC; High Above 15 VDC
Electrical Isolation:	Channels Isolated From Bus	Power Consumption:	0.18 W Bus; 1.75 W Internal I/O
Required Terminal Block:	X20TB12, Ordered Separately	Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical	Protection Rating:	IP20

Product Family:	X20 System
Module Type:	Digital Input Module
Number Of Inputs:	12
Nominal Input Voltage:	24V DC
Input Circuit:	Source
Connection Type:	1-wire Connections
Input Characteristics:	EN 61131-2 Type 1
Input Current:	Typically 3.75 MA At 24 VDC
Hardware Input Filter:	Maximum 100 µs
Software Input Filter:	0 To 25 Ms, Configurable In 0.2 Ms Increments
Minimum Cycle Time:	100 µs Without Filtering; 150 µs With Filtering
Switching Threshold:	Low Below 5 VDC; High Above 15 VDC
Electrical Isolation:	Channels Isolated From Bus
Power Consumption:	0.18 W Bus; 1.75 W Internal I/O
Required Terminal Block:	X20TB12, Ordered Separately
Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20

Description

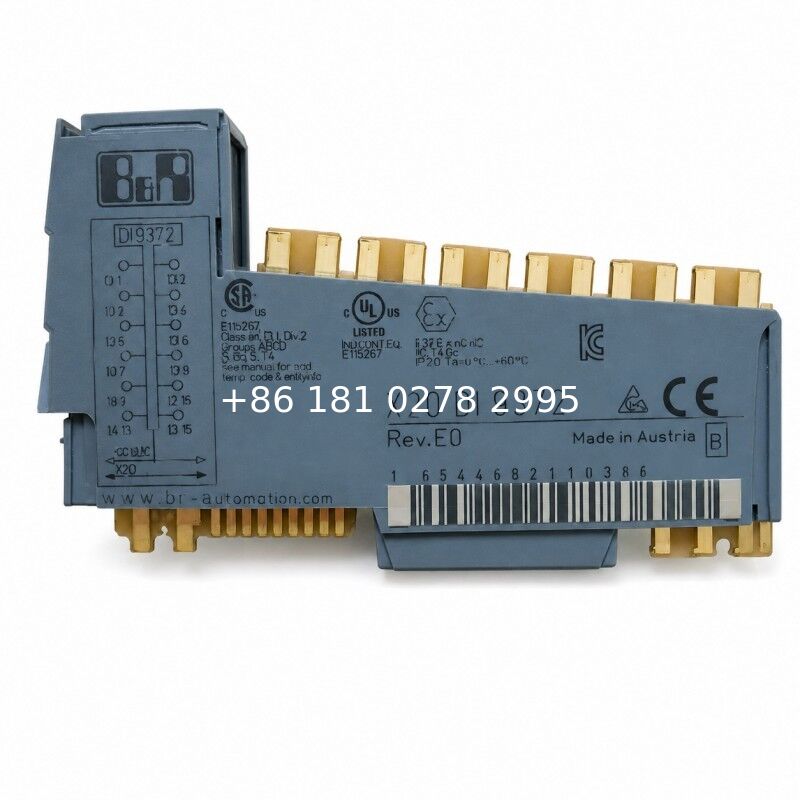

B&R X20DI9372 12-Channel 24VDC Source Digital Input Module

The B&R X20DI9372 provides twelve source-wired 24 VDC digital inputs in a narrow X20 module. Its high channel density and 1-wire connection arrangement make it suitable for machines that must collect many binary sensor signals without expanding the control cabinet.

The defining difference between X20DI9372 and X20DI9371 is the input circuit. X20DI9372 is designed for source input wiring, while X20DI9371 is the corresponding sink version. Selecting the correct variant is therefore determined by the sensor circuit and machine wiring design.

Key Features

Twelve source-type digital inputs
24 VDC nominal input voltage
1-wire connection layout
Configurable 0 to 25 ms software filter
100 µs minimum cycle without filtering
Individual channel status indication

Typical Applications

Source-wired machine sensors
Production line status acquisition
Packaging equipment
Material-handling systems
Compact distributed I/O stations

FAQ

Q: Is X20DI9372 interchangeable with X20DI9371?

A: The channel count and voltage are similar, but the input circuits are different. The machine wiring must be checked before replacing one with the other.

Q: Is the filter configured separately for every input?

A: The software input-filter value is configured for the entire module.

Q: Which terminal block is required?

A: The module uses an X20TB12 12-pin terminal block and a compatible X20BM11 or X20BM15 bus module.
