B&R X20AI4622 4-Channel 13-Bit Analog Input Module

Name: B&R X20AI4622 4-Channel 13-Bit Analog Input Module
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20AI4622
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20AI4622

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: Carton packaging

Delivery Time: 3-7 working days

Payment Terms: D/A, D/P, T/T, Western Union

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Module Type:	Analog Input Module
Number Of Inputs:	4	Supported Voltage Signal:	±10 V
Supported Current Signals:	0 To 20 MA And 4 To 20 MA	Input Type:	Differential
Converter Resolution:	13-bit Including Sign	Conversion Time:	400 µs For All Inputs
Voltage Input Impedance:	20 MΩ	Current Input Load:	Less Than 400 Ω
Conversion Method:	SAR	Input Filter:	Third-order Low-pass, 1 KHz Cutoff
Electrical Isolation:	Channels Isolated From Bus	Power Consumption:	0.01 W Bus; 1.1 W Internal I/O
Required Terminal Block:	X20TB12, Ordered Separately	Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical	Protection Rating:	IP20

Product Family:	X20 System
Module Type:	Analog Input Module
Number Of Inputs:	4
Supported Voltage Signal:	±10 V
Supported Current Signals:	0 To 20 MA And 4 To 20 MA
Input Type:	Differential
Converter Resolution:	13-bit Including Sign
Conversion Time:	400 µs For All Inputs
Voltage Input Impedance:	20 MΩ
Current Input Load:	Less Than 400 Ω
Conversion Method:	SAR
Input Filter:	Third-order Low-pass, 1 KHz Cutoff
Electrical Isolation:	Channels Isolated From Bus
Power Consumption:	0.01 W Bus; 1.1 W Internal I/O
Required Terminal Block:	X20TB12, Ordered Separately
Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20

Description

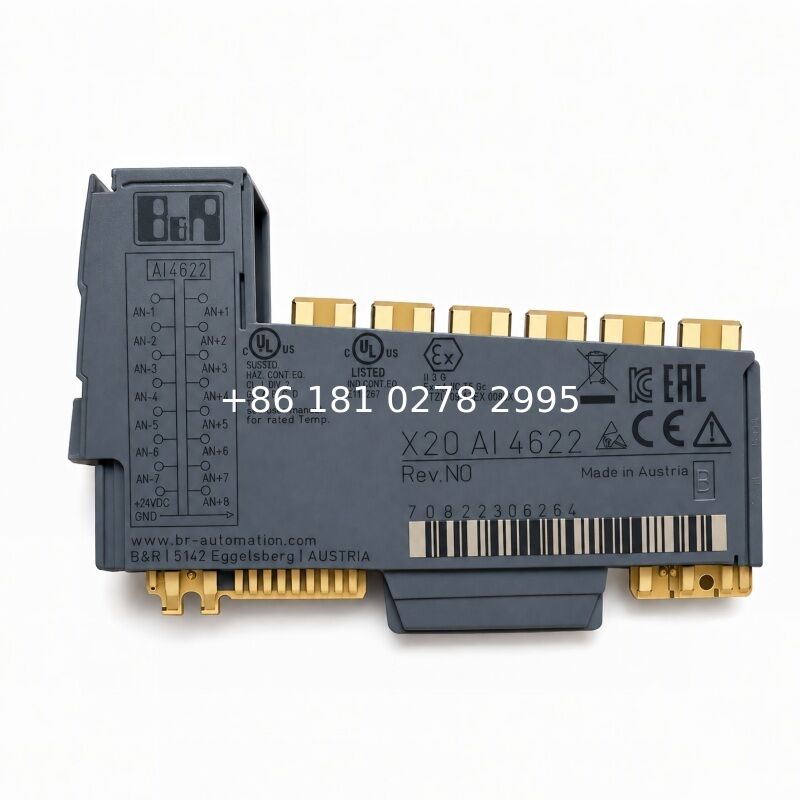

B&R X20AI4622 4-Channel 13-Bit Analog Input Module

The B&R X20AI4622 is a flexible four-channel analog input module for mixed voltage and current signals. Each channel can acquire ±10 V, 0 to 20 mA or 4 to 20 mA signals through the corresponding terminal connections.

This module emphasizes signal flexibility and native 4 to 20 mA configuration. Compared with X20AI4632, it has lower converter resolution and a longer conversion time, but supports the dedicated 4 to 20 mA measuring range frequently used by industrial transmitters.

Key Features

Four differential analog inputs
Voltage and current signal support
Native 4 to 20 mA range
13-bit converter resolution
400 µs conversion for all inputs
Input protection against supply-voltage wiring

Typical Applications

Pressure transmitters
Flow and level measurement
Speed-reference feedback
Process sensor acquisition
Mixed analog machine signals

FAQ

Q: Can voltage and current signals be used on the same module?

A: Yes. Signal type is selected through the corresponding terminal connections and project configuration.

Q: What is the main difference from X20AI4632?

A: X20AI4622 provides 13-bit resolution, a 400 µs conversion time and native 4 to 20 mA support. X20AI4632 provides higher resolution and faster conversion.

Q: Are channels individually isolated?

A: The channels are isolated from the bus but are not galvanically isolated from one another.
