B&R X20AO4622 4-Channel 13-Bit Analog Output Module

Name: B&R X20AO4622 4-Channel 13-Bit Analog Output Module
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20AO4622
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20AO4622

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Module Type:	Analog Output Module
Number Of Outputs:	4	Supported Voltage Signal:	±10 V
Supported Current Signals:	0 To 20 MA And 4 To 20 MA	Converter Resolution:	13-bit Including Sign
Conversion Time:	300 µs For All Outputs	Settling Time:	500 µs Across Full Range
Voltage Load:	Minimum 1 KΩ	Current Load:	Maximum 600 Ω From Revision J0; 500 Ω On Earlier Revisions
Output Protection:	Short-circuit Proof	Output Filter:	First-order Low-pass, 10 KHz Cutoff
Electrical Isolation:	Channels Isolated From Bus	Power Consumption:	0.01 W Bus; 1.8 W From Revision J0
Required Terminal Block:	X20TB12, Ordered Separately	Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Protection Rating:	IP20

Product Family:	X20 System
Module Type:	Analog Output Module
Number Of Outputs:	4
Supported Voltage Signal:	±10 V
Supported Current Signals:	0 To 20 MA And 4 To 20 MA
Converter Resolution:	13-bit Including Sign
Conversion Time:	300 µs For All Outputs
Settling Time:	500 µs Across Full Range
Voltage Load:	Minimum 1 KΩ
Current Load:	Maximum 600 Ω From Revision J0; 500 Ω On Earlier Revisions
Output Protection:	Short-circuit Proof
Output Filter:	First-order Low-pass, 10 KHz Cutoff
Electrical Isolation:	Channels Isolated From Bus
Power Consumption:	0.01 W Bus; 1.8 W From Revision J0
Required Terminal Block:	X20TB12, Ordered Separately
Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Protection Rating:	IP20

Description

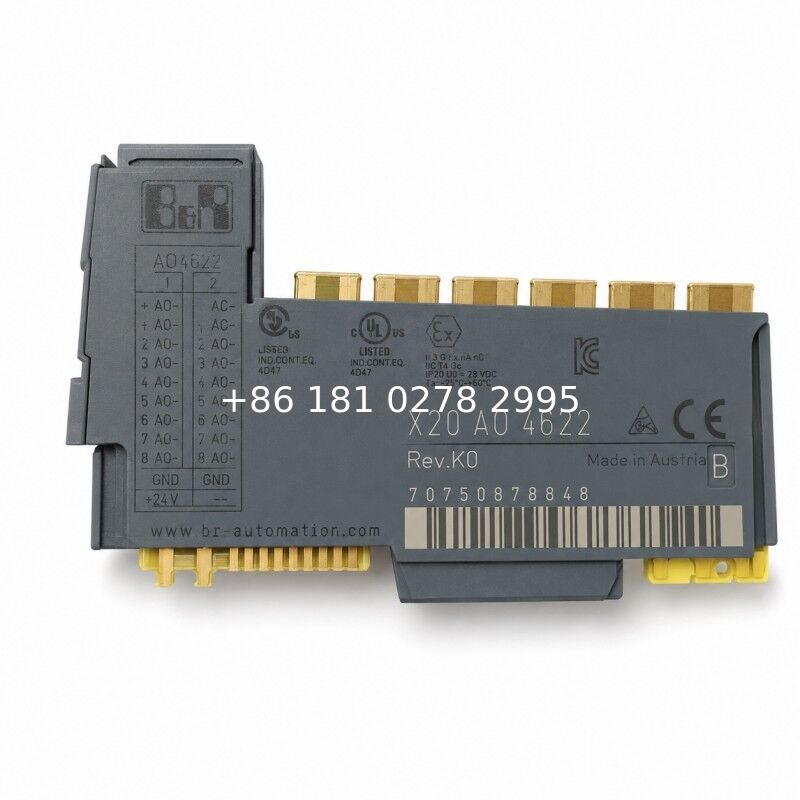

B&R X20AO4622 4-Channel 13-Bit Analog Output Module

The B&R X20AO4622 provides four configurable analog outputs for voltage or current-controlled devices. It supports ±10 V, 0 to 20 mA and the dedicated 4 to 20 mA range, making it suitable for mixed actuator and process-control requirements.

Compared with X20AO4632, this module has lower resolution and a longer conversion time, but adds native 4 to 20 mA output configuration. It is therefore a practical choice for proportional valves, current-loop instruments and standard analog references.

Key Features

Four configurable analog outputs
±10 V, 0-20 mA and 4-20 mA ranges
13-bit converter resolution
300 µs conversion time
Short-circuit-protected outputs
Internal enable relay during startup

Typical Applications

Proportional valve control
Variable-speed references
Analog actuator commands
Process control loops
Current-loop setpoint output

FAQ

Q: Can different channels use different signal types?

A: Signal type depends on the terminal connection and project configuration. The complete channel arrangement should be verified during hardware engineering.

Q: What is the difference from X20AO4632?

A: X20AO4622 supports a native 4 to 20 mA range with 13-bit resolution. X20AO4632 provides higher resolution and faster conversion.

Q: Are the outputs short-circuit protected?

A: Yes. The module uses current limiting and short-circuit-protected output circuits.
