B&R X20AO4632 4-Channel 16-Bit Fast Analog Output Module

Name: B&R X20AO4632 4-Channel 16-Bit Fast Analog Output Module
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20AO4632
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20AO4632

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Module Type:	High-resolution Analog Output Module
Number Of Outputs:	4	Supported Voltage Signal:	±10 V
Supported Current Signal:	0 To 20 MA	Converter Resolution:	16-bit Including Sign
Conversion Time:	50 µs For All Outputs	Settling Time:	500 µs Across Full Range
Voltage Load:	Minimum 1 KΩ	Current Load:	Maximum 600 Ω From Revision J0; 500 Ω On Earlier Revisions
Output Protection:	Short-circuit Proof With ±40 MA Current Limiting	Output Filter:	First-order Low-pass, 10 KHz Cutoff
Electrical Isolation:	Channels Isolated From Bus	Power Consumption:	0.01 W Bus; 1.8 W From Revision J0
Required Terminal Block:	X20TB12, Ordered Separately	Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Protection Rating:	IP20

Product Family:	X20 System
Module Type:	High-resolution Analog Output Module
Number Of Outputs:	4
Supported Voltage Signal:	±10 V
Supported Current Signal:	0 To 20 MA
Converter Resolution:	16-bit Including Sign
Conversion Time:	50 µs For All Outputs
Settling Time:	500 µs Across Full Range
Voltage Load:	Minimum 1 KΩ
Current Load:	Maximum 600 Ω From Revision J0; 500 Ω On Earlier Revisions
Output Protection:	Short-circuit Proof With ±40 MA Current Limiting
Output Filter:	First-order Low-pass, 10 KHz Cutoff
Electrical Isolation:	Channels Isolated From Bus
Power Consumption:	0.01 W Bus; 1.8 W From Revision J0
Required Terminal Block:	X20TB12, Ordered Separately
Compatible Bus Module:	X20BM11 Or X20BM15, Ordered Separately
Protection Rating:	IP20

Description

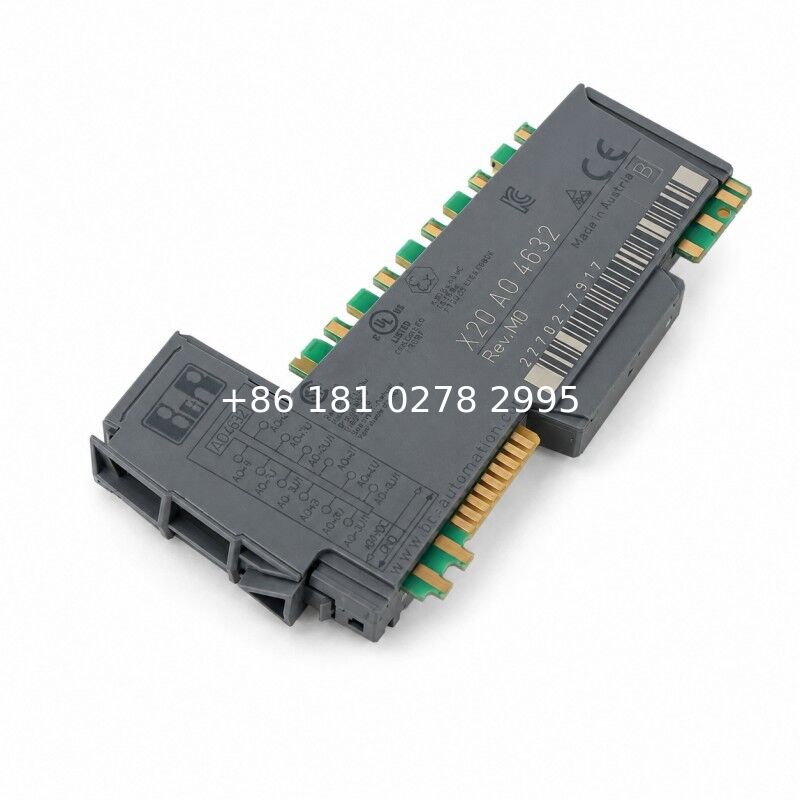

B&R X20AO4632 4-Channel 16-Bit Fast Analog Output Module

The B&R X20AO4632 is a high-resolution output module for fast and precise analog commands. Its four channels provide ±10 V or 0 to 20 mA signals with 16-bit converter resolution and a 50 µs conversion time for all outputs.

This model is substantially faster than X20AO4622 and provides smaller voltage and current increments. It is best suited to applications where analog command quality and update speed are more important than having a dedicated 4 to 20 mA output range.

Key Features

Four high-resolution analog outputs
16-bit converter resolution
50 µs conversion for all channels
±10 V or 0 to 20 mA output
Short-circuit protection
Low nonlinearity below 0.007%

Typical Applications

High-response proportional valves
Dynamic tension control
Precision drive references
Laboratory and test equipment
Fast analog machine control

FAQ

Q: Does X20AO4632 support a dedicated 4 to 20 mA range?

A: Its specified current output range is 0 to 20 mA. X20AO4622 should be considered when native 4 to 20 mA configuration is required.

Q: How much faster is it than X20AO4622?

A: X20AO4632 converts all outputs in 50 µs, compared with 300 µs for X20AO4622.

Q: Are the channels galvanically isolated from one another?

A: No. The channels are isolated from the bus but not from each other.
