B&R X20IF10G1-1 EtherCAT Master Communication Module

Name: B&R X20IF10G1-1 EtherCAT Master Communication Module
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20IF10G1-1
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20IF10G1-1

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Module Type:	Industrial Communication Interface
Fieldbus Function:	EtherCAT Master	Physical Layer:	100BASE-TX
Number Of Ports:	2 Shielded RJ45 Ports	Integrated Switch:	Yes
Transfer Rate:	100 Mbit/s	Duplex Modes:	Half-duplex And Full-duplex
Autonegotiation:	Supported	Auto-MDI/MDIX:	Supported
Maximum Segment Length:	100 M Between Stations	Communication Controller:	NetX100
Memory:	8 MB SDRAM	Electrical Isolation:	PLC Isolated From EtherCAT Ports
Power Consumption:	2 W	Compatible Installation:	X20 PLC Or Expandable X20BC1083 Bus Controller
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical	Protection Rating:	IP20

Product Family:	X20 System
Module Type:	Industrial Communication Interface
Fieldbus Function:	EtherCAT Master
Physical Layer:	100BASE-TX
Number Of Ports:	2 Shielded RJ45 Ports
Integrated Switch:	Yes
Transfer Rate:	100 Mbit/s
Duplex Modes:	Half-duplex And Full-duplex
Autonegotiation:	Supported
Auto-MDI/MDIX:	Supported
Maximum Segment Length:	100 M Between Stations
Communication Controller:	NetX100
Memory:	8 MB SDRAM
Electrical Isolation:	PLC Isolated From EtherCAT Ports
Power Consumption:	2 W
Compatible Installation:	X20 PLC Or Expandable X20BC1083 Bus Controller
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20

Description

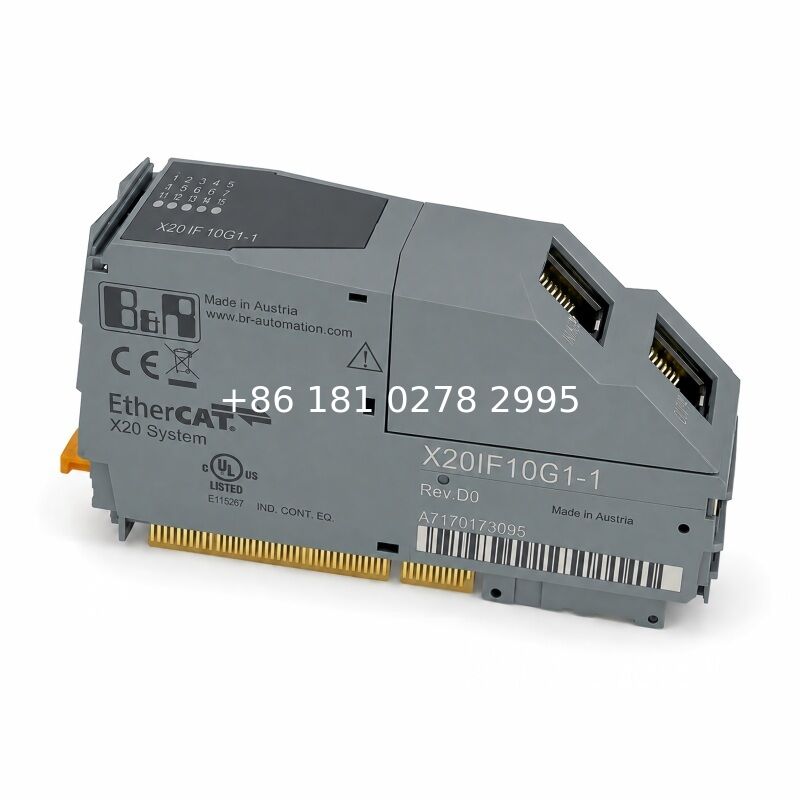

B&R X20IF10G1-1 EtherCAT Master Communication Module

The B&R X20IF10G1-1 adds an EtherCAT master interface to a compatible X20 controller or expandable X20BC1083 bus controller. Its two RJ45 ports are connected through an integrated switch, simplifying line and daisy-chain network wiring.

This module is designed for connecting a B&R control platform to EtherCAT devices from other manufacturers. It must not be confused with X20IF10G3-1, which is the EtherCAT slave version, or X20IF1082-2, which provides a POWERLINK interface.

Key Features

EtherCAT master functionality
Two shielded RJ45 ports
Integrated network switch
100 Mbit/s transfer rate
Full-duplex support
Electrical isolation from the PLC

Typical Applications

Third-party EtherCAT I/O integration
EtherCAT drive networks
Multi-vendor machine systems
Industrial communication gateways
X20BC1083 fieldbus expansion

FAQ

Q: Is X20IF10G1-1 an EtherCAT master or slave?

A: It is an EtherCAT master. X20IF10G3-1 is the corresponding slave-interface model.

Q: Can it be installed in X20BC1083?

A: Yes. B&R specifies operation in compatible X20 controllers and the expandable X20BC1083 POWERLINK bus controller.

Q: Do the two ports require an external Ethernet switch?

A: The module contains an integrated switch, allowing straightforward line or daisy-chain cabling.
