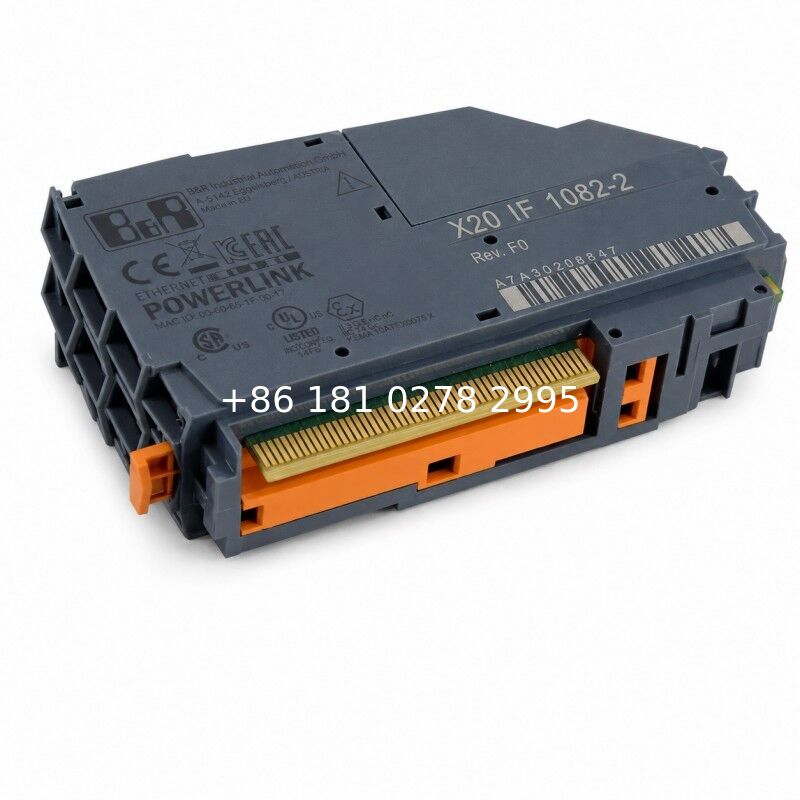

B&R X20IF1082-2 POWERLINK Ring Redundancy Module

Name: B&R X20IF1082-2 POWERLINK Ring Redundancy Module
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20IF1082-2
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20IF1082-2

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Module Type:	POWERLINK Communication Interface
Network Function:	Managing Node Or Controlled Node	POWERLINK Version:	V1 And V2
Physical Layer:	100BASE-TX	Number Of Ports:	2 Shielded RJ45 Ports
Integrated Hub:	Yes	Transfer Rate:	100 Mbit/s
Duplex Mode:	Half-duplex	Maximum Segment Length:	100 M Between Stations
Ring Redundancy:	Configurable	Poll Response Chaining:	Supported
Dynamic Node Allocation:	Supported	Communication Controller:	POWERLINK MAC
Electrical Isolation:	PLC Isolated From POWERLINK Ports	Power Consumption:	2W
Compatible Installation:	X20 PLC Interface Slot	Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20

Product Family:	X20 System
Module Type:	POWERLINK Communication Interface
Network Function:	Managing Node Or Controlled Node
POWERLINK Version:	V1 And V2
Physical Layer:	100BASE-TX
Number Of Ports:	2 Shielded RJ45 Ports
Integrated Hub:	Yes
Transfer Rate:	100 Mbit/s
Duplex Mode:	Half-duplex
Maximum Segment Length:	100 M Between Stations
Ring Redundancy:	Configurable
Poll Response Chaining:	Supported
Dynamic Node Allocation:	Supported
Communication Controller:	POWERLINK MAC
Electrical Isolation:	PLC Isolated From POWERLINK Ports
Power Consumption:	2W
Compatible Installation:	X20 PLC Interface Slot
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20

Description

B&R X20IF1082-2 POWERLINK Ring Redundancy Module

The B&R X20IF1082-2 adds a second application-specific POWERLINK interface to a compatible X20 controller. It can operate as a POWERLINK managing node or controlled node and provides two RJ45 connections through an integrated hub.

The module supports configurable ring redundancy, Dynamic Node Allocation and Poll Response Chaining. Compared with the standard X20IF1082, the “-2” version adds PRC functionality, making it more suitable for optimized real-time networks and advanced controller architectures.

Key Features

POWERLINK V1 and V2 support
Managing or controlled node operation
Integrated two-port hub
Configurable ring redundancy
Poll Response Chaining
Dynamic Node Allocation

Typical Applications

Additional POWERLINK networks
Redundant machine communication
Distributed X20 I/O systems
Multi-axis servo networks
Controller-to-controller architectures

FAQ

Q: What is the difference between X20IF1082 and X20IF1082-2?

A: Both provide POWERLINK communication and ring redundancy. X20IF1082-2 additionally supports Poll Response Chaining.

Q: Can the module operate as a POWERLINK managing node?

A: Yes. It can be configured as either a managing node or a controlled node.

Q: Is X20IF1082-2 an EtherCAT module?

A: No. It is a POWERLINK interface. X20IF10G1-1 is the EtherCAT master module in this batch.
