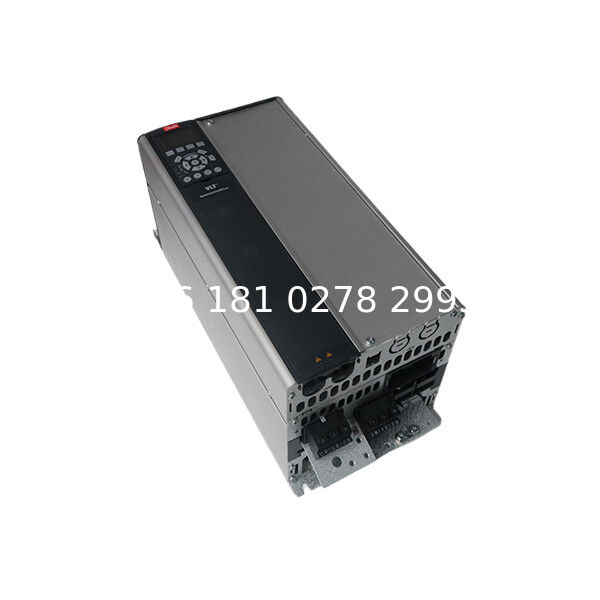

The Danfoss 131B0031 is a VLT AutomationDrive FC-302 frequency converter with the full model number FC-302P2K2T5E20H1XXXXXXSXXXXAXBXCXXXXDX. It is designed for industrial motor speed control applications where stable operation, flexible motor control, and reliable machine performance are required.

This FC-302 model is rated at 2.2kW / 3HP and supports three phase 380-500V AC mains input. It uses an IP20 / chassis enclosure and RFI Class A1/B filter. This configuration is supplied without a brake chopper, without a local control panel, with not coated PCB, no mains option, standard cable entries, and the latest release standard software.

The VLT AutomationDrive FC-302 series is widely used in industrial automation systems where motor speed, torque control, process stability, and machine uptime are important. This 2.2kW model can be used for conveyors, feeder units, pumps, fans, mixers, packaging machinery, textile equipment, light material handling systems, production line equipment, and general machine control applications.

For replacement applications, the complete model code must be checked carefully. FC-302 drives may look similar from the outside, but they can differ by power rating, voltage class, enclosure, RFI filter, brake chopper option, local control panel, PCB coating, fieldbus card, I/O option, software option, frame size, and terminal configuration. The full model FC-302P2K2T5E20H1XXXXXXSXXXXAXBXCXXXXDX and order code 131B0031 should be confirmed before ordering.

This model code shows no A option and no B option, so it should not be described as a PROFIBUS, PROFINET, EtherNet/IP, or special fieldbus version unless an actual option card is installed and verified by photo. This configuration also has no local control panel, so the keypad or LCP requirement should be checked separately when replacing an installed drive.

Before ordering, please check the drive nameplate, order code, full model number, motor power, mains voltage, option card labels, control terminal wiring, power terminal wiring, keypad requirement, parameter backup, and machine application. Clear photos of the old drive label, option card area, terminal area, control cabinet, and existing keypad can help confirm compatibility and reduce replacement risk.

Dengfeng supplies Danfoss VLT AutomationDrive FC-302 frequency converters, FC-301 drives, FC-102 drives, soft starters, control panels, option cards, power modules, PLC modules, servo drives, motors, sensors, cables, and automation spare parts for machine repair and production line maintenance. Before shipment, we can check the model label, housing condition, terminal condition, fan condition, keypad requirement, and packaging according to your request.

Key Features

• Danfoss 131B0031 VLT AutomationDrive FC-302 frequency converter
• Full model number FC-302P2K2T5E20H1XXXXXXSXXXXAXBXCXXXXDX
• 2.2kW / 3HP power rating
• Three phase 380-500V AC mains input
• IP20 / chassis enclosure
• RFI Class A1/B filter
• No brake chopper
• No local control panel
• Not coated PCB
• Standard cable entries
• No A option, no B option, no C1 option, no D option
• Suitable for motor speed control, machine repair, retrofit, and spare parts supply

Typical Applications

The Danfoss 131B0031 FC-302 frequency converter can be used in:

• Industrial motor speed control systems
• Packaging machinery
• Conveyor systems
• Feeder units
• Pumps and fans
• Mixers and light-duty agitators
• Textile machinery
• Printing machinery
• Light material handling equipment
• Production line automation
• Machine retrofit projects
• Control cabinet replacement
• Factory maintenance spare parts

FAQ

Q1: What is Danfoss 131B0031?
A1: Danfoss 131B0031 is a VLT AutomationDrive FC-302 frequency converter with the full model number FC-302P2K2T5E20H1XXXXXXSXXXXAXBXCXXXXDX.

Q2: What is the power rating of FC-302P2K2T5E20H1XXXXXXSXXXXAXBXCXXXXDX?
A2: This model is rated at 2.2kW / 3HP.

Q3: What input voltage does this FC-302 drive support?
A3: It supports three phase 380-500V AC mains input.

Q4: What enclosure type does this model use?
A4: It uses an IP20 / chassis enclosure, suitable for control cabinet installation.

Q5: Does Danfoss 131B0031 include a brake chopper?
A5: No. This configuration is supplied without a brake chopper. Please check the braking requirement before using it in high-inertia or frequent braking applications.

Q6: Does this drive include a local control panel?
A6: No. This model is supplied without a local control panel. If a keypad or LCP is required, please confirm it separately before ordering.

Q7: Is the PCB coated?
A7: No. The model code indicates not coated PCB.

Q8: Does this model include PROFIBUS, PROFINET, or EtherNet/IP?
A8: No. According to the model code, this configuration has no A option and no B option. It should not be described as a fieldbus version unless an option card is physically installed and confirmed.

Q9: Can this drive replace Danfoss 131B0027?
A9: It should not be replaced only by appearance. Danfoss 131B0027 is a 0.55kW FC-302 configuration, while 131B0031 is a 2.2kW FC-302 configuration. Power rating, voltage, enclosure, options, wiring, and parameter settings must be checked.

Q10: Can this drive replace another FC-302 model?
A10: It can replace the same model when the power rating, voltage class, enclosure, brake option, filter, option cards, software, frame size, keypad requirement, and machine parameter settings match.

Q11: What should I check before ordering?
A11: Please check the drive nameplate, order code, full model number, motor power, mains voltage, option card labels, wiring terminals, keypad requirement, parameter backup, and machine application before ordering.

Q12: Can you help confirm compatibility?
A12: Yes. Please send photos of the old drive nameplate, option card area, control terminals, power terminals, keypad area, and machine cabinet layout. We can help check whether Danfoss 131B0031 matches your replacement requirement.
