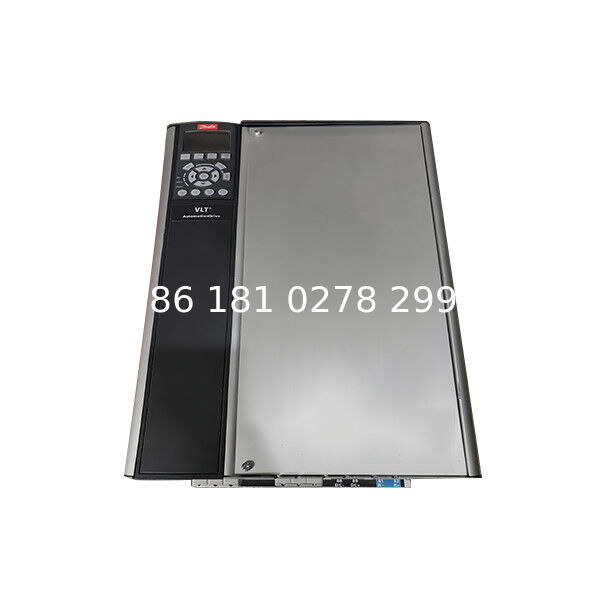

Danfoss FC-302P15KT5E20H2BGXXXXSXXXXA0BXC4XXXD0 15kW 380-500V AC Drive with PROFIBUS DP

The FC-302P15KT5E20H2BGXXXXSXXXXA0BXC4XXXD0 is a 15 kW variable frequency drive designed for industrial motor speed control in 380–500 VAC three-phase systems.

This unit belongs to the VLT AutomationDrive FC 302 series and is intended for installation inside an electrical control cabinet with IP20 protection. It is not a sealed or outdoor-rated drive and should be used within a properly designed enclosure.

The configuration includes an H2 RFI filter, integrated brake chopper and a graphical local control panel. It supports PROFIBUS DP communication via MCA 101 module, enabling integration with industrial automation networks.

The drive is suitable for controlling asynchronous and permanent magnet motors in standard industrial applications where variable speed, torque control and energy efficiency are required.

Key Features

15 kW industrial AC drive (20 HP)
380–500 VAC three-phase input
IP20 chassis design for cabinet installation
Integrated brake chopper for dynamic braking
H2 RFI filter for electromagnetic compatibility
PROFIBUS DP communication interface
Graphical local control panel included
Supports standard industrial motor types
Flexible overload handling (150% / 110%)
Compact modular drive design
Internal cooling system
Designed for industrial automation systems

Typical Applications

Conveyor systems
Pumps and fans
Mixing and processing machines
Packaging equipment
Material handling systems
Production line automation
General industrial motor control
Machine retrofit projects

Installation Notes

This drive must be installed inside a suitable electrical cabinet due to IP20 enclosure rating. Ensure proper cooling airflow, correct grounding, shielded motor cables and correct PROFIBUS configuration before commissioning.

Do not use this unit in outdoor or washdown environments without additional enclosure protection.

FAQ

Q: Is this drive suitable for outdoor installation?
A: No. It is IP20 and designed for cabinet installation only.

Q: Does it include a brake chopper?
A: Yes, this configuration includes an integrated brake chopper.

Q: What communication does it support?
A: It supports PROFIBUS DP via MCA 101 module.

Q: What is the power rating?
A: 15 kW / 20 HP.

Q: What voltage range does it support?
A: 380–500 VAC three-phase input.
