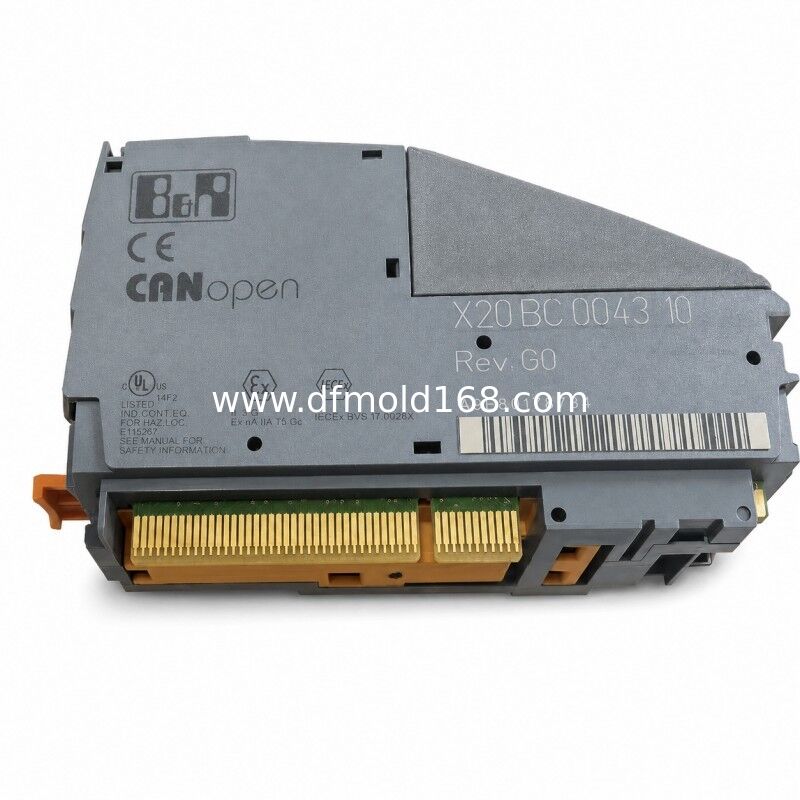

B&R X20BC0043-10 CANopen Slave Bus Controller

Name: B&R X20BC0043-10 CANopen Slave Bus Controller
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20BC0043-10
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20BC0043-10

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Controller Type:	CANopen Bus Controller
Fieldbus Role:	CANopen Slave	Connector:	5-pin Male Multipoint Connector
Maximum Transfer Rate:	1 Mbit/s	Maximum Network Distance:	1000 M
X2X Link Cycle:	500 µs	Configurable I/O Cycle:	0.5 To 4 Ms
CAN Terminating Resistor:	Integrated	Maximum PDO Capacity:	32 Receive And 32 Transmit PDOs
Electrical Isolation:	CANopen Isolated From I/O	Bus Power Consumption:	1.5 W From Revision H0
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical	Protection Rating:	IP20
Module Pitch:	37.5 Mm	Required System Components:	X20BB80, X20PS9400 Or X20PS9402 And X20TB12
Fieldbus Terminal:	TB2105 Ordered Separately

Product Family:	X20 System
Controller Type:	CANopen Bus Controller
Fieldbus Role:	CANopen Slave
Connector:	5-pin Male Multipoint Connector
Maximum Transfer Rate:	1 Mbit/s
Maximum Network Distance:	1000 M
X2X Link Cycle:	500 µs
Configurable I/O Cycle:	0.5 To 4 Ms
CAN Terminating Resistor:	Integrated
Maximum PDO Capacity:	32 Receive And 32 Transmit PDOs
Electrical Isolation:	CANopen Isolated From I/O
Bus Power Consumption:	1.5 W From Revision H0
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20
Module Pitch:	37.5 Mm
Required System Components:	X20BB80, X20PS9400 Or X20PS9402 And X20TB12
Fieldbus Terminal:	TB2105 Ordered Separately

Description

B&R X20BC0043-10 CANopen Slave Bus Controller

The B&R X20BC0043-10 connects X20 and other X2X Link I/O nodes to a CANopen network as a slave device. It supports automatic transfer-rate detection, an integrated terminating resistor, heartbeat functions, emergency messaging and configurable I/O cycles.

Unlike the X20BC0073, which uses B&R CAN I/O, the X20BC0043-10 implements the standardized CANopen protocol. It is therefore the appropriate choice when an external CANopen master must exchange cyclic PDO data with an X20 I/O station.

Key Features

CANopen slave functionality
Maximum 1 Mbit/s transfer rate
Integrated terminating resistor
Automatic or fixed baud-rate selection
Up to 32 receive and 32 transmit PDOs
Supports up to 253 X2X Link I/O modules

Typical Applications

CANopen machine networks
Mobile and material-handling equipment
Distributed X20 I/O stations
Packaging machinery
CANopen retrofit systems

FAQ

Q: Is X20BC0043-10 a CANopen master?

A: No. It operates as a CANopen slave and requires a compatible CANopen master.

Q: How does it differ from X20BC0073?

A: X20BC0043-10 uses the standardized CANopen protocol. X20BC0073 uses B&R CAN I/O and is intended for integration within compatible B&R control systems.

Q: Which accessories are required?

A: The controller requires X20BB80, X20PS9400 or X20PS9402, X20TB12 and a compatible five-pin TB2105 fieldbus terminal.
