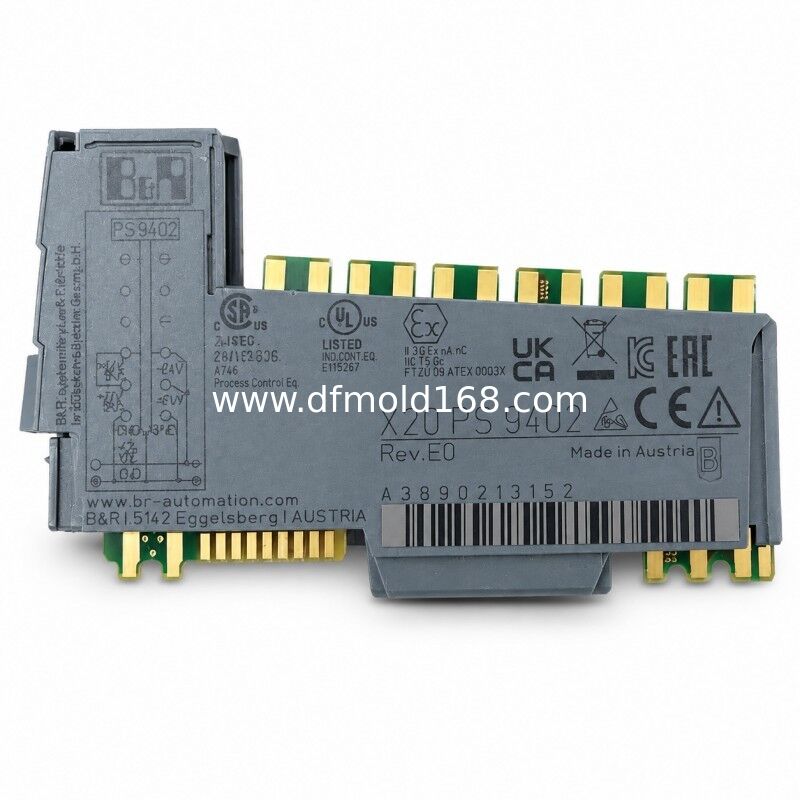

B&R X20PS9402 Compact Bus Controller Power Supply

Name: B&R X20PS9402 Compact Bus Controller Power Supply
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20PS9402
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20PS9402

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Module Type:	Non-isolated Bus Controller Power Supply
Input Voltage:	24 VDC -15% / +20%	Maximum Input Current:	0.7 A For Controller And X2X Supply
Maximum Output Power:	7 W With Temperature Derating	Output At Horizontal Mounting:	7 W At 45°C; 5 W At 55°C
Output At Vertical Mounting:	7 W At 40°C; 5 W At 50°C	Parallel Operation:	Not Supported
Redundant Operation:	Not Supported	I/O Contact Load:	10 A
I/O Line Fuse:	External Slow-blow Fuse, Maximum 10 A	Electrical Isolation:	Controller And X2X Supply Not Isolated From Input
Internal I/O Power Consumption:	0.6 W	Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20	Module Pitch:	12.5 Mm
Mandatory Accessories:	Compatible X20BB8x Bus Base And X20TB12 Terminal Block

Product Family:	X20 System
Module Type:	Non-isolated Bus Controller Power Supply
Input Voltage:	24 VDC -15% / +20%
Maximum Input Current:	0.7 A For Controller And X2X Supply
Maximum Output Power:	7 W With Temperature Derating
Output At Horizontal Mounting:	7 W At 45°C; 5 W At 55°C
Output At Vertical Mounting:	7 W At 40°C; 5 W At 50°C
Parallel Operation:	Not Supported
Redundant Operation:	Not Supported
I/O Contact Load:	10 A
I/O Line Fuse:	External Slow-blow Fuse, Maximum 10 A
Electrical Isolation:	Controller And X2X Supply Not Isolated From Input
Internal I/O Power Consumption:	0.6 W
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20
Module Pitch:	12.5 Mm
Mandatory Accessories:	Compatible X20BB8x Bus Base And X20TB12 Terminal Block

Description

B&R X20PS9402 Compact Bus Controller Power Supply

The B&R X20PS9402 is a compact, cost-oriented power supply for smaller X20 bus-controller stations. It supplies the bus controller, X2X Link electronics and internal I/O contacts from a 24 VDC input.

Compared with the X20PS9400, the X20PS9402 does not electrically isolate the controller/X2X output and cannot be connected in parallel for redundancy. It is intended for smaller stations that do not require bus transmitters or additional X2X supply modules.

Key Features

Combined controller, X2X and I/O supply
Designed for smaller X20 stations
Up to 7 W controller and X2X output
Maximum 10 A I/O contact load
Compact 12.5 mm module pitch
Compatible with standard X20 bus-controller bases

Typical Applications

Compact remote I/O stations
Cost-sensitive machine control
Standalone bus-controller assemblies
Small packaging machines
Local process I/O nodes

FAQ

Q: Can X20PS9402 be used for redundant power?

A: No. Parallel and redundant controller/X2X operation are not supported.

Q: Can an X20PS3300 be added to expand the X2X supply?

A: No. B&R specifies that X2X expansion using X20PS3300 or X20PS3310 is not permitted with X20PS9402.

Q: When should X20PS9400 be selected instead?

A: Select X20PS9400 when isolation, redundancy, an RS232 service interface, a bus transmitter or expanded X2X power is required.
