B&R X20BC0073 CAN I/O Slave Bus Controller

Name: B&R X20BC0073 CAN I/O Slave Bus Controller
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20BC0073
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20BC0073

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Controller Type:	CAN I/O Bus Controller
Fieldbus Role:	CAN I/O Slave	Connector:	5-pin Male Multipoint Connector
Maximum Transfer Rate:	1 Mbit/s	Maximum Network Distance:	1000 M
X2X Link Cycle:	Fixed At 1 Ms	Terminating Resistor:	Integrated
Maximum Logic I/O Modules:	43	Maximum Analog Modules:	16 Within The 43-module Total
Electrical Isolation:	CAN I/O Isolated From I/O	Bus Power Consumption:	1.5 W
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical	Protection Rating:	IP20
Module Pitch:	37.5 Mm	Required Components:	X20BB80, X20PS9400 Or X20PS9402, X20TB12 And TB2105

Product Family:	X20 System
Controller Type:	CAN I/O Bus Controller
Fieldbus Role:	CAN I/O Slave
Connector:	5-pin Male Multipoint Connector
Maximum Transfer Rate:	1 Mbit/s
Maximum Network Distance:	1000 M
X2X Link Cycle:	Fixed At 1 Ms
Terminating Resistor:	Integrated
Maximum Logic I/O Modules:	43
Maximum Analog Modules:	16 Within The 43-module Total
Electrical Isolation:	CAN I/O Isolated From I/O
Bus Power Consumption:	1.5 W
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20
Module Pitch:	37.5 Mm
Required Components:	X20BB80, X20PS9400 Or X20PS9402, X20TB12 And TB2105

Description

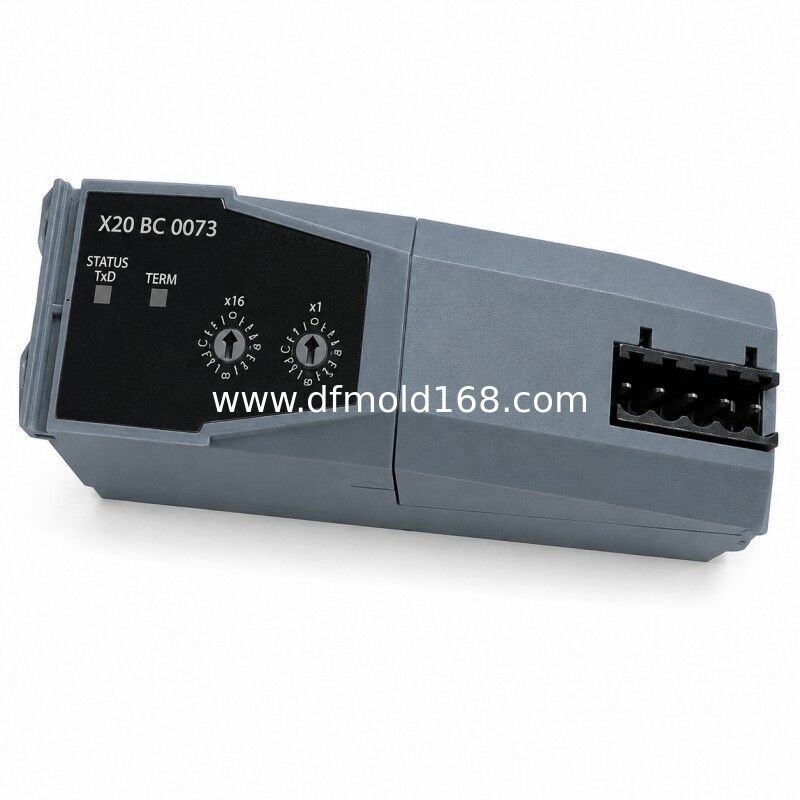

B&R X20BC0073 CAN I/O Slave Bus Controller

The B&R X20BC0073 connects X2X Link I/O nodes to a CAN I/O network. The controller supports automatic firmware updates through the fieldbus, integrated Automation Studio access and a fixed 1 ms X2X Link cycle.

This model differs from the CANopen-based X20BC0043-10. X20BC0073 uses B&R CAN I/O and is intended for compatible B&R system architectures. It supports up to 43 logic I/O modules, including a maximum of 16 analog modules.

Key Features

CAN I/O slave interface
Maximum 1 Mbit/s transfer rate
Integrated terminating resistor
Fixed 1 ms X2X Link cycle
Automatic firmware updates
Supports up to 43 logic I/O modules

Typical Applications

B&R CAN I/O systems
Compact machine networks
Distributed sensor and actuator stations
Machine retrofit projects
Existing CAN I/O installations

FAQ

Q: Is CAN I/O the same as CANopen?

A: No. Both use CAN physical communication, but CAN I/O and CANopen are different higher-level protocols.

Q: How many modules can be connected?

A: Up to 43 logic I/O modules can be connected, with no more than 16 analog modules within that total.

Q: Does the controller include a CAN connector?

A: A compatible five-pin TB2105 terminal must be ordered separately.
