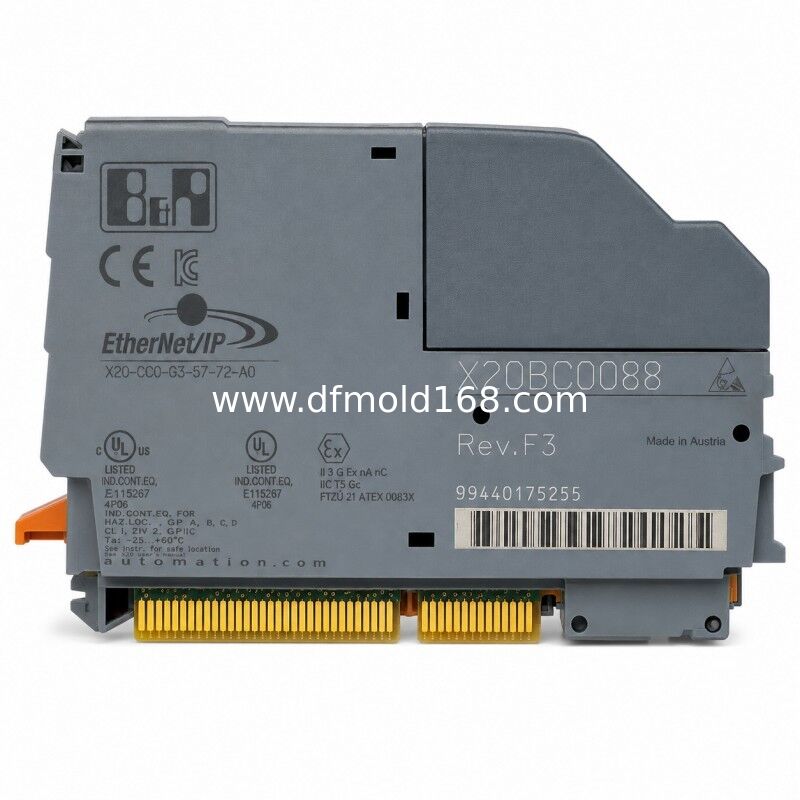

B&R X20BC0088 EtherNet/IP Adapter Bus Controller

Name: B&R X20BC0088 EtherNet/IP Adapter Bus Controller
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20BC0088
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20BC0088

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Controller Type:	Industrial Ethernet Bus Controller
Fieldbus Role:	EtherNet/IP Adapter	Ethernet Interface:	2 Shielded RJ45 Ports With Integrated Switch
Physical Layer:	10BASE-T And 100BASE-TX	Transfer Rate:	10/100 Mbit/s
Minimum Fieldbus Cycle:	1 Ms	X2X Link Cycle:	500 µs
Configurable I/O Cycle:	0.5 To 4 Ms	Network Configuration:	DHCP Supported
Web Interface:	Integrated	Electrical Isolation:	Fieldbus Isolated From Bus And I/O
Bus Power Consumption:	2 W	Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20	Module Pitch:	37.5 Mm
Required Components:	X20BB80, X20PS9400 Or X20PS9402 And X20TB12

Product Family:	X20 System
Controller Type:	Industrial Ethernet Bus Controller
Fieldbus Role:	EtherNet/IP Adapter
Ethernet Interface:	2 Shielded RJ45 Ports With Integrated Switch
Physical Layer:	10BASE-T And 100BASE-TX
Transfer Rate:	10/100 Mbit/s
Minimum Fieldbus Cycle:	1 Ms
X2X Link Cycle:	500 µs
Configurable I/O Cycle:	0.5 To 4 Ms
Network Configuration:	DHCP Supported
Web Interface:	Integrated
Electrical Isolation:	Fieldbus Isolated From Bus And I/O
Bus Power Consumption:	2 W
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20
Module Pitch:	37.5 Mm
Required Components:	X20BB80, X20PS9400 Or X20PS9402 And X20TB12

Description

B&R X20BC0088 EtherNet/IP Adapter Bus Controller

The B&R X20BC0088 integrates X20 I/O stations into an EtherNet/IP network as an adapter device. It combines dual external RJ45 connections, an integrated switch, DHCP support and a web interface for configuration and diagnostics.

Unlike X20BC0087, which communicates through Modbus TCP or UDP, X20BC0088 exchanges cyclic I/O data through EtherNet/IP. Its 1 ms minimum fieldbus cycle makes it suitable for fast distributed machine I/O, while advanced multifunction-module configurations can be transferred through the configuration assembly.

Key Features

EtherNet/IP adapter functionality
Integrated Ethernet switch
Dual shielded RJ45 ports
1 ms minimum fieldbus cycle
Configurable I/O update cycle
DHCP and web-interface support

Typical Applications

EtherNet/IP remote I/O
Packaging and assembly cells
Conveyor-control systems
Multi-protocol production equipment
Distributed machine automation

FAQ

Q: Does X20BC0088 operate as an EtherNet/IP scanner?

A: No. It operates as an adapter and requires a scanner or master on the network.

Q: What is the difference from X20BC0087?

A: X20BC0088 uses EtherNet/IP, while X20BC0087 supports Modbus TCP and Modbus UDP.

Q: Can modules be configured through the network?

A: Yes. Automatic I/O configuration is supported, and additional configuration data can be transferred using a configuration assembly.
