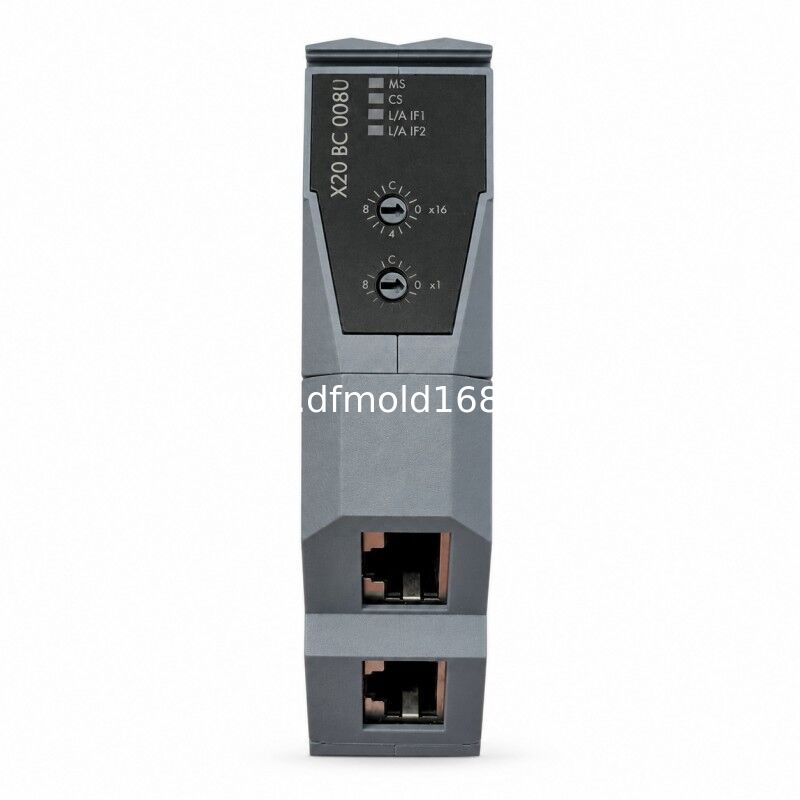

B&R X20BC008U OPC UA Server Bus Controller

Name: B&R X20BC008U OPC UA Server Bus Controller
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20BC008U
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20BC008U

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Controller Type:	OPC UA Bus Controller
Protocol Role:	OPC UA Server	Ethernet Interface:	2 Shielded RJ45 Ports With Integrated Switch
Physical Layer:	100BASE-TX	Transfer Rate:	100 Mbit/s
Minimum OPC UA Cycle:	10 Ms	X2X Link Cycle:	2 Ms
Maximum Input Data:	1440 Bytes	Maximum Output Data:	1440 Bytes
Synchronization Between Buses:	Supported	Electrical Isolation:	OPC UA Isolated From Bus And I/O
Bus Power Consumption:	2.5 W	Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20	Module Pitch:	37.5 Mm
Required Components:	X20BB80, X20PS9400 Or X20PS9402 And X20TB12

Product Family:	X20 System
Controller Type:	OPC UA Bus Controller
Protocol Role:	OPC UA Server
Ethernet Interface:	2 Shielded RJ45 Ports With Integrated Switch
Physical Layer:	100BASE-TX
Transfer Rate:	100 Mbit/s
Minimum OPC UA Cycle:	10 Ms
X2X Link Cycle:	2 Ms
Maximum Input Data:	1440 Bytes
Maximum Output Data:	1440 Bytes
Synchronization Between Buses:	Supported
Electrical Isolation:	OPC UA Isolated From Bus And I/O
Bus Power Consumption:	2.5 W
Operating Temperature:	-25 To 60°C Horizontal; -25 To 50°C Vertical
Protection Rating:	IP20
Module Pitch:	37.5 Mm
Required Components:	X20BB80, X20PS9400 Or X20PS9402 And X20TB12

Description

B&R X20BC008U OPC UA Server Bus Controller

The B&R X20BC008U provides direct OPC UA server access to connected X20 I/O modules. Compatible OPC UA clients can read or write I/O data without requiring a traditional fieldbus master dedicated to the remote station.

The controller provides a 10 ms minimum communication cycle, up to 1440 bytes of input and output data, and an integrated web page for firmware updates. It is positioned for interoperable data access and IIoT integration rather than sub-millisecond real-time control.

Key Features

Integrated OPC UA server
Read and write access for OPC UA clients
100 Mbit/s Ethernet
Dual RJ45 ports with integrated switch
Up to 1440 bytes in each data direction
Runtime OPC UA and module diagnostics

Typical Applications

IIoT data acquisition
Edge and supervisory systems
Process-monitoring stations
Protocol-independent remote I/O
Production-data collection

FAQ

Q: Does X20BC008U require an OPC UA master?

A: It operates as an OPC UA server. A compatible OPC UA client is used to access the connected I/O data.

Q: Is it suitable for very fast motion control?

A: It is designed for OPC UA interoperability with a 10 ms minimum cycle. Faster deterministic applications should use an appropriate real-time fieldbus controller.

Q: Can firmware be updated through a web page?

A: Yes. An integrated web page is provided for firmware updates.
