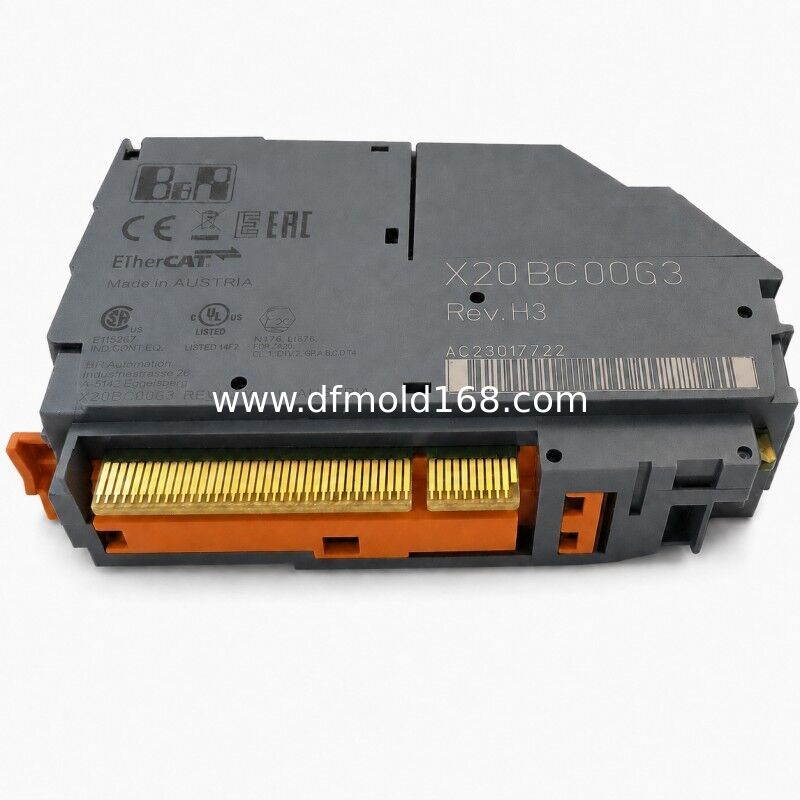

B&R X20BC00G3 EtherCAT Slave Bus Controller

Name: B&R X20BC00G3 EtherCAT Slave Bus Controller
Brand: Dengfeng (Zhaoqing) Trading Co., Ltd
SKU: X20BC00G3
Availability: InStock

Product Details

Place of Origin: Austria

Brand Name: B&R

Model Number: X20BC00G3

Payment & Shipping Terms

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Family:	X20 System	Controller Type:	EtherCAT Bus Controller
Fieldbus Role:	EtherCAT Slave	Ethernet Interface:	2 Shielded RJ45 Ports
Physical Layer:	100BASE-TX	Transfer Rate:	100 Mbit/s
Minimum Fieldbus Cycle:	200 µs	X2X Link Cycle:	200 µs
Configurable I/O Cycle:	0.2 To 4 Ms	Hub Propagation Delay:	750 Ns
Synchronization Between Buses:	Supported	Electrical Isolation:	EtherCAT Isolated From Bus And I/O
Bus Power Consumption:	1.68 W	Operating Temperature:	0 To 55°C Horizontal; 0 To 50°C Vertical
Storage Temperature:	-25 To 70°C	Protection Rating:	IP20
Module Pitch:	37.5 Mm	Required Components:	X20BB80, X20PS9400 Or X20PS9402 And X20TB12

Product Family:	X20 System
Controller Type:	EtherCAT Bus Controller
Fieldbus Role:	EtherCAT Slave
Ethernet Interface:	2 Shielded RJ45 Ports
Physical Layer:	100BASE-TX
Transfer Rate:	100 Mbit/s
Minimum Fieldbus Cycle:	200 µs
X2X Link Cycle:	200 µs
Configurable I/O Cycle:	0.2 To 4 Ms
Hub Propagation Delay:	750 Ns
Synchronization Between Buses:	Supported
Electrical Isolation:	EtherCAT Isolated From Bus And I/O
Bus Power Consumption:	1.68 W
Operating Temperature:	0 To 55°C Horizontal; 0 To 50°C Vertical
Storage Temperature:	-25 To 70°C
Protection Rating:	IP20
Module Pitch:	37.5 Mm
Required Components:	X20BB80, X20PS9400 Or X20PS9402 And X20TB12

Description

B&R X20BC00G3 EtherCAT Slave Bus Controller

The B&R X20BC00G3 connects X20 and X2X Link I/O modules to EtherCAT as a slave station. Its 200 µs minimum fieldbus and X2X Link cycles support synchronized, high-speed I/O exchange.

The module supports automatic I/O configuration, firmware updates through FoE and modular device configuration through CoE. Compared with X20BC00E3, it provides a faster minimum cycle but has a narrower specified operating-temperature range starting at 0°C.

Key Features

EtherCAT slave interface
200 µs minimum fieldbus cycle
Synchronized 200 µs X2X Link cycle
FoE firmware-update support
CoE modular configuration
Configurable 0.2 to 4 ms I/O cycle

Typical Applications

High-speed EtherCAT machinery
Synchronized distributed I/O
Packaging and converting equipment
Printing and electronic assembly
Deterministic production networks

FAQ

Q: Is X20BC00G3 an EtherCAT master?

A: No. It operates as an EtherCAT slave and requires a compatible EtherCAT master.

Q: Does it support fieldbus-to-X2X synchronization?

A: Yes. Synchronization is supported, with minimum cycles of 200 µs on both networks.

Q: Can it operate below 0°C?

A: The official operating-temperature specification starts at 0°C. It should not be treated as equivalent to X20 controllers rated for -25°C operation.
