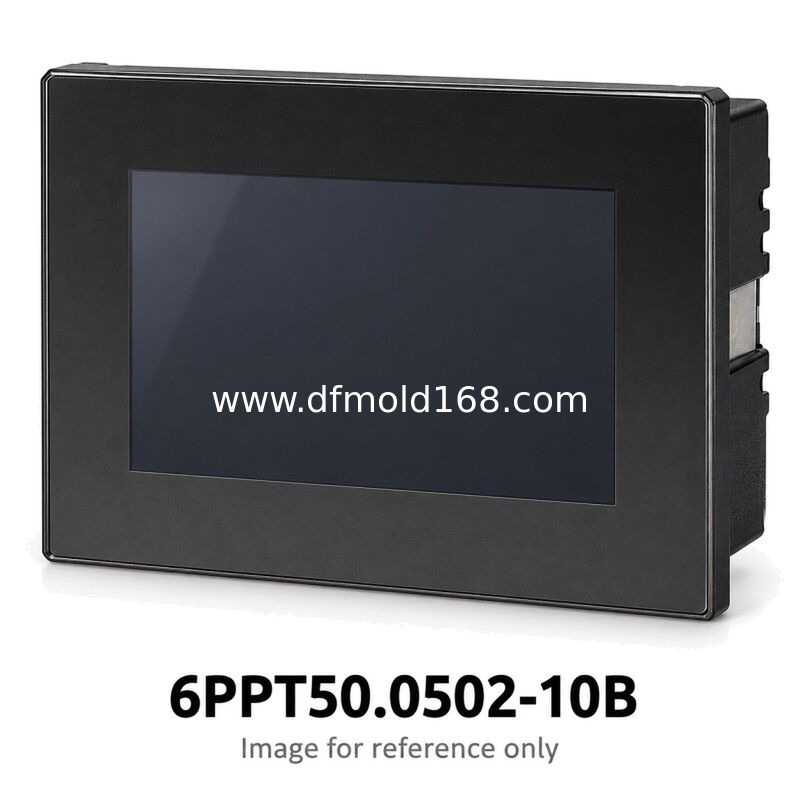

6PPT50.0502-10B 5in Glass 1 LAN HMI

6PPT50.0502-10B is a Power Panel T50 embedded visualization terminal. This 5-inch terminal is useful for evaluating a compact host-based operator interface close to a machine station. It can provide local access to operating values and commands while the control and visualization services remain on the connected system. Touch-target size needs particular attention when adapting an existing project to this small display.

Key Features and Typical Applications

• 5-inch 800 x 480 display
• capacitive multi-touch

1 x Gigabit Ethernet. Small local control interface is the main selection focus. Typical uses include machine operation, status viewing and alarm acknowledgement when implemented by the connected visualization application.

Supply and Quotation Information

Send us 6PPT50.0502-10B, the required quantity and delivery destination for a current quotation. For a replacement, attach clear label and connector photographs. The offer should confirm the exact reference, condition, included accessories, price validity and delivery terms. Availability and lead time are confirmed for the requested quantity.

Compatibility and Selection Note

Compare the complete model, 800 x 480 display, mounting dimensions, touch interface, network wiring and terminal software with the installed unit. Back up host connection and terminal settings before replacement. The browser or VNC connection needs a compatible visualization host; a matching screen size alone does not establish interchangeability.

Buying and Replacement FAQ

Q1. How do I get a price for 6PPT50.0502-10B?

Send the complete reference 6PPT50.0502-10B, quantity, destination and required date. For a spare, include the installed label and specify whether an exact match is mandatory.

Q2. What must the quotation include?

Ask for the offered model, condition, accessory scope, price validity and shipping terms. Confirm whether mounting hardware and connectors are included; do not assume a complete machine installation kit.

Q3. Is a 7-inch 800 x 480 unit a direct replacement?

The display resolution may match, but the physical panel and viewing area differ. Confirm the cutout, front dimensions and touch layout before accepting a different diagonal.

Q4. Which network details are needed before replacement?

This model specifies 1 x gigabit ethernet. Provide the current IP settings, host address and browser or VNC connection details. Confirm compatibility with the machine visualization before approving the offered unit.

Q5. Does the panel include the machine application?

Do not assume the machine project, host software or licenses are included. Confirm access to the visualization host and a backup of the terminal settings. Quote application work separately if it is required.

Q6. How are availability and delivery confirmed?

Provide quantity and the required arrival date. Obtain a written confirmation of availability, dispatch timing and transport terms for the exact model. A lead time for another product family does not apply automatically.
