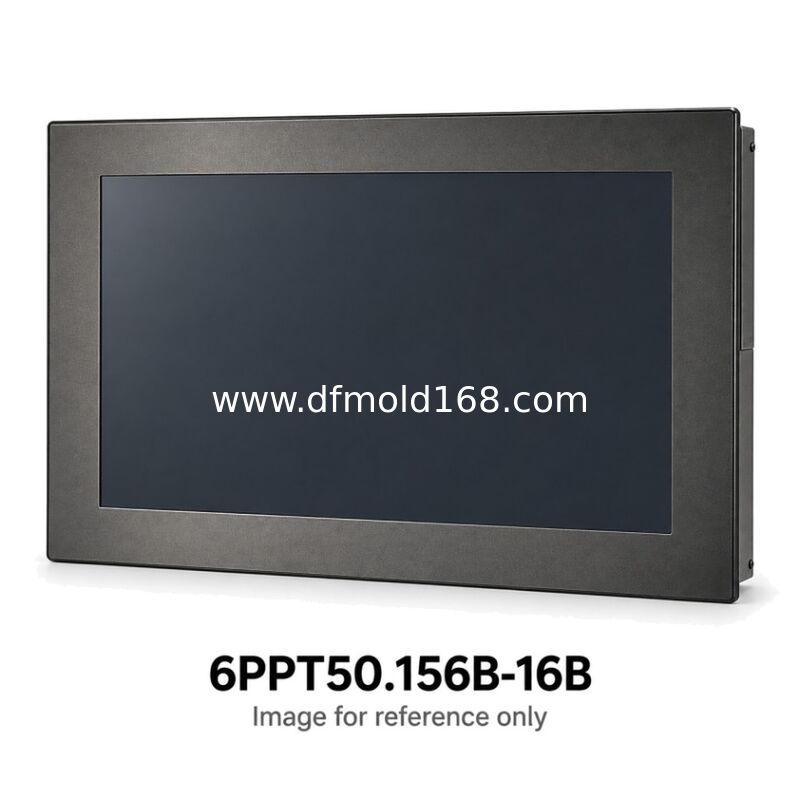

6PPT50.156B-16B 15.6in Glass Dual LAN HMI

6PPT50.156B-16B is a Power Panel T50 embedded visualization terminal. This model is intended for buyers evaluating a wide terminal with ordinary glass and a two-port Ethernet arrangement. It can support host-based production overviews, recipe navigation and alarm handling. Keep both the 16B suffix and the existing visualization configuration visible in the purchase request to distinguish it from single-port and anti-glare variants.

Key Features and Typical Applications

• 15.6-inch 1366 x 768 display
• capacitive multi-touch
• 2 x Gigabit Ethernet

integrated switch. Wide switched-network interface is the main selection focus. Typical uses include machine operation, status viewing and alarm acknowledgement when implemented by the connected visualization application.

Supply and Quotation Information

Send us 6PPT50.156B-16B, the required quantity and delivery destination for a current quotation. For a replacement, attach clear label and connector photographs. The offer should confirm the exact reference, condition, included accessories, price validity and delivery terms. Availability and lead time are confirmed for the requested quantity.

Compatibility and Selection Note

Compare the complete model, 1366 x 768 display, mounting dimensions, touch interface, network wiring and terminal software with the installed unit. Back up host connection and terminal settings before replacement. The browser or VNC connection needs a compatible visualization host; a matching screen size alone does not establish interchangeability.

Buying and Replacement FAQ

Q1. How do I get a price for 6PPT50.156B-16B?

Send the complete reference 6PPT50.156B-16B, quantity, destination and required date. For a spare, include the installed label and specify whether an exact match is mandatory.

Q2. What must the quotation include?

Ask for the offered model, condition, accessory scope, price validity and shipping terms. Confirm whether mounting hardware and connectors are included; do not assume a complete machine installation kit.

Q3. Can 6PPT50.156B-16A be supplied as an exact match?

It has a different glass finish. The 16A version uses anti-glare glass; this 16B reference uses ordinary glass. Ask for any proposed deviation to be stated in the quotation.

Q4. Which network details are needed before replacement?

This model specifies 2 x gigabit ethernet; integrated switch. Provide the current IP settings, host address and browser or VNC connection details. Confirm compatibility with the machine visualization before approving the offered unit.

Q5. Does the panel include the machine application?

Do not assume the machine project, host software or licenses are included. Confirm access to the visualization host and a backup of the terminal settings. Quote application work separately if it is required.

Q6. How are availability and delivery confirmed?

Provide quantity and the required arrival date. Obtain a written confirmation of availability, dispatch timing and transport terms for the exact model. A lead time for another product family does not apply automatically.
