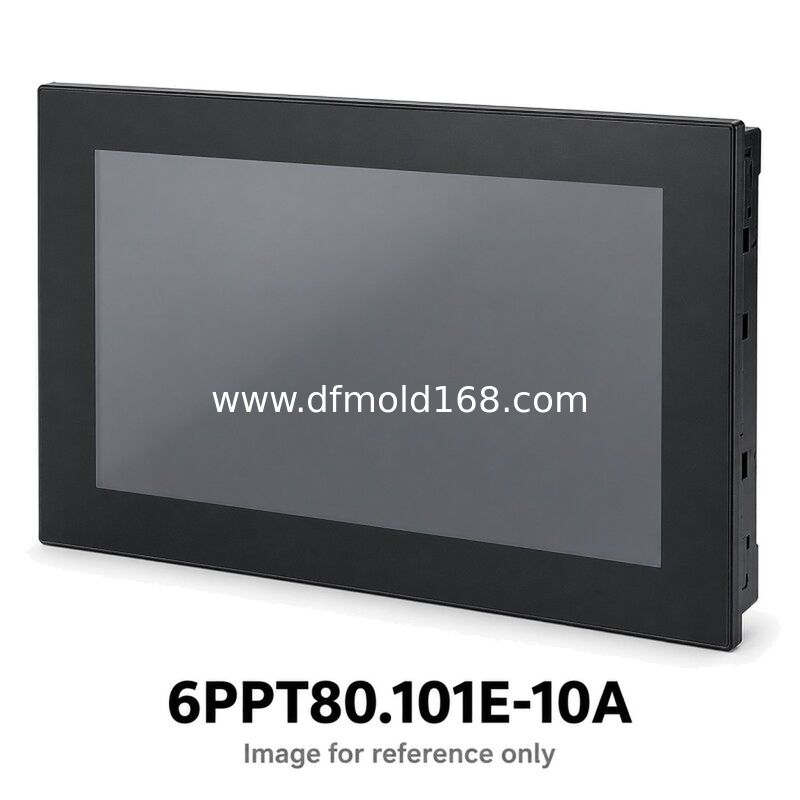

6PPT80.101E-10A 10.1in Anti-Glare 1 LAN HMI

6PPT80.101E-10A is a Power Panel T80 embedded visualization terminal. This T80 terminal provides a 10.1-inch host-based interface with an anti-glare surface. It can be evaluated for machine visualization where the installed terminal platform, screen resolution and surface finish need to be retained together. Its embedded terminal role should remain distinct from a general-purpose computer specification.

Key Features and Typical Applications

• 10.1-inch 1280 x 800 display
• capacitive multi-touch

1 x Gigabit Ethernet. Atom-based anti-glare HMI is the main selection focus. Typical uses include machine operation, status viewing and alarm acknowledgement when implemented by the connected visualization application.

Supply and Quotation Information

Send us 6PPT80.101E-10A, the required quantity and delivery destination for a current quotation. For a replacement, attach clear label and connector photographs. The offer should confirm the exact reference, condition, included accessories, price validity and delivery terms. Availability and lead time are confirmed for the requested quantity.

Compatibility and Selection Note

Compare the complete model, 1280 x 800 display, mounting dimensions, touch interface, network wiring and terminal software with the installed unit. Back up host connection and terminal settings before replacement. The browser or VNC connection needs a compatible visualization host; a matching screen size alone does not establish interchangeability.

Buying and Replacement FAQ

Q1. How do I get a price for 6PPT80.101E-10A?

Send the complete reference 6PPT80.101E-10A, quantity, destination and required date. For a spare, include the installed label and specify whether an exact match is mandatory.

Q2. What must the quotation include?

Ask for the offered model, condition, accessory scope, price validity and shipping terms. Confirm whether mounting hardware and connectors are included; do not assume a complete machine installation kit.

Q3. Does the Intel processor mean Windows software is included?

No. Specify this as a Power Panel T80 terminal with its embedded browser and VNC functions. Do not assume a Windows license or support for installing arbitrary PC applications.

Q4. Which network details are needed before replacement?

This model specifies 1 x gigabit ethernet. Provide the current IP settings, host address and browser or VNC connection details. Confirm compatibility with the machine visualization before approving the offered unit.

Q5. Does the panel include the machine application?

Do not assume the machine project, host software or licenses are included. Confirm access to the visualization host and a backup of the terminal settings. Quote application work separately if it is required.

Q6. How are availability and delivery confirmed?

Provide quantity and the required arrival date. Obtain a written confirmation of availability, dispatch timing and transport terms for the exact model. A lead time for another product family does not apply automatically.
